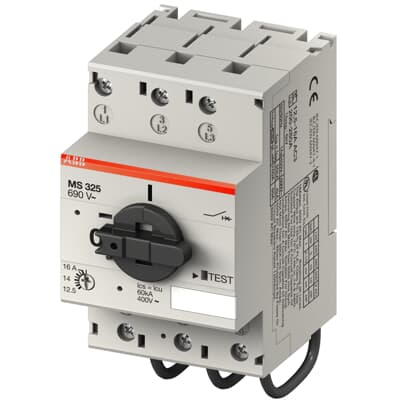

ABB MS325-16 - Motor Starter 16A 690V AC
ABB MS325-16 - Motor Starter 16A 690V AC

ABB MS325-16 - Motor Starter 16A 690V AC

ABB
Price
Save $-59.55
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
ABB MS325-16 Motor Control is a compact motor starter designed for overload and short-circuit protection of three-phase induction motors. It is rated for 16 amps at 690 volts AC, with a breaking capacity of up to 100 kA at 400 V AC. The unit features a robust thermoplastic enclosure with screw-type terminals, weighing 5 lb, and is built for panel mounting. It complies with IEC 60947-4-1 and UL 508 standards, ensuring reliable performance in industrial environments. Typical applications include conveyor systems, pumps, fans, and compressors in manufacturing and process industries.

Key Features & Specifications
  • Type: Manual motor starter, thermal-magnetic, screw terminals
  • Voltage Rating: 690 V AC
  • Current Rating: 16 A
  • Dimensions: 90 mm x 45 mm x 85 mm
  • Standards: IEC 60947-4-1, UL 508
  • Applications: Conveyors, pumps, fans, compressors
  • Switch Type: Rotary
  • Configuration: 3-pole
  • Coil Voltage Maximum: Not applicable (manual)
  • Temp Rating: -25°C to 60°C
  • Shipping Dimensions: 100 mm x 55 mm x 95 mm
  • Phase: 3
  • Voltage: 690 V AC
  • Amperage: 16 A
  • AIC rating: 100 kA at 400 V AC
  • Connection: Screw terminals
  • Poles: 3
  • Protection: Overload, short-circuit
  • Functions: Motor protection, isolation
  • Frame Size: MS325
  • Trip Type: Thermal-magnetic
  • Panel Type: Open
  • Breaker Type: Manual motor starter
  • Control Voltage Minimum: Not applicable
  • Control Voltage Maximum: Not applicable
  • MCM Size: Not applicable
  • Metal Type: Not applicable
  • Panel Style: Not applicable
  • Bus Type: Not applicable
  • Fuse Class: Not applicable
  • Insulation Temperature: 60°C
  • Inductance: Not specified
  • Impedance: Not specified
  • Barrels: Not applicable
  • Class Rating: Not applicable
  • Diameter: Not applicable
  • Velocity: Not applicable
  • Clip Center: Not applicable
  • Clas: Not applicable
  • Mounting: Panel
  • Hz: 50/60
  • Coil Material: Not applicable
  • Horse Power: 7.5 HP at 460 V
  • Aux Contacts: 1 NO + 1 NC
  • CPT: Not included
  • Full Load Amps: 16 A
  • Dist Voltage: Not applicable
  • Bucket Size: Not applicable
  • Bucket Style: Not applicable
  • Bucket Type: Not applicable
  • Full Load Amp Maximum: 16 A
  • Full Load Amp Minimum: 0.1 A
  • Enclosure: Open
  • Relay Style: Thermal
  • Coil Voltage Minimum: Not applicable
  • Wire: 14 AWG to 4 AWG
  • Amperage Maximum: 16 A
  • Amperage Minimum: 0.1 A
  • Nema Rating: Not applicable
  • Switch Style: Rotary
  • Wire Size: 14 AWG to 4 AWG
  • Certification: CE, UL, CSA
  • Circuit Breaker Mounting Style: Panel
  • Terminal Connection: Screw
  • Frequency Rating: 50/60 Hz
  • Phase Connection: 3-phase
  • Standards: IEC 60947-4-1, UL 508
  • Compatible Frames: MS325
  • Installation Type: Fixed
  • Item QTY: 1
  • Nema Starter Size: Not applicable
  • Breaker Frame: MS325
  • Current Rating: 16 A
  • Reverse Standoff Voltage: Not applicable
  • Watts: Not specified
  • Peak Pulse Current: Not applicable
  • Breakdown Voltage (MIN VBR@IT ) (V): Not applicable
  • Breakdown Voltage (VBR@IT) (V): Not applicable
  • Polarity: Not applicable
  • Operating Temperature Maximum Celsius: 60°C
  • Max Clamp Voltage: Not applicable
  • On-State Current: Not applicable
