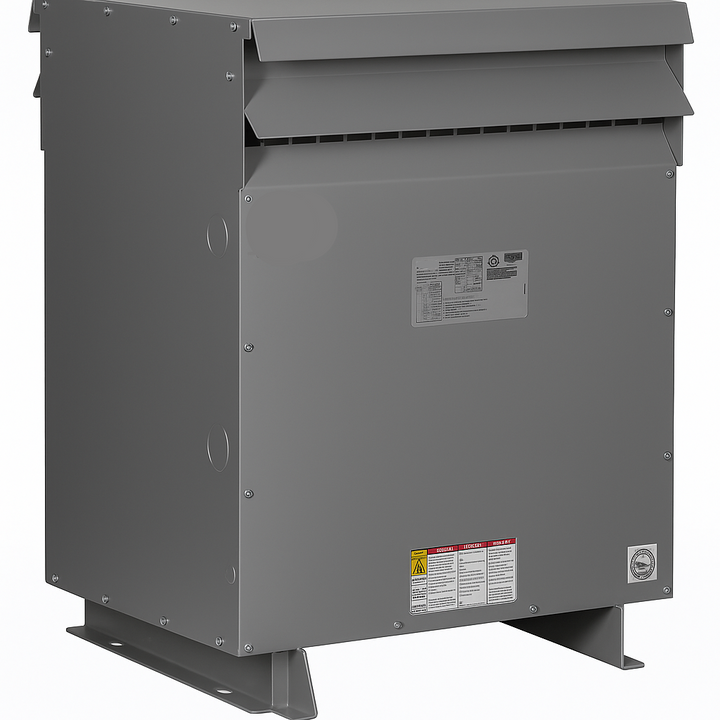

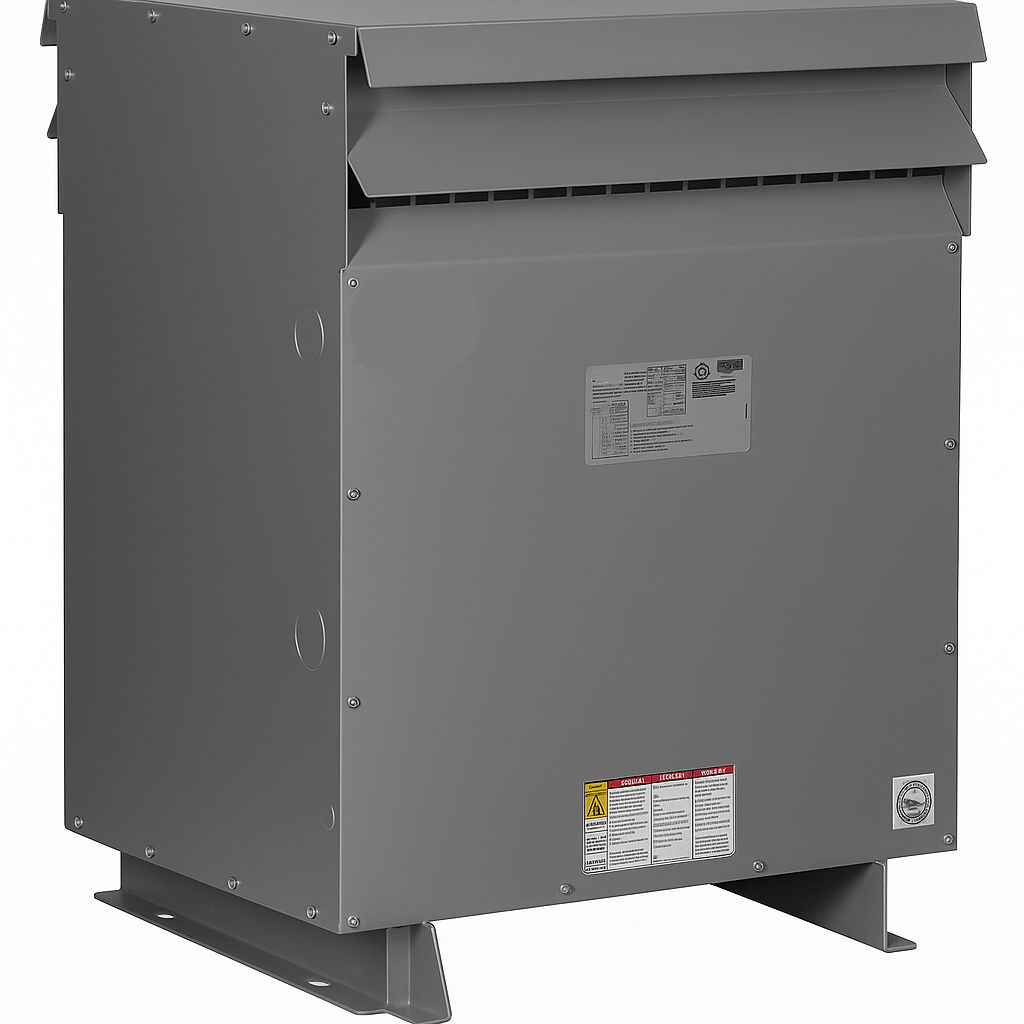

Hammond Power Solutions MG3A0750SPSAHC0 is a three-phase general duty transformer engineered for industrial power distribution and voltage transformation. It features a 4160V delta primary and 600Y/346V wye-n secondary configuration with a 750 kVA capacity, utilizing aluminum windings rated for a 150°C temperature rise and 220°C insulation class. The unit is housed in a Type 3R/IP24 enclosure with an ANSI 61 grey finish, measuring 82"H x 68"W x 47"D and weighing 4400 lb, operating at a 64 dBA sound level. It complies with CSA and UL certifications, as well as DOE 2016, NRCAN 2019, and NMX 2021 efficiency standards, while meeting IBC 2018 seismic requirements (Sds=2.0). Typical applications include industrial plants, manufacturing facilities, and commercial power systems requiring reliable voltage transformation with standard 4-7.5% impedance characteristics.

Key Features & Specifications
  • Type: Three-Phase General Duty Transformer
  • Primary Voltage: 4160V Delta
  • Secondary Voltage: 600Y/346V Wye-N
  • Capacity: 750 kVA
  • Frequency: 60 Hz
  • Material: Aluminum Windings
  • Temperature Rise: 150°C
  • Insulation Class: 220°C
  • Impedance: 4% - 7.5%
  • Enclosure: Type 3R / IP24
  • Dimensions: 82"H x 68"W x 47"D (2083mm x 1728mm x 1194mm)
  • Sound Level: 64 dBA
  • Efficiency Standards: DOE 2016, NRCAN 2019, NMX 2021
  • Seismic Compliance: IBC 2018 (Sds=2.0)
  • Weight: 4400 lb
  • Certification: CSA, UL
  • Phase: 3


Product Identification
  • UPC: 803423132897
