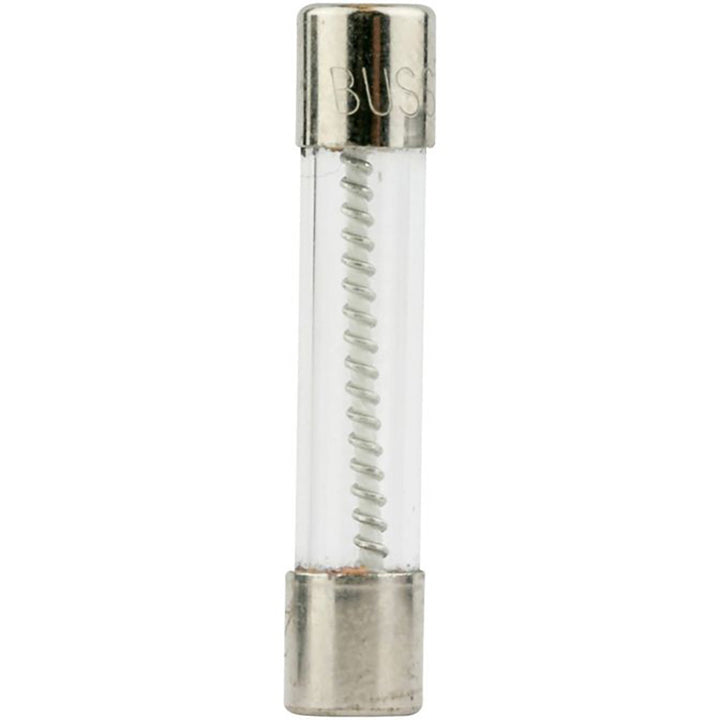

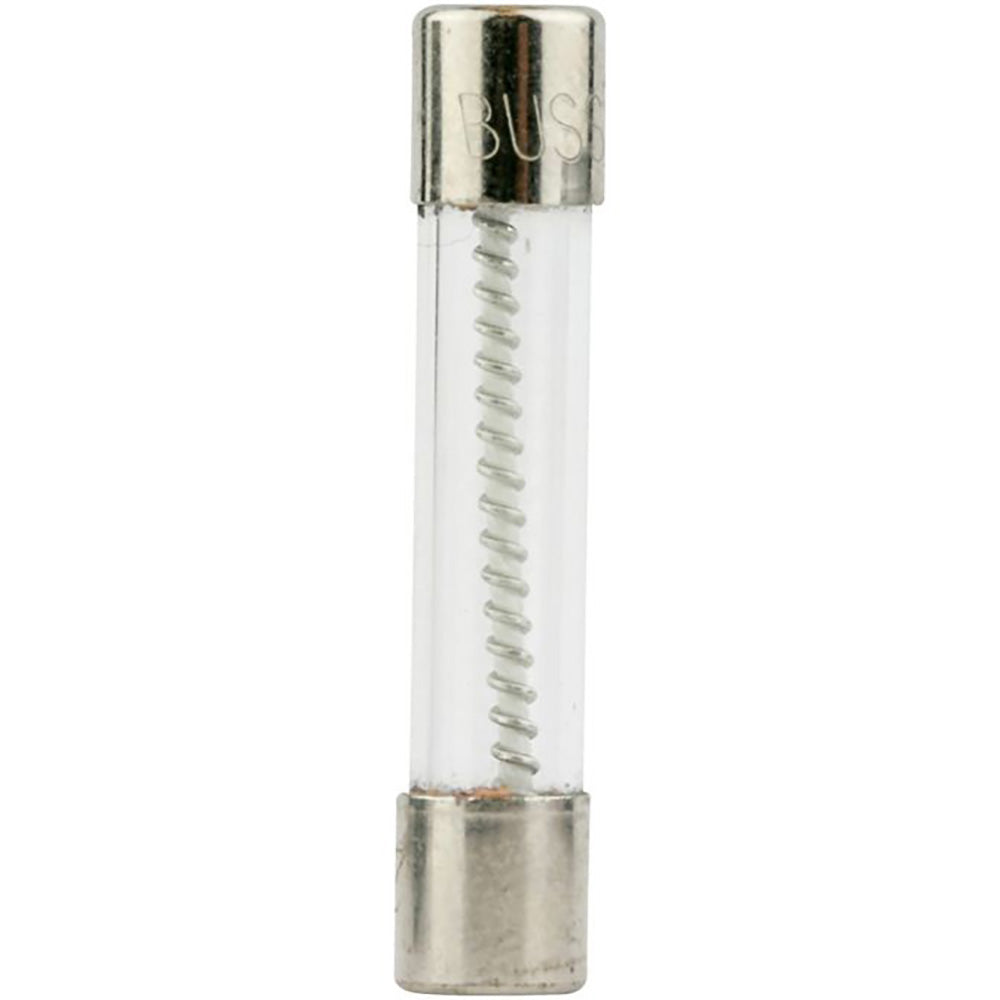

Bussmann MDL-6-R - Low Voltage Fuse 6A 250V (200kA AIC Rating)

The Bussmann MDL-6-R is a low-voltage current-limiting fuse designed to provide reliable circuit protection in industrial electrical systems. It features a 6A current rating and 250V voltage rating with an interrupting capacity of 200,000 amperes at 250V AC. The fuse utilizes a single-barrel ferrule connection design with a compact 0.81-inch diameter construction weighing 5.19 pounds. This MDL series fuse meets industry standards for current-limiting protection and is commonly applied in motor control centers, industrial control panels, and power distribution equipment where precise overcurrent protection is required.

Key Features & Specifications

• Type: Current-limiting low-voltage fuse with ferrule connection
• Voltage Rating: 250V AC
• Current Rating: 6A
• Dimensions: 0.81" diameter
• Standards: Industrial current-limiting protection
• Applications: Motor control centers, industrial control panels, power distribution
• AIC rating: 200,000A @ 250V AC
• Connection: Ferrule
• Barrels: 1
• Weight: 5.19 lb
• Family: MDL Series

Product Identification

• UPC: 05171265231
• GTIN: 00051712652315
