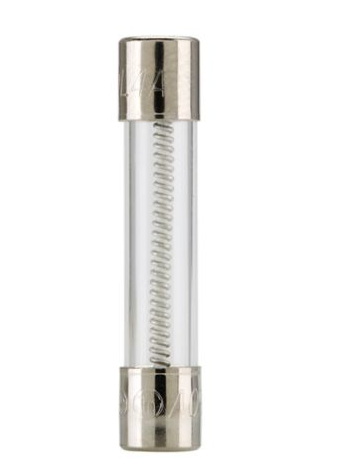

Eaton Bussmann MDL-3-2/10-R - Low Voltage Fuse 3A 250V (100kA AIC Rating)

The Bussmann MDL-3-2/10-R is a low voltage fuse designed for circuit protection in industrial applications. It features a 250V voltage rating and 3A current rating for reliable overcurrent protection. Constructed with a single-barrel ferrule connection and measuring 0.81 inches in diameter, this fuse provides compact yet robust performance. The device meets industry standards with an interrupting rating of 100,000 amperes at 250V AC, ensuring safe operation under fault conditions. Typical applications include protection of control circuits, transformers, and motor circuits in industrial settings.

Key Features & Specifications

• Type: Low voltage fuse with ferrule connection, single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 3A
• Dimensions: 0.81 inches diameter
• Standards: Industrial fuse standards
• Applications: Control circuits, transformers, motor circuit protection
• AIC rating: 100,000A @ 250V AC
• Connection: Ferrule
• Barrels: 1
• Weight: 5.19 lb
• Family: MDL Series

Product Identification

• UPC: 05171265222
• GTIN: 00051712652223
