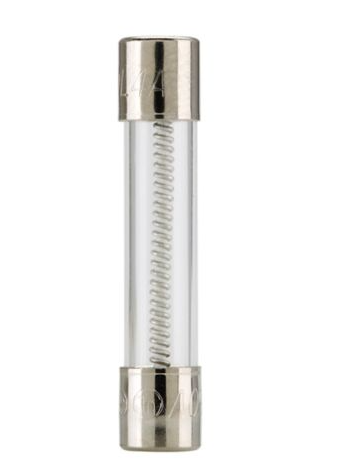

Bussmann MDL-1-8/10-R - Low Voltage Fuse 1A 250V (100kA AIC Rating)

The Bussmann MDL-1-8/10-R is a low-voltage fuse designed for circuit protection in industrial applications, providing reliable overcurrent protection for sensitive electrical equipment. It features a 250V voltage rating with a 1A current rating and offers an interrupting capacity of 100,000 amperes at 250V AC. Constructed with a single-barrel design and ferrule connections, this fuse measures 0.81 inches in diameter and weighs 5.19 pounds for robust industrial use. The MDL series fuse complies with industry standards for low-voltage protection systems and is typically employed in control circuits, motor branch circuits, and transformer protection applications where precise current limitation is required.

Key Features & Specifications

• Type: Low-voltage current-limiting fuse with ferrule connections
• Voltage Rating: 250V AC
• Current Rating: 1A
• Dimensions: 0.81" diameter
• Weight: 5.19 lb
• Standards: Industrial low-voltage fuse standards
• Applications: Control circuits, motor protection, transformer circuits
• AIC rating: 100,000A @ 250V AC
• Connection: Ferrule
• Barrels: 1
• Family: MDL Series

Product Identification

• UPC: 05171265205
• GTIN: 00051712652056
