Bussmann MDA-8/10-R - Low Voltage Fuse 10A 250V (35kA AIC Rating)

Bussmann
Price
Save $-9.19
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

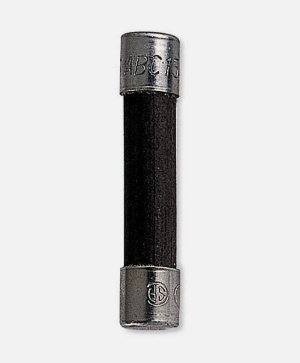

Bussmann MDA-8/10-R is a low voltage fuse designed for providing reliable circuit protection in industrial applications. It features a 250V voltage rating with a 10A current rating and 35kA interrupting capacity at 250V for effective short-circuit protection. The fuse employs a single-barrel ferrule connection design with compact 1-1/4 inch dimensions and 0.25 inch diameter construction. It complies with UL 248-14 standards and carries CE and CSA Class 1422-01 certifications for safety and performance. Typical applications include industrial control circuits, motor branch circuits, and electrical distribution systems requiring precise overcurrent protection.

Key Features & Specifications
  • Type: MDA series low voltage fuse with ferrule connection
  • Voltage Rating: 250V AC
  • Current Rating: 10A
  • Dimensions: 1-1/4 inch length, 0.25 inch diameter
  • Standards: UL 248-14 Guide JDYX, CE, CSA Certification Class 1422-01
  • Applications: Industrial control circuits, motor protection, electrical distribution
  • AIC rating: 35kA@250V
  • Connection: Ferrule
  • Barrels: 1
  • Weight: 1 lb
  • Certification: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX


Product Identification
  • UPC: 05171264540
  • GTIN: 00051712645409
