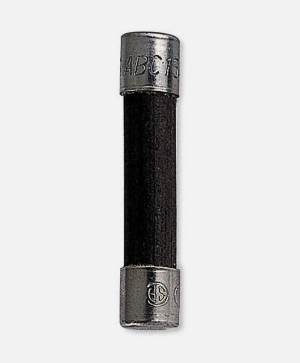

Bussmann MDA-5-R - Low Voltage Fuse 5A@250V (200A AIC Rating)

Bussmann MDA-5-R is a low-voltage fuse designed for circuit protection in industrial applications. It features a 5A current rating and 250V voltage rating with a 200A interrupting capacity at rated voltage. The fuse measures 1-1/4 inches in length with a 0.25-inch diameter ferrule connection and single-barrel construction. It complies with CE, CSA Certification Class 1422-01, and UL 248-14 Guide JDYX standards for safety and performance. Typical applications include protection of control circuits, transformers, and other electrical equipment requiring reliable overcurrent protection.

Key Features & Specifications

• Type: MDA series low-voltage fuse with ferrule connection, single barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 5A
• Dimensions: 1-1/4 inch length x 0.25 inch diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Applications: Control circuits, transformers, industrial electrical protection
• AIC rating: 200A@250V
• Connection: Ferrule
• Barrels: 1
• Weight: 1 lb
• Certification: CE, CSA, UL
• Family: MDA Series

Product Identification

• UPC: 05171264534
• GTIN: 00051712645348
