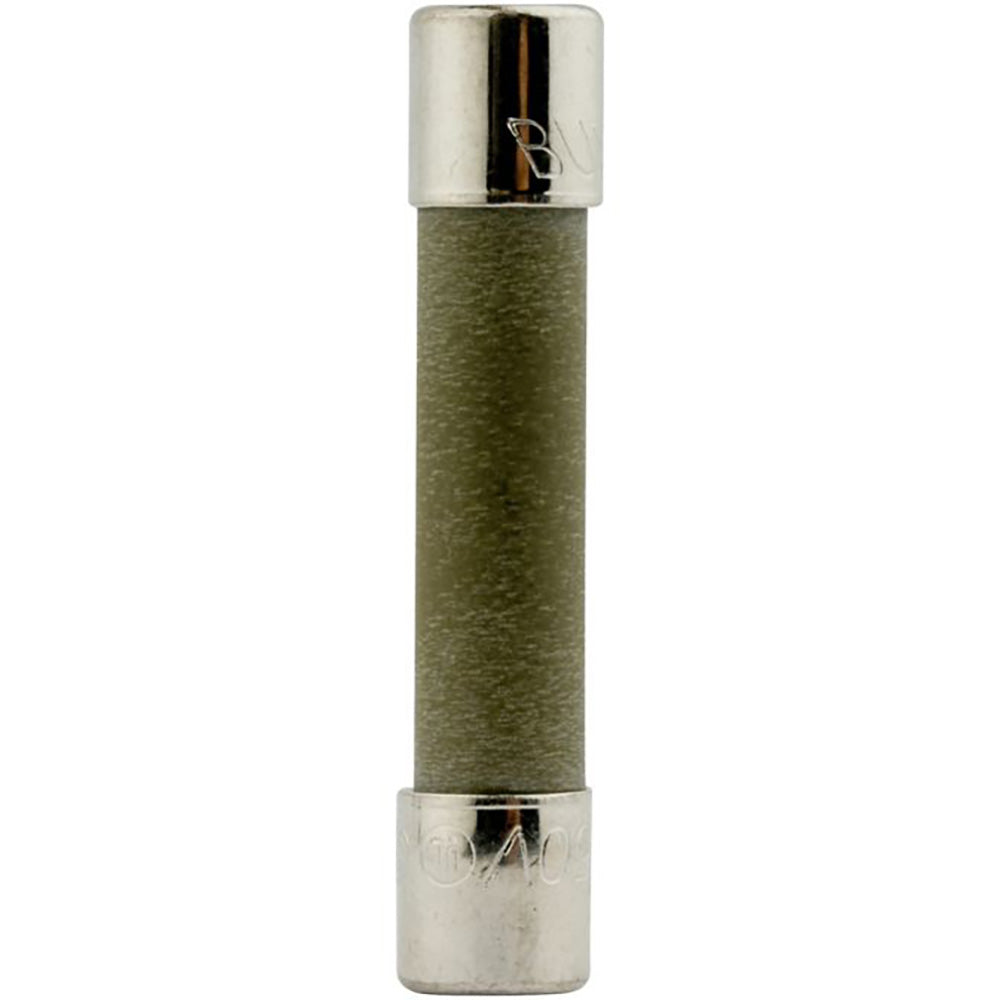

Bussmann MDA-3-R - Low Voltage Fuse 3A 250V (200A AIC Rating)

Bussmann MDA-3-R is a low voltage fuse designed for circuit protection in industrial applications. It features a 3A current rating and 250V voltage rating with an interrupting capacity of 200A at 250V. The fuse utilizes a single-barrel ferrule connection design with a 0.25-inch diameter and 1-1/4 inch length, constructed to meet rigorous industry standards. It carries CE, CSA Certification Class 1422-01, and UL 248-14 Guide JDYX certifications for reliable performance. Typical applications include protection of control circuits, instrumentation, and other sensitive electronic equipment in industrial environments.

Key Features & Specifications

• Type: MDA Series low voltage fuse with ferrule connection, single barrel design
• Voltage Rating: 250V AC/DC
• Current Rating: 3A
• Dimensions: 1-1/4 inch length, 0.25 inch diameter
• Standards: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Applications: Control circuits, instrumentation, industrial electronic protection
• AIC rating: 200A@250V
• Connection: Ferrule
• Barrels: 1
• Certification: CE, CSA Certification Class 1422-01, UL 248-14 Guide JDYX
• Weight: 1 lb

Product Identification

• UPC: 05171264526
• GTIN: 00051712645263
