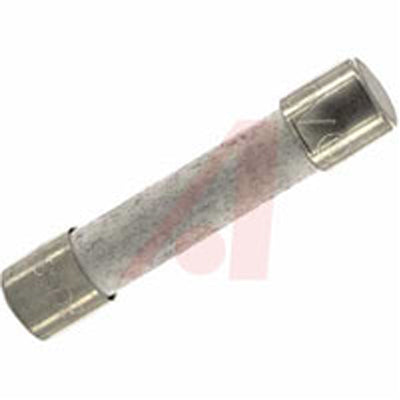

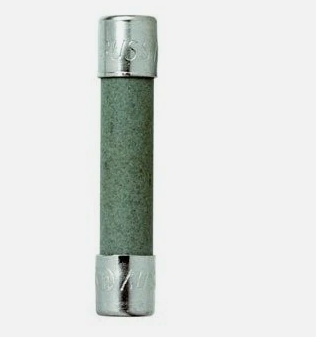

Bussmannn MDA-15-R - Ferrule Fuse 15A 250V (750kA AIC)

Bussmannn MDA-15-R is a low-voltage ferrule-type fuse designed for circuit protection in industrial applications. This 15A fuse features a 250V AC/DC voltage rating with a 750kA interrupting capacity at rated voltage, housed in a compact 1-1/4" cylindrical body with 0.25" diameter ferrule connections. Certified to UL 248-14 (JDYX) and CSA Class 1422-01 standards, the MDA series fuse provides reliable protection for motor circuits, control panels, and power distribution systems requiring high fault current interruption.

Key Features & Specifications

• Type: MDA series ferrule fuse, single barrel construction
• Voltage Rating: 250V AC/DC
• Current Rating: 15A
• Dimensions: 1-1/4" length x 0.25" diameter
• Weight: 1 lb
• Connection: Ferrule terminal
• AIC Rating: 750kA @ 250V
• Certification: UL 248-14 (JDYX), CSA 1422-01, CE
• Applications: Motor protection, industrial control panels, power distribution

Product Identification

• UPC: 05171264520
• GTIN: 00051712645201
