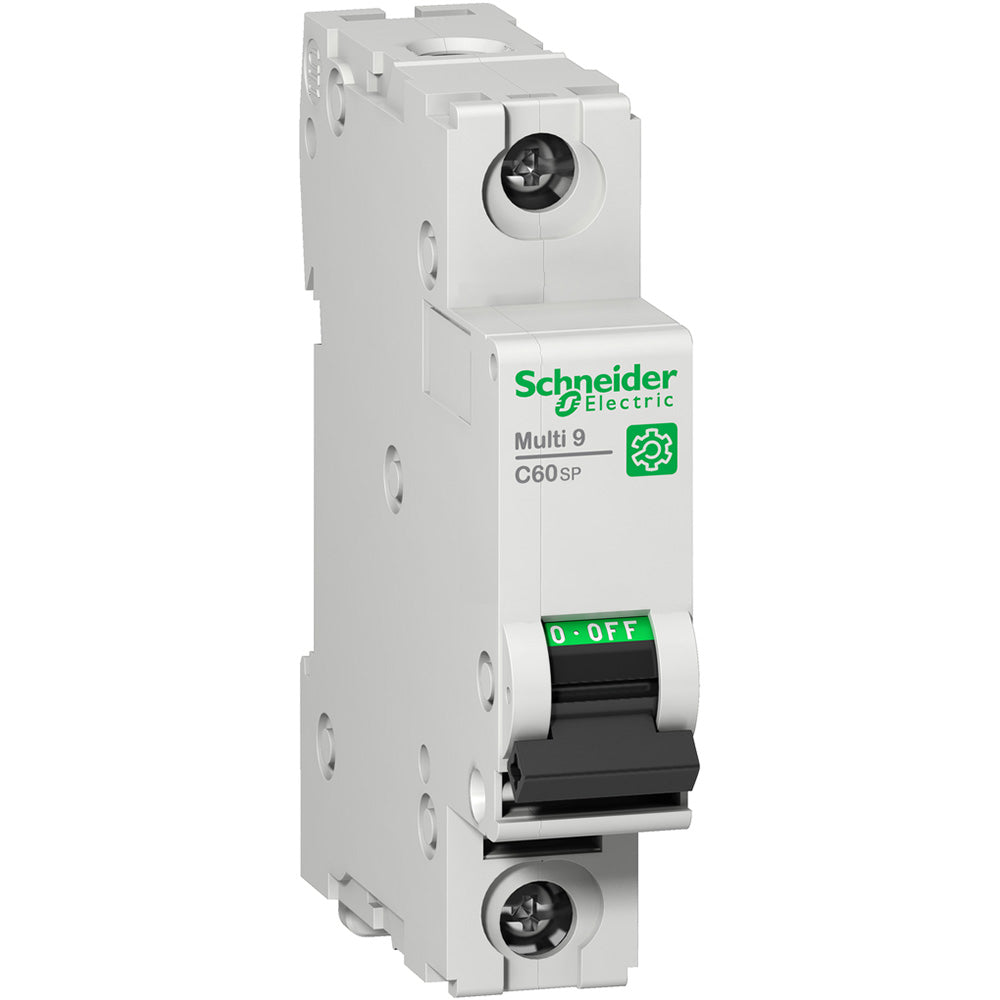

Schneider Electric M9F22102 - 2A 1-Pole Molded Case Breaker
Schneider Electric M9F22102 - 2A 1-Pole Molded Case Breaker

Schneider Electric M9F22102 - 2A 1-Pole Molded Case Breaker

Schneider Electric
Price
Save $11.79
/
Condition
  • Low stock - 1 item left
  • Backordered, shipping soon
Call for Price
The Schneider Electric M9F22102 is a single-pole molded case circuit breaker designed for overcurrent protection in industrial and commercial electrical systems. It operates at a rated voltage of 277V AC with a current rating of 2A, providing reliable fault interruption. The unit measures 3.2 in (81 mm) in height, 0.7 in (18 mm) in width, and 2.8 in (72 mm) in depth, weighing 0.254 lb, and is constructed with a compact thermoplastic housing for panel mounting. It complies with multiple international standards including CCC, CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077, and UR, ensuring broad regulatory acceptance. This breaker is suitable for branch circuit protection in control panels, lighting systems, and machinery requiring precise 2A overcurrent safeguarding.

Key Features & Specifications
  • Type: Molded case circuit breaker, single-pole, thermal-magnetic trip
  • Voltage Rating: 277V AC
  • Current Rating: 2A
  • Dimensions: 3.2 in (81 mm) x 0.7 in (18 mm) x 2.8 in (72 mm) (H x W x D)
  • Weight: 0.254 lb
  • Poles: 1
  • Certification: CCC, CSA C22.2 No 235, EN/IEC 60947-2, GB 14048.2, UL 1077, UR
  • Country of Origin: France
  • Frequency Rating: 50/60 Hz
  • Trip Type: Thermal-magnetic
  • Mounting Style: Panel mount
  • Terminal Connection: Screw clamp
  • Phase: Single-phase
  • AIC Rating: 10 kA at 277V AC
  • Frame Size: M9
  • Breaker Type: Miniature circuit breaker (MCB)
  • Operating Temperature: -25°C to 70°C
  • Insulation Voltage: 440V AC
  • Dielectric Strength: 2.5 kV for 1 minute
  • Pollution Degree: 3
  • Mechanical Life: 20,000 operations
  • Electrical Life: 10,000 operations
  • Protection: Overload and short-circuit
  • Functions: Circuit isolation and protection
  • Installation Type: Fixed
  • Item QTY: 1


Product Identification
  • UPC: 785901718864
  • GTIN: 03606481168269
