Siemens LXD62B600 - Molded Case Circuit Breaker 600A 600V (35kA AIC)
Siemens LXD62B600 - Molded Case Circuit Breaker 600A 600V (35kA AIC)

Siemens LXD62B600 - Molded Case Circuit Breaker 600A 600V (35kA AIC)

Siemens
Price
Save $7,892.87
/
Condition
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price

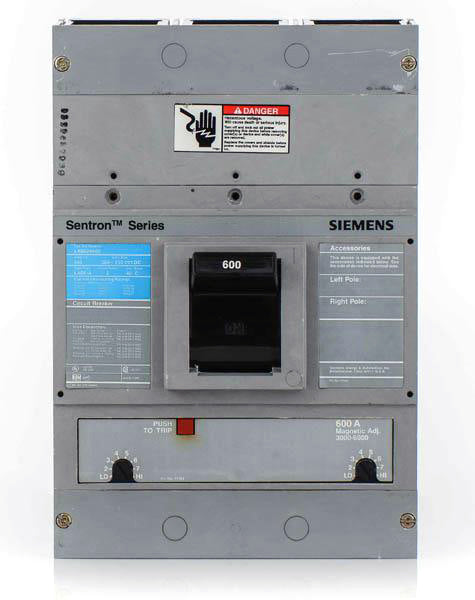

Siemens LXD62B600 is a molded case circuit breaker designed for providing reliable overcurrent and short-circuit protection in industrial power distribution systems. It features a 600V AC voltage rating and a 600A current rating, housed within a compact LD frame with bolt-on connections for secure installation. This UL-listed, thermal-magnetic protection device offers long-time and instantaneous (LI) tripping functions and a 35kA interrupting capacity at 480V AC, ensuring compliance with industry safety standards. Its robust construction, with an operating temperature range of -13°F to 158°F (-25°C to 70°C), makes it suitable for protecting feeders and branch circuits in commercial and industrial panelboards.

Key Features & Specifications
  • Type: Molded Case Circuit Breaker, Thermal-Magnetic Protection, Long-Time and Instantaneous (LI) Trip
  • Voltage Rating: 600V AC
  • Current Rating: 600A
  • Frame Size: LD Frame
  • Poles: 2
  • Phase: 1
  • Connection: Bolt-On
  • AIC Rating: 35kA @ 480V AC
  • Certification: UL Listed
  • Operating Temperature: -13°F to 158°F (-25°C to 70°C)
  • Dimensions: 8.661" x 12.992" x 6.696" (220mm x 330mm x 170mm)
  • Weight: 15.201 lb (6.9 kg)
  • Family: Sentron Series
  • Country of Origin: Mexico


Product Identification
  • UPC: 783643213739
  • GTIN: 00783643213739
