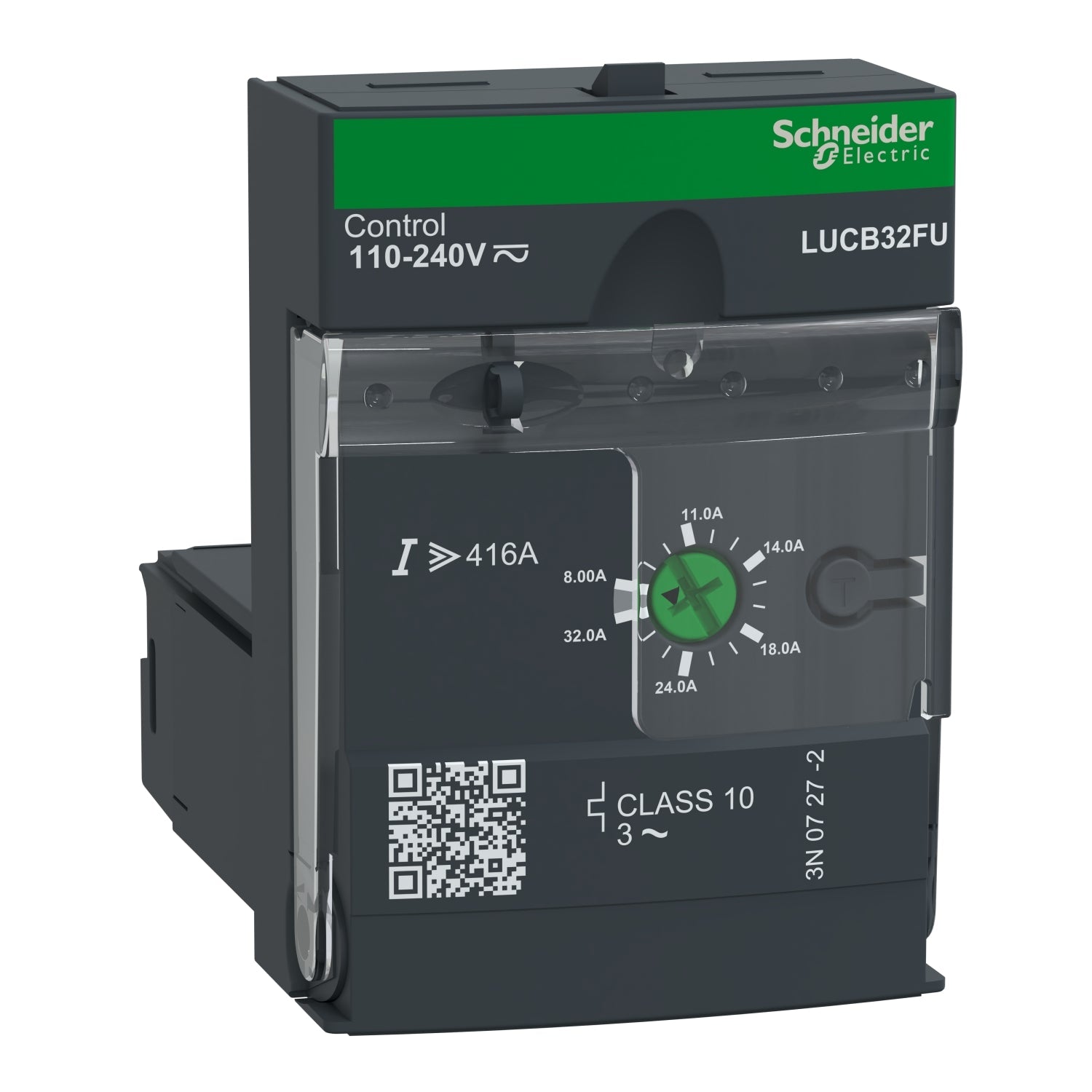

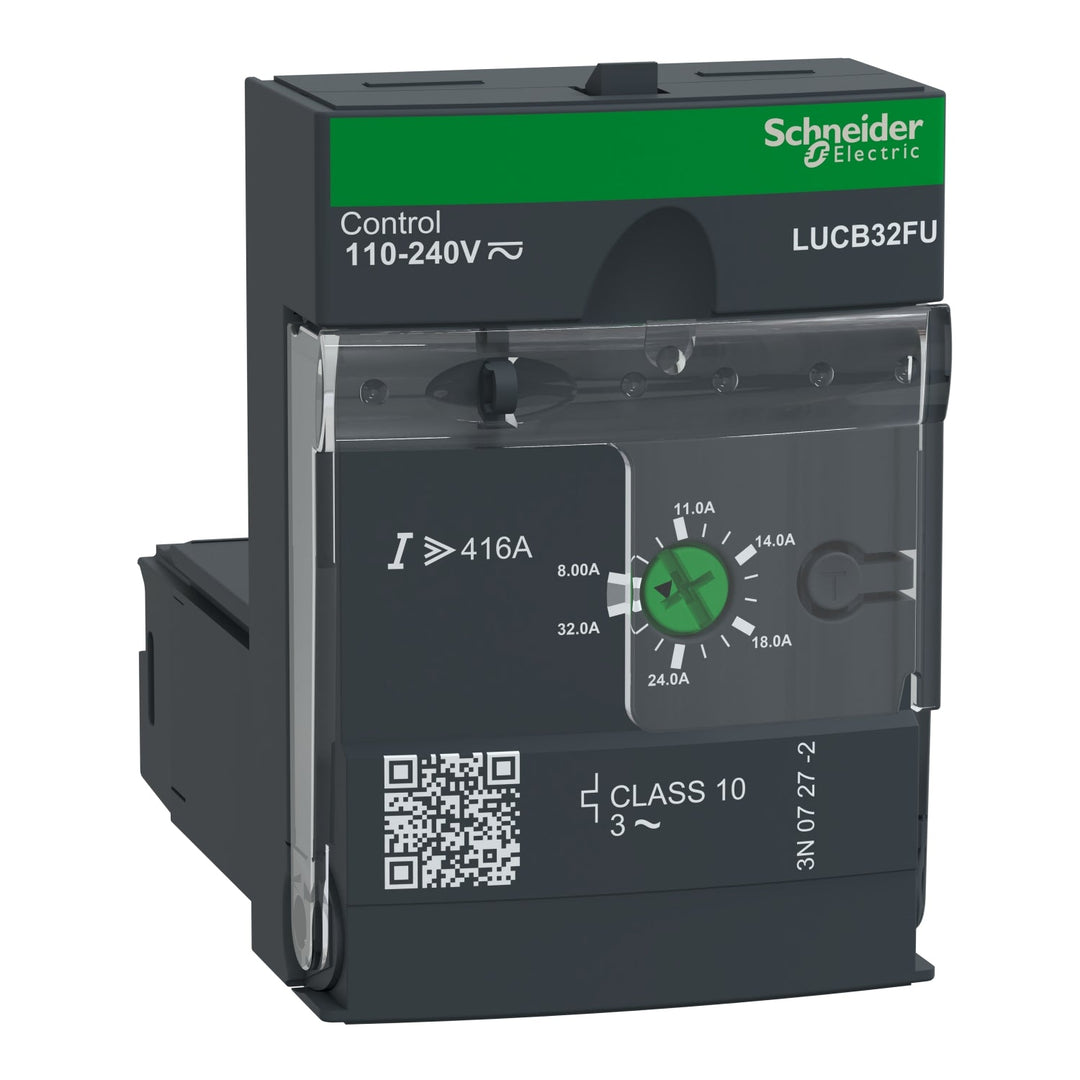

Schneider Electric LUCB32FU - Motor Starter 32A 3-Pole
Schneider Electric LUCB32FU - Motor Starter 32A 3-Pole

Schneider Electric LUCB32FU - Motor Starter 32A 3-Pole

Schneider Electric
Price
Save $-25.26
/
Condition
  • Low stock - 7 items left
  • Backordered, shipping soon
Call for Price
The Schneider Electric LUCB32FU is a 3-pole motor starter designed for solid-state protection with LIG (Long-Time, Instantaneous and Ground Fault) functions. It operates at a voltage rating of 110-240 VAC or 110-220 VDC with a current rating of 32A and a maximum AIC rating of 65kA at 480V. The unit features a bolt-on connection, a NEMA rating of 1, and compact dimensions of 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm), weighing 0.284 lb, with a temperature rating of -13 to 158 °F (-25 to 70 °C). It complies with ASEFA, ATEX, CCC, CE, CSA, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, and UL standards. This motor starter is suitable for industrial applications requiring precise overload and ground fault protection in three-phase systems.

Key Features & Specifications
  • Type: Motor Starter, solid-state protection
  • Voltage Rating: 110-240 VAC / 110-220 VDC
  • Current Rating: 32A
  • Dimensions: 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (H x W x D)
  • Standards: ASEFA, ATEX, CCC, CE, CSA, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed
  • Applications: Industrial motor control with ground fault protection
  • Poles: 3
  • Connection: Bolt-On
  • Coil Voltage Maximum: 110-220 VDC
  • Temp Rating: -13 to 158 °F (-25 to 70 °C)
  • Phase: 3
  • AIC rating: 65kA@480V
  • Protection: Solid State
  • Functions: LIG - Long-Time, Instantaneous and Ground Fault
  • Nema Rating: 1
  • Coil Voltage Minimum: 110 VDC
  • Weight: 0.284 lb
  • Country of Origin: France


Product Identification
  • UPC: 3389110364453
  • GTIN: 03389110364453
