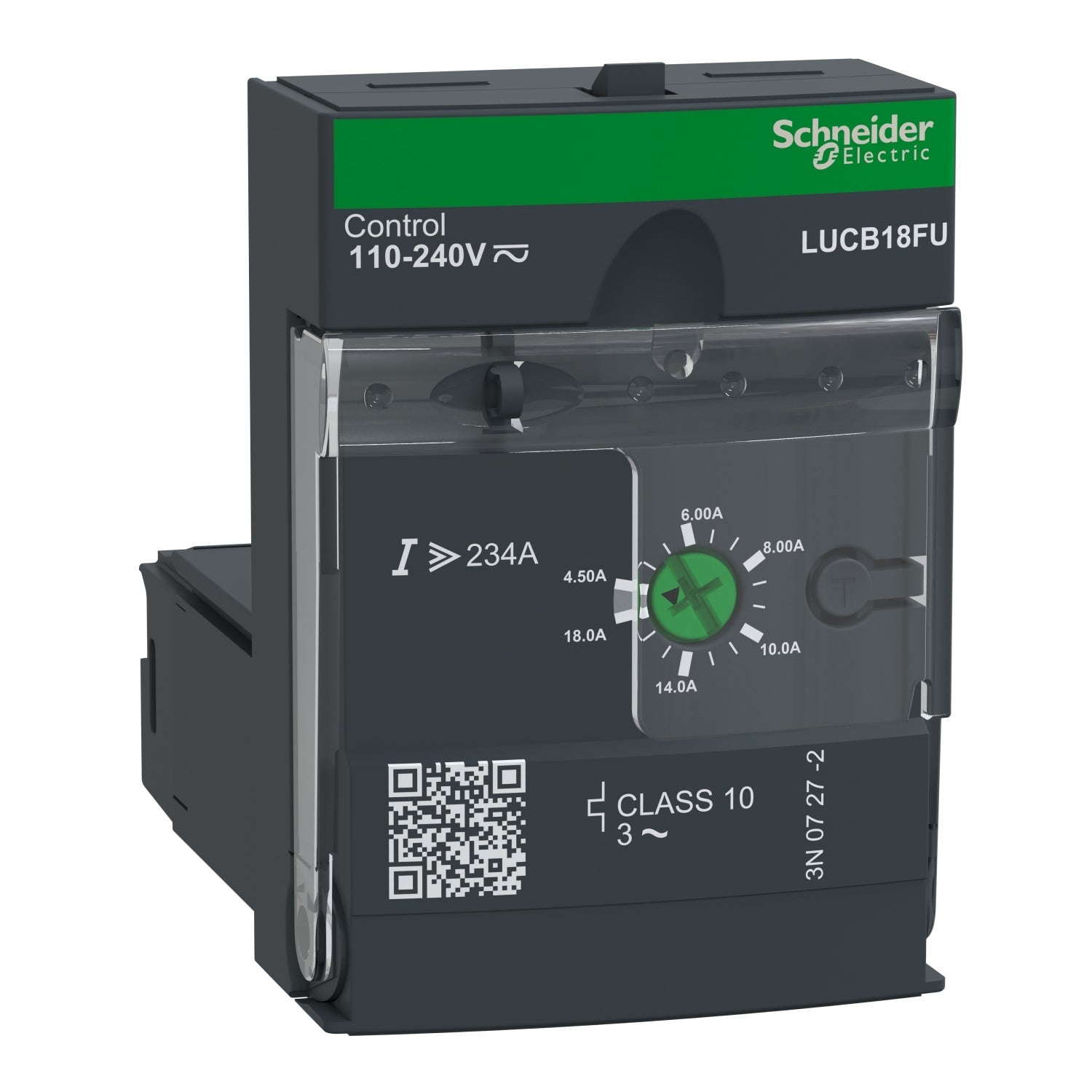

Schneider Electric LUCB18FU - Motor Starter 18A 3-Phase
Schneider Electric LUCB18FU - Motor Starter 18A 3-Phase

Schneider Electric LUCB18FU - Motor Starter 18A 3-Phase

Schneider Electric
Price
Save $-15.43
/
Condition
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
The Schneider Electric LUCB18FU is a solid-state motor starter designed to provide comprehensive protection for three-phase motors through its LSHG (Long-Time, Short-Time, High-Range Instantaneous and Ground Fault) functions. This unit operates at a voltage rating of 110-240 VAC or 110-220 VDC, with a continuous current rating of 18A and an AIC rating of 65kA at 480V, featuring a minimum coil voltage of 110V and a maximum coil voltage of 110-220 VDC. Physically, it is a 3-pole, bolt-on device measuring 2.6 in (66 mm) in height, 1.8 in (45 mm) in width, and 2.4 in (60 mm) in depth, weighing 0.28 lb, and housed in a NEMA 1 enclosure. The starter complies with multiple international standards including ASEFA, ATEX, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, and UL Listed, and is manufactured in France. Typical industrial applications include motor control and protection in environments requiring solid-state reliability and ground fault detection.

Key Features & Specifications
  • Type: Solid State Motor Starter
  • Voltage Rating: 110-240 AC/110-220 DCV
  • Current Rating: 18A
  • Dimensions: 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
  • Standards: ASEFA, ATEX Compliant, CCC, CE, CSA, CSA C22.2, EAC, EN 60947-6-2, Green Premium RoHS/REACH, IEC 60947-6-2, UL Listed
  • Applications: Motor control and protection in industrial environments
  • Poles: 3
  • Connection: Bolt-On
  • Protection: Solid State
  • Functions: LSHG - Long-Time, Short-Time, High-Range Instantaneous and Ground Fault
  • Nema Rating: 1
  • Phase: 3
  • AIC rating: 65kA@480V
  • Coil Voltage Minimum: 110
  • Coil Voltage Maximum: 110-220 VDC
  • Weight: 0.28 lb
  • Country of Origin: France


Product Identification
  • UPC: 3389110364446
  • GTIN: 03389110364446
