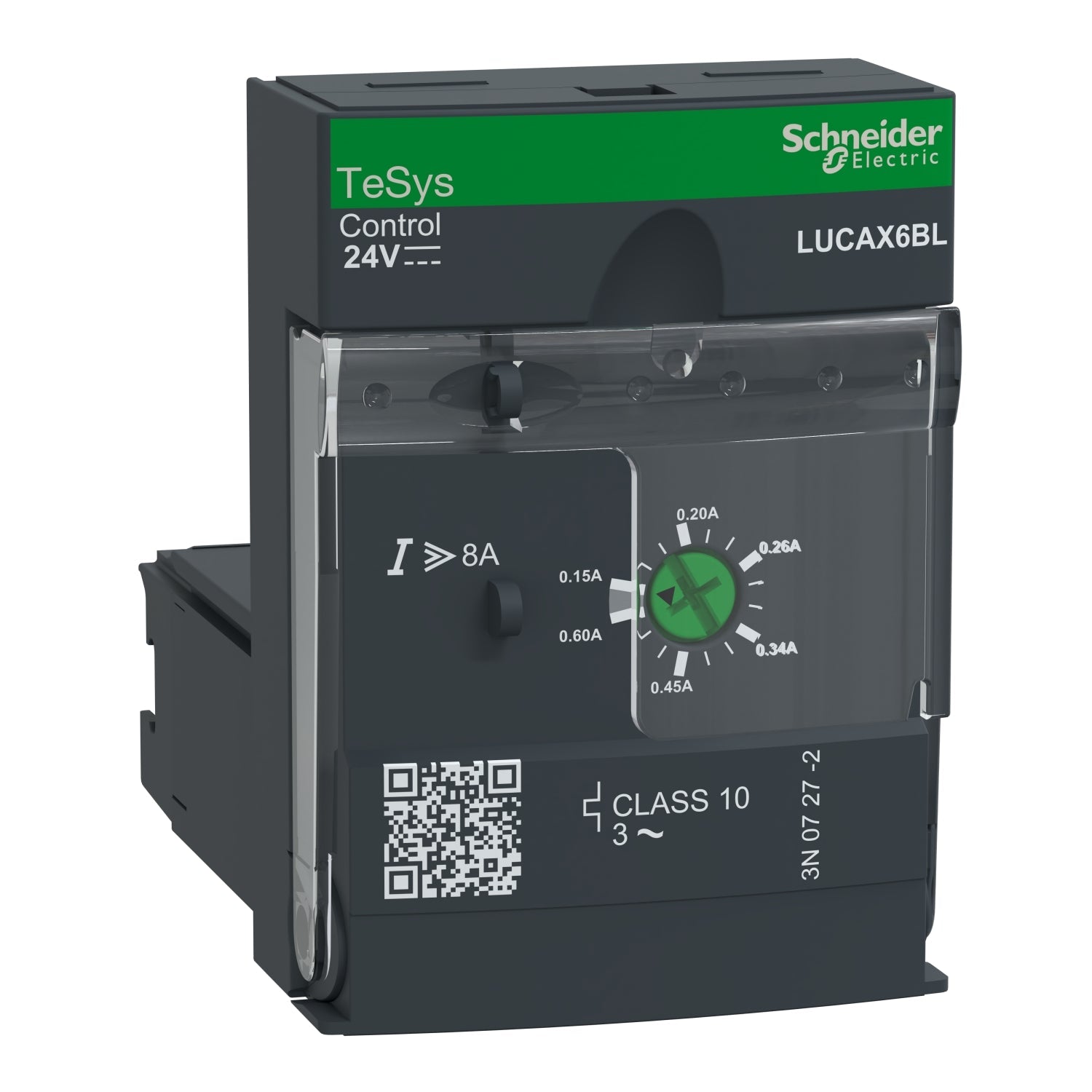

Schneider Electric LUCAX6BL is a manual solid-state standard control unit from the TeSys Ultra series, designed for reliable motor control and thermal magnetic protection of three-phase motors. It operates with a 24V DC control circuit and is rated for motor currents from 0.15A to 0.6A, conforming to Class 10 protection standards. The unit measures 2.6 in (66 mm) in height, 1.8 in (45 mm) in width, and 2.4 in (60 mm) in depth, weighs 0.262 lb, and features an IP20/IP40 enclosure with self-cooling construction. It complies with EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1 (with phase barrier), CSA C22.2 No 60947-4-1 (with phase barrier), CE, CCC, EAC, ASEFA, ATEX, and Marine certifications, and operates within a temperature range of -13 to 158 °F (-25 to 70 °C). This control unit is suitable for motor control and protection applications in diverse industrial environments.

Key Features & Specifications
  • Type: Motor Control Part And Accessory
  • Series: TeSys Ultra (LUCA)
  • Amperage Rating: 0.15 to 0.6A
  • Control Circuit Voltage: 24V DC
  • Motor Type: 3-Phase
  • Protection Type: Thermal Magnetic
  • Enclosure Type: IP20/IP40
  • Frequency Rating: 50/60 Hz
  • Operating Temperature: -13 to 158 °F (-25 to 70 °C)
  • Dimensions: 2.6 in (66 mm) x 1.8 in (45 mm) x 2.4 in (60 mm) (Height x Width x Depth)
  • Weight: 0.262 lb
  • Certification: EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
  • Country of Origin: France


Product Identification
  • UPC: 785901453888
  • GTIN: 3389110362770
