Schneider Electric LRD32L - Overload Relay 23-32A 600VAC
Schneider Electric LRD32L - Overload Relay 23-32A 600VAC

Schneider Electric LRD32L - Overload Relay 23-32A 600VAC

Schneider Electric
Price
Save $-22.90
/
Condition
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price

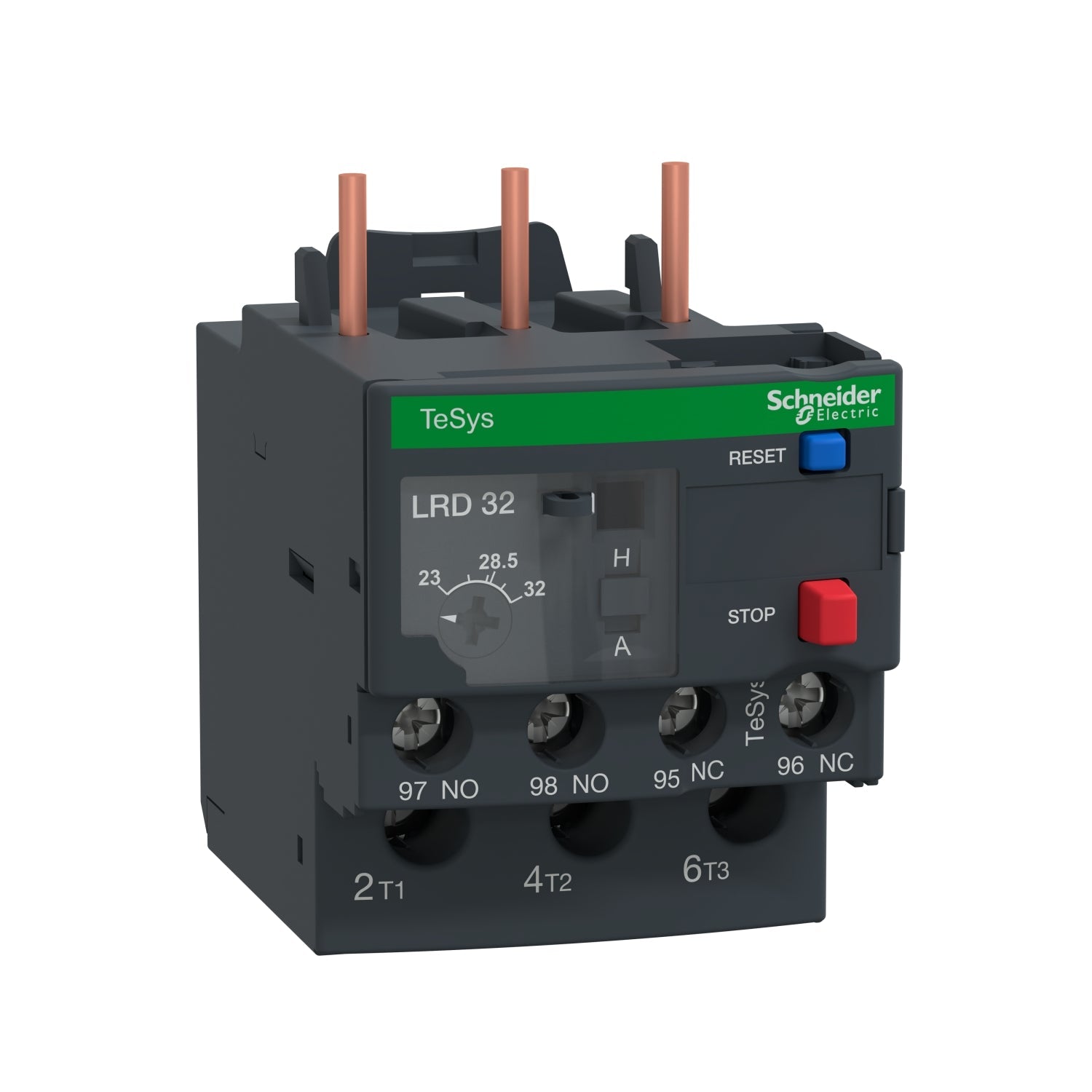

The Schneider Electric LRD32L is a thermal overload relay from the TeSys D family, designed to protect three-phase motors against overload, phase failure, and phase imbalance. It operates at a voltage rating of 600/690 VAC and is rated for a current range of 23-32 A, with a compact footprint of 2.6 in (66 mm) x 1.8 in (45 mm) x 3.0 in (76 mm) and a weight of 0.395 lb. Constructed with a Class 10A trip curve and manual/automatic reset, it features three poles and is built for direct mounting on TeSys D contactors. The relay complies with EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, and UKCA standards, and is suitable for industrial motor control applications in environments ranging from -20 to 60 °C.

Key Features & Specifications
  • Type: Thermal overload relay, Class 10A trip curve, manual/automatic reset
  • Voltage Rating: 600/690 VAC
  • Current Rating: 23-32 A
  • Dimensions: 2.6 in (66 mm) x 1.8 in (45 mm) x 3.0 in (76 mm) (Height x Width x Depth)
  • Standards: EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
  • Applications: Industrial motor protection, conveyor systems, pumps, compressors
  • Poles: 3
  • Phase: 3
  • Temp Rating: 28-158 °F (-20-60 °C)
  • Weight: 0.395 lb
  • Family: TeSys D
  • Country of Origin: Thailand
  • Type: LRD


Product Identification
  • UPC: 785901164548
