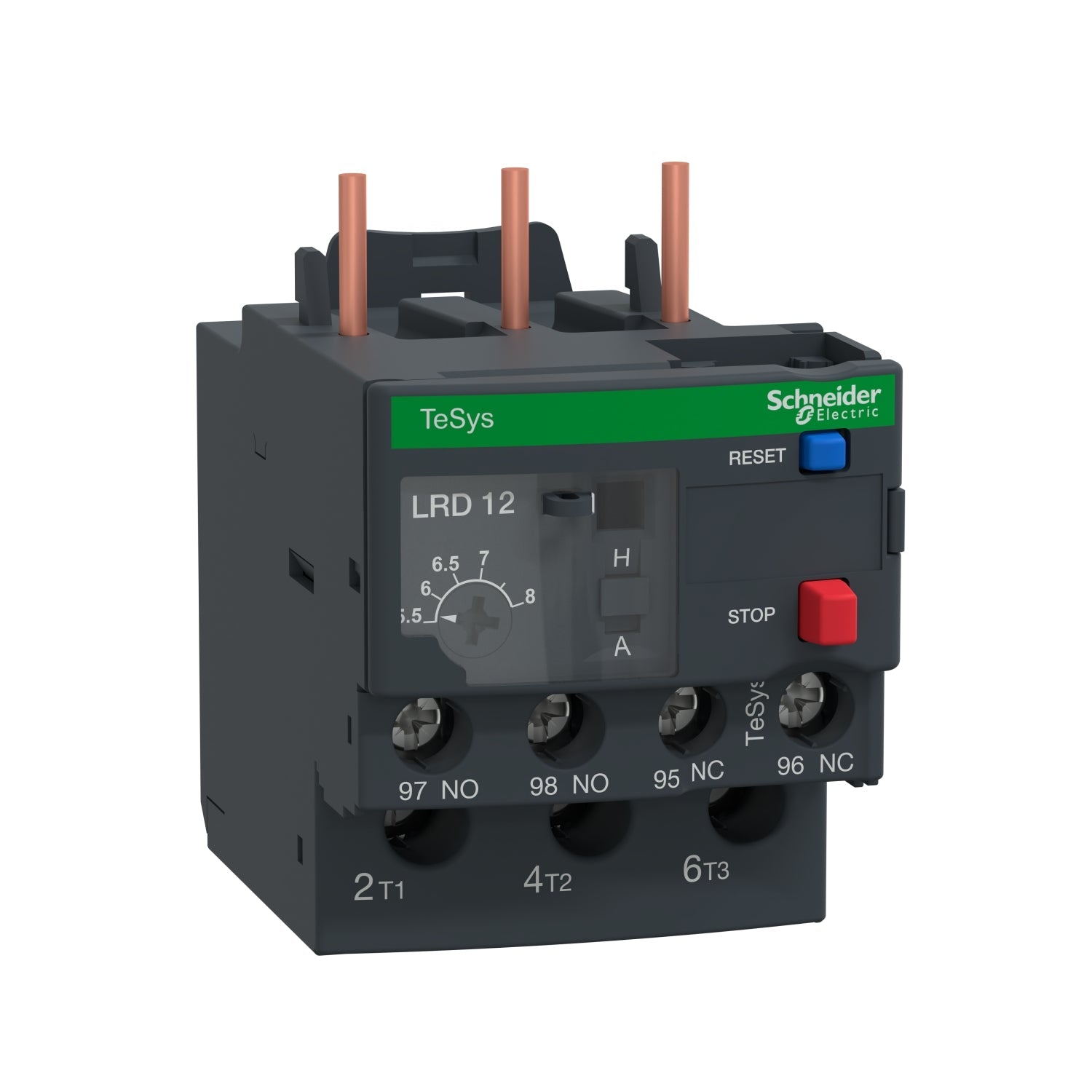

Schneider Electric LRD12L6 - Thermal Overload Relay 5.5-8A (Class 20)
Schneider Electric LRD12L6 - Thermal Overload Relay 5.5-8A (Class 20)

Schneider Electric LRD12L6 - Thermal Overload Relay 5.5-8A (Class 20)

Schneider Electric
Price
Save $53.16
/
Condition
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Schneider Electric LRD12L6 is a TeSys D thermal overload relay designed for three-phase motor protection against overload and phase failure. It features an adjustable current range of 5.5 to 8 amperes with Class 20 trip characteristics and operates on AC/DC networks up to 690 V AC at 0-400 Hz. The device measures 2.6 in (66 mm) x 1.8 in (45 mm) x 3.0 in (76 mm) and weighs 0.318 lb, with screw clamp terminals for control circuits and ring lug terminals for power circuits. It complies with EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, and UKCA certifications, and is rated for ambient temperatures from -20 to 60 °C. This relay is suited for industrial motor control applications requiring reliable thermal protection in conjunction with compatible contactors.

Key Features & Specifications
  • Type: Thermal Overload Relay
  • Manufacturer: Schneider Electric
  • Item Subcategory: Overload Relay
  • Family: TeSys D
  • Country of Origin: Thailand
  • Type: LRD
  • Dimensions: 2.6 in (66 mm) x 1.8 in (45 mm) x 3.0 in (76 mm) (Height x Width x Depth)
  • Weight: 0.318 lb
  • Voltage Rating: 600/690 V AC
  • Poles: 3
  • Phase: 3
  • Certification: EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
  • Temp Rating: 28-158 °F (-20-60 °C)
  • Current adjustment range: 5.5 to 8 A
  • Trip class: 20
  • Rated operational voltage: 690 V AC, 0-400 Hz
  • Rated insulation voltage: 600 V
  • Impulse withstand voltage: 6 kV
  • Control circuit: screw clamp terminals (1 to 2.5 mm²)
  • Power circuit: ring lug terminals
  • Trip at 130% of set current on phase failure
  • Temperature compensation for ambient conditions from -20 to 60 °C
  • Red push-button stop and blue push-button reset controls
