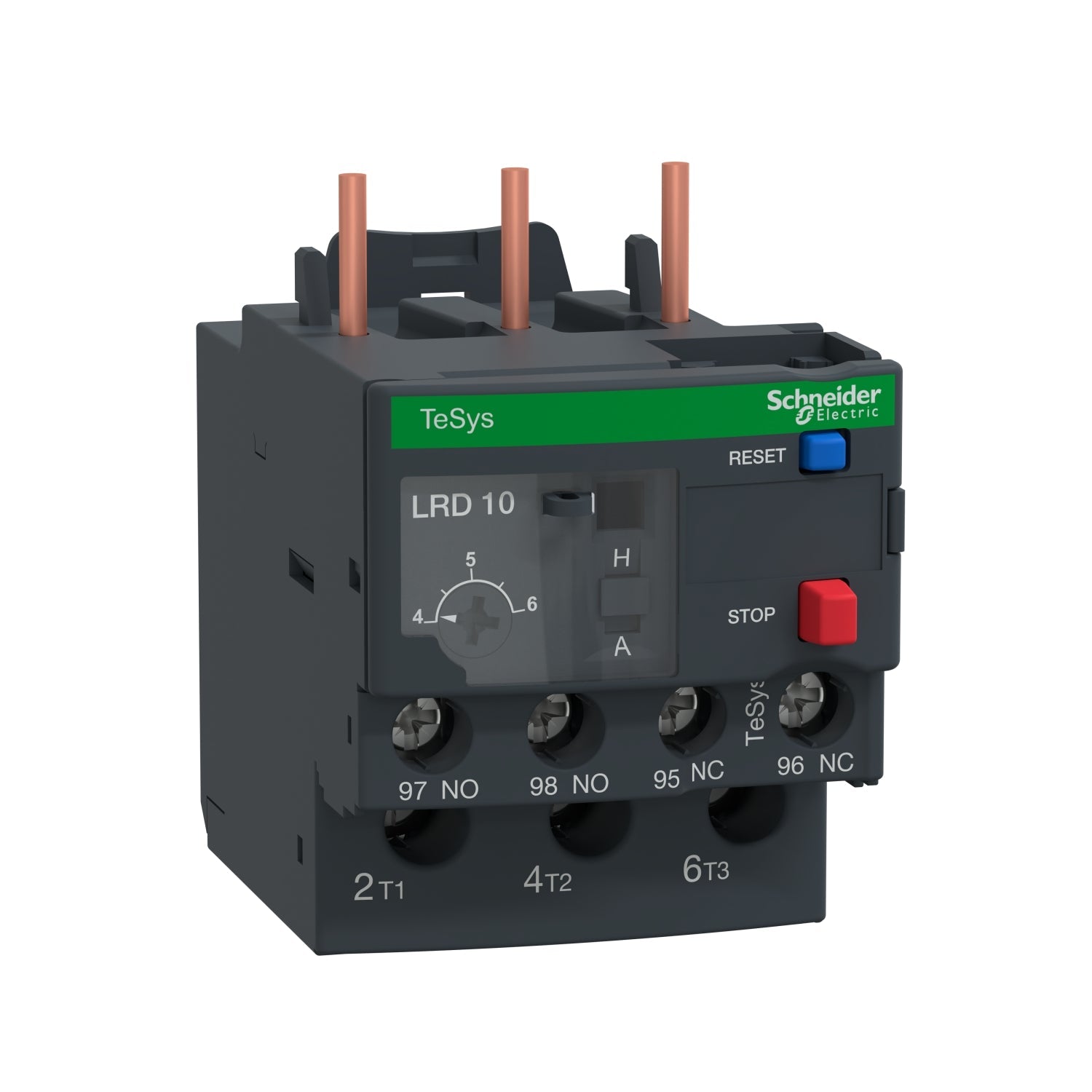

The Schneider Electric LRD10L is a thermal overload relay from the TeSys D family, designed to protect three-phase motors against overload, phase failure, and prolonged starting times. It operates with a voltage rating of 600/690VAC and is rated for a current range that is adjustable via its dial, with a Class 10 trip characteristic for standard motor protection. The relay measures 2.6 in (66 mm) in height, 1.8 in (45 mm) in width, and 3.0 in (76 mm) in depth, weighing 0.379 lb, and features a compact, modular construction with three poles for direct mounting on contactors. It complies with EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, and UKCA standards, ensuring global acceptance in industrial environments. Typical applications include motor control centers, conveyor systems, pumps, and fans in manufacturing and process industries.

Key Features & Specifications
  • Type: Thermal overload relay, Class 10, 3-pole
  • Voltage Rating: 600/690VAC
  • Current Rating: Adjustable range (specific values not provided)
  • Dimensions: 2.6 in (66 mm) x 1.8 in (45 mm) x 3.0 in (76 mm) (H x W x D)
  • Weight: 0.379 lb
  • Standards: EN/IEC, UL, CSA, GB/T, CCC, EAC, BV, RINA, DNV-GL, LROS, ATEX INERIS, UKCA
  • Applications: Motor protection in industrial machinery, conveyors, pumps, fans
  • Poles: 3
  • Phase: 3
  • Temp Rating: 28-158 °F (-20-60 °C)
  • Family: TeSys D
  • Country of Origin: Thailand


Product Identification
  • UPC: 60648060957
  • GTIN: 03606480609572
