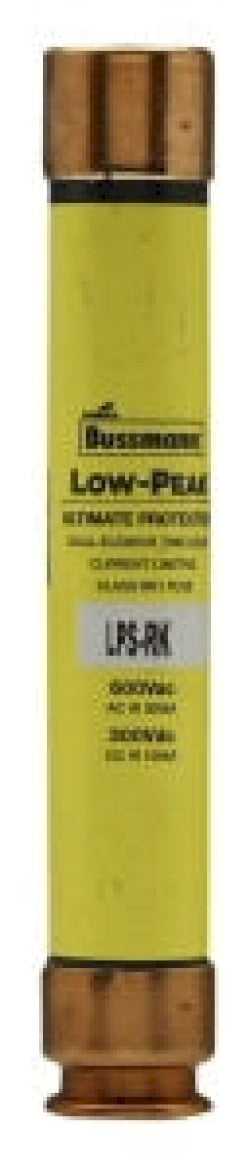

Bussmann LPS-RK-9SP - Low-Peak Time-Delay Fuse 9A 600V (RK1 Class, 300kA AIC)

Bussmann LPS-RK-9SP is a Low-Peak time-delay fuse designed for comprehensive circuit protection in industrial electrical systems. It provides reliable 9A current protection with a 600V AC voltage rating and features a high interrupting capacity of 300kA. The fuse features a single-barrel construction with a 0.81-inch diameter and 5-inch length, built with RK1 class current-limiting characteristics for enhanced safety. It meets multiple industry standards including UL and CSA certifications for special purpose applications. This fuse is typically deployed in motor circuits, transformers, and feeder circuits where time-delay protection and high fault current interruption are required.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, RK1 class, current-limiting
• Voltage Rating: 600V AC
• Current Rating: 9A
• Dimensions: 5 inches length, 0.81 inches diameter
• Standards: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12, CE
• Applications: Motor circuits, transformers, feeder circuits
• AIC rating: 300kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712548298
• GTIN: 00051712548298
