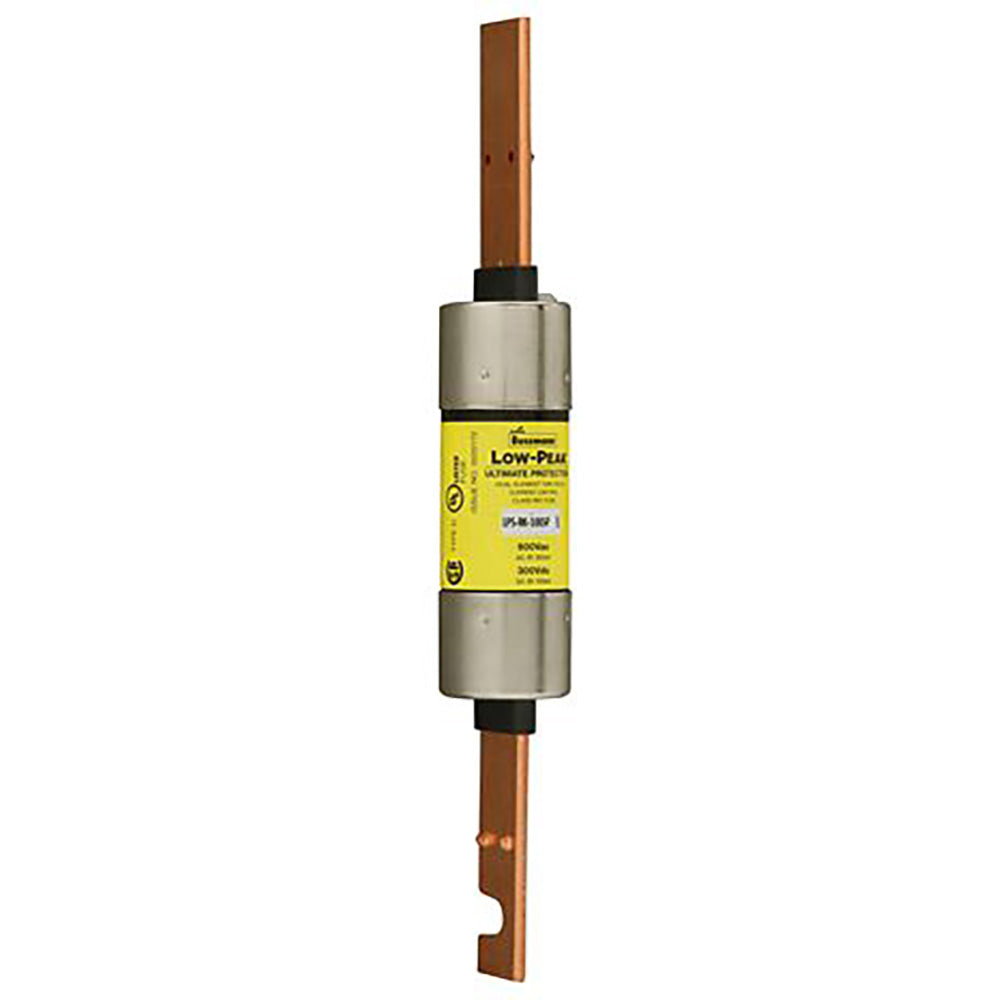

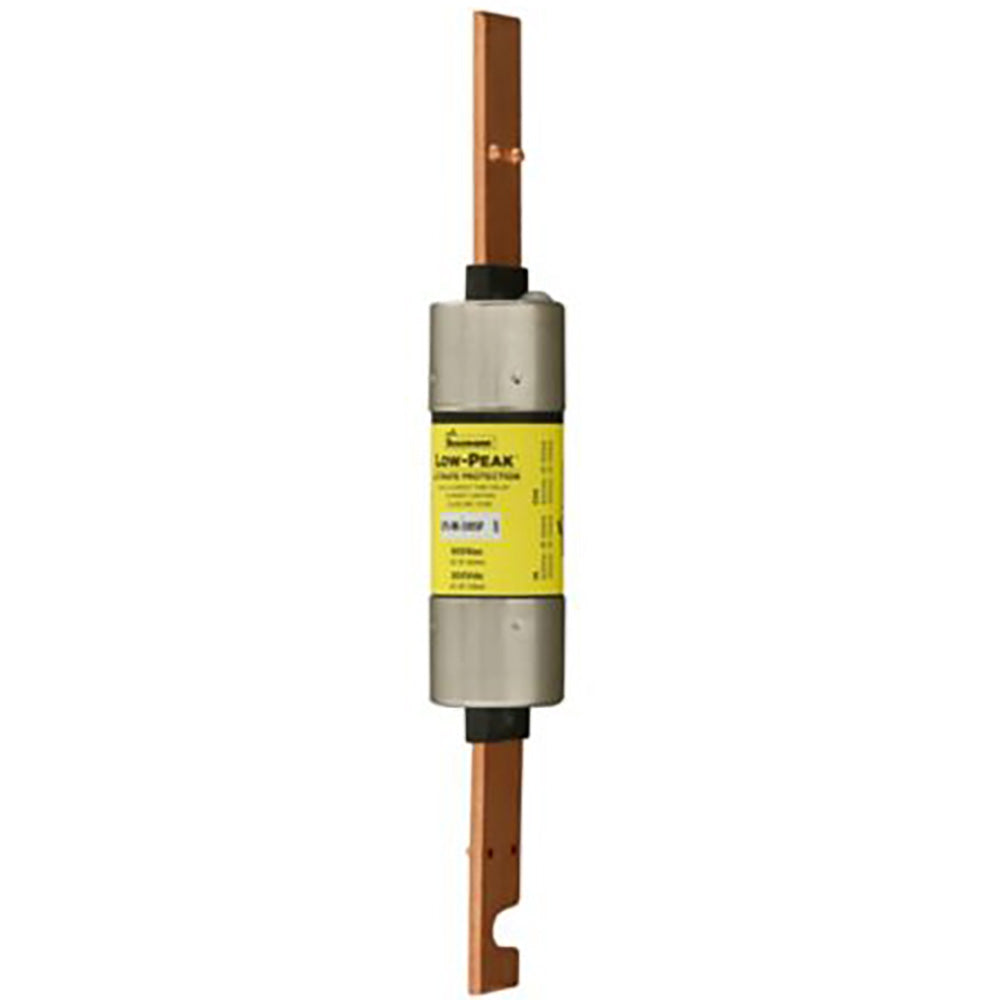

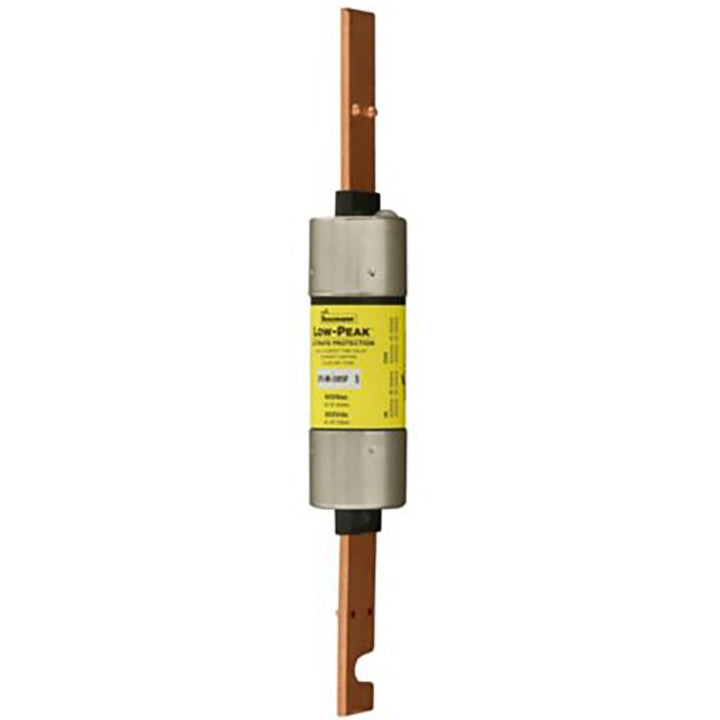

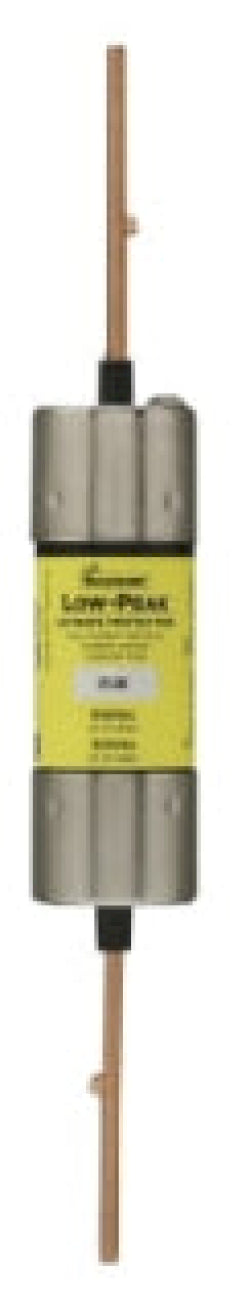

Bussmann LPS-RK-70SP - Low-Peak Fuse 70A 600V (RK1 Class)

Bussmann
Price
Save $1,147.19
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
The Bussmann LPS-RK-70SP is a Low-Peak time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 70A current rating and a 600V AC voltage rating, providing a high 300kA interrupting capacity at rated voltage. The fuse is constructed as a single-barrel RK1 class device with a 1.11-inch diameter and a length of 7.88 inches, weighing 4 lb. It complies with key industry standards including UL and CSA certifications, specifically UL Guide JFHR/JDDZ (File E4273) and CSA Class 1422-02 (File 53787). This fuse is typically applied in motor circuits and transformer protection where high fault current availability and time-delay characteristics are required to prevent nuisance tripping.

Key Features & Specifications
  • Type: Low-Peak (LPS-RK), time-delay, current-limiting, single-barrel fuse
  • Voltage Rating: 600V AC
  • Current Rating: 70A
  • Dimensions: 7.88 in L x 1.11 in H x 1.11 in W
  • Standards: CE, UL (Guide JFHR, JDDZ, File E4273), CSA (Class 1422-02, File 53787, C22.2 No. 248.12)
  • Applications: Industrial branch circuit and feeder protection, motor circuits, transformer protection
  • Class Rating: RK1
  • Diameter: 1.11 in
  • AIC rating: 300,000A @ 600V
  • Barrels: 1
  • Weight: 4 lb


Product Identification
  • UPC: 051712548427
  • GTIN: 00051712548427
