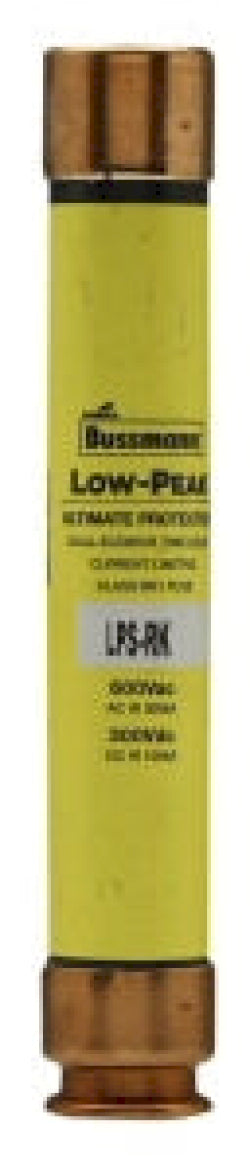

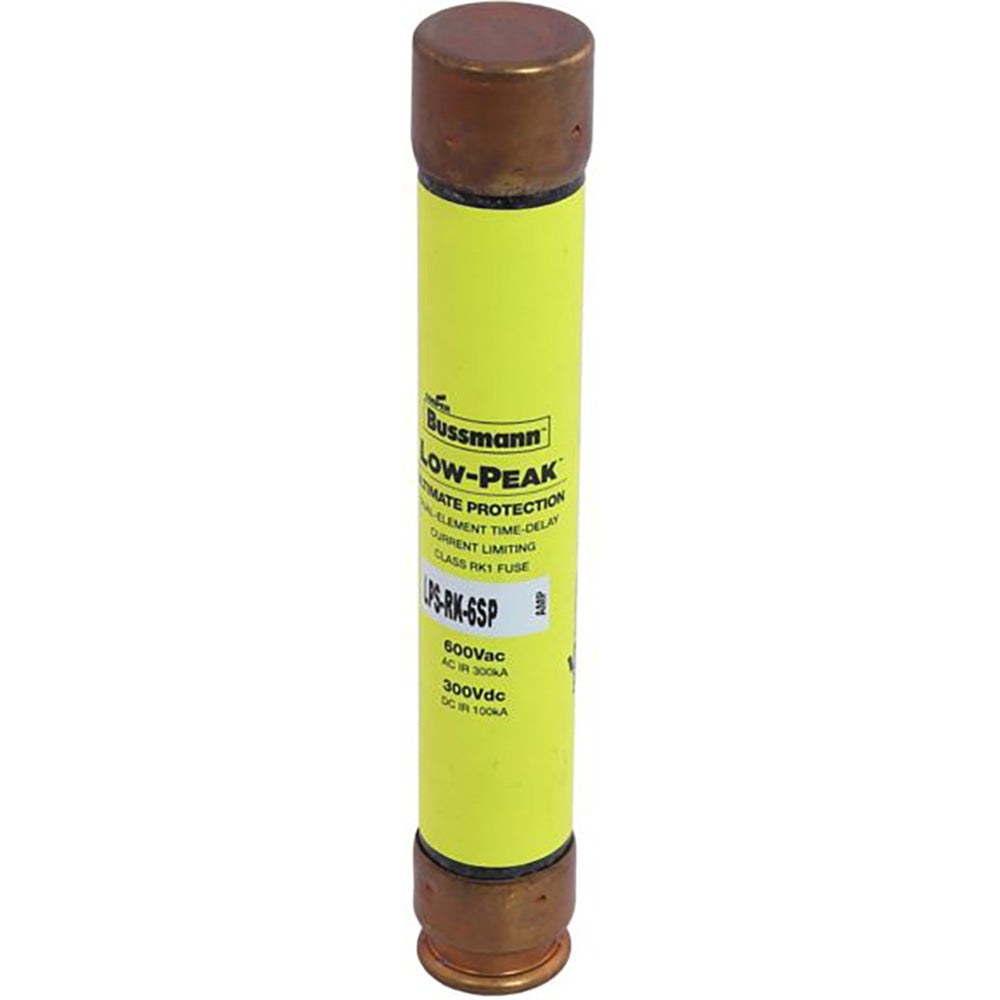

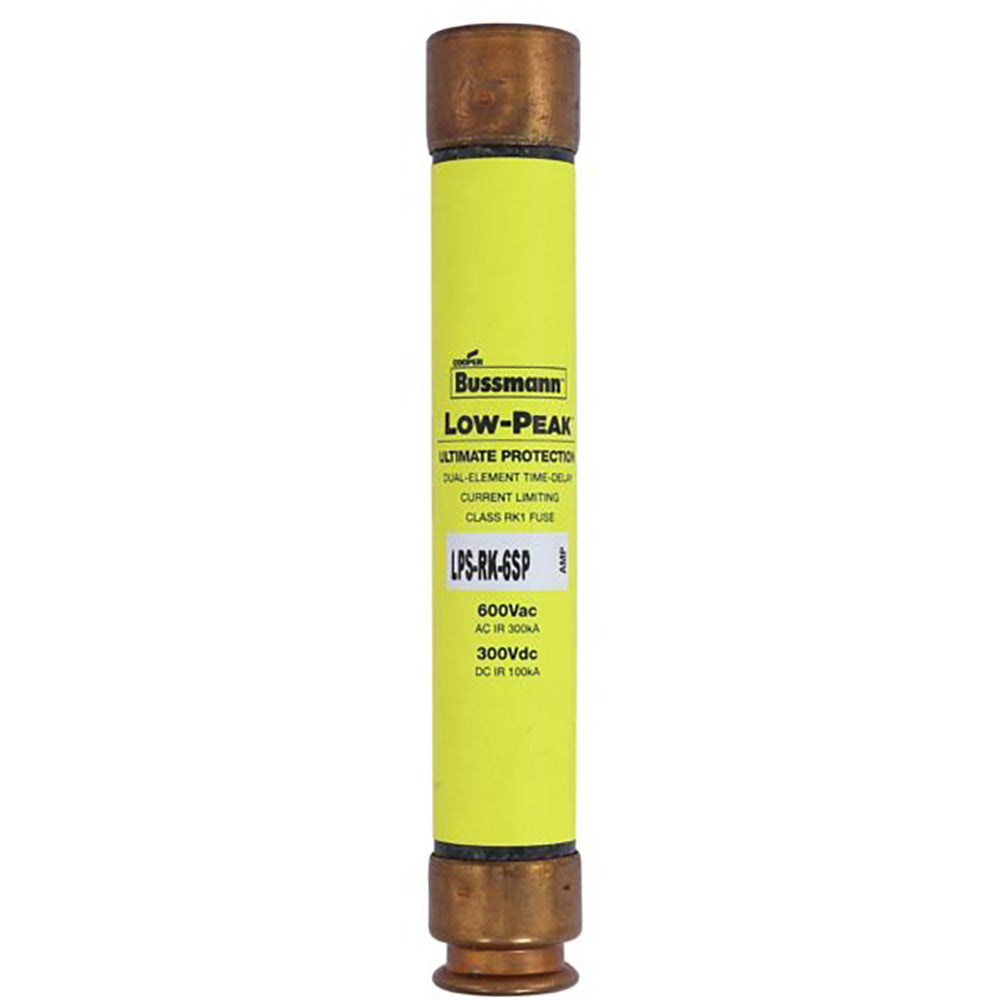

Bussmannn LPS-RK-6SP - Low-Peak Fuse 6A 600V (300kA AIC)

Bussmannn LPS-RK-6SP is a Low-Peak (LPS-RK) low-voltage fuse designed for circuit protection in industrial applications. It features a 600V AC rating with a 6A current capacity and a 300kA interrupting rating at 600V for reliable overcurrent protection. The fuse has a compact cylindrical design with a 0.81-inch diameter and 5-inch length, constructed with an RK1 class rating for time-delay characteristics. It meets multiple certifications including UL, CSA C22.2 No. 248.12, and CE standards for safety compliance. Typical applications include motor control centers, transformers, and feeder circuits requiring high interrupting capacity protection.

Key Features & Specifications

• Type: Low-Peak time-delay fuse with RK1 class rating
• Voltage: 600V AC
• Current: 6A
• Dimensions: 5" length x 0.81" diameter
• Standards: UL (E4273), CSA (1422-02, 53787), CE
• AIC rating: 300kA at 600V
• Class Rating: RK1
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712548250
• GTIN: 00051712548250
