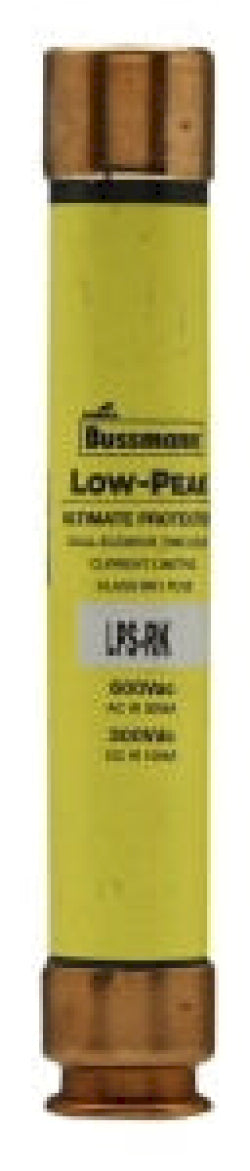

Bussmann LPS-RK-60SP - Low-Peak Time-Delay Fuse 60A (300kA AIC @600V RK1 Class)

Bussmann LPS-RK-60SP is a Low-Peak time-delay fuse designed for industrial circuit protection with high interrupting capacity requirements. It features a 600V AC voltage rating and 60A current rating, providing reliable overload and short-circuit protection in demanding electrical environments. The fuse construction includes a single-barrel design measuring 5-1/2 inches in length with 1.06-inch diameter, weighing 1 lb, and meets RK1 class specifications for time-delay characteristics. This component carries comprehensive certifications including UL, CSA, and CE compliance to industry standards UL 248-12 and CSA C22.2 No. 248.12. Typical applications include motor branch circuits, transformer protection, and industrial control panels where 300kA interrupting rating at 600V is required for system safety.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 60A
• Dimensions: 5-1/2 inches length, 1.06 inches diameter
• Standards: UL 248-12, CSA C22.2 No. 248.12, CE marked
• Applications: Motor circuits, transformer protection, industrial control panels
• Class Rating: RK1
• AIC rating: 300kA@600V
• Certification: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787
• Weight: 1 lb
• Barrels: 1
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712548410
• GTIN: 00051712548410
