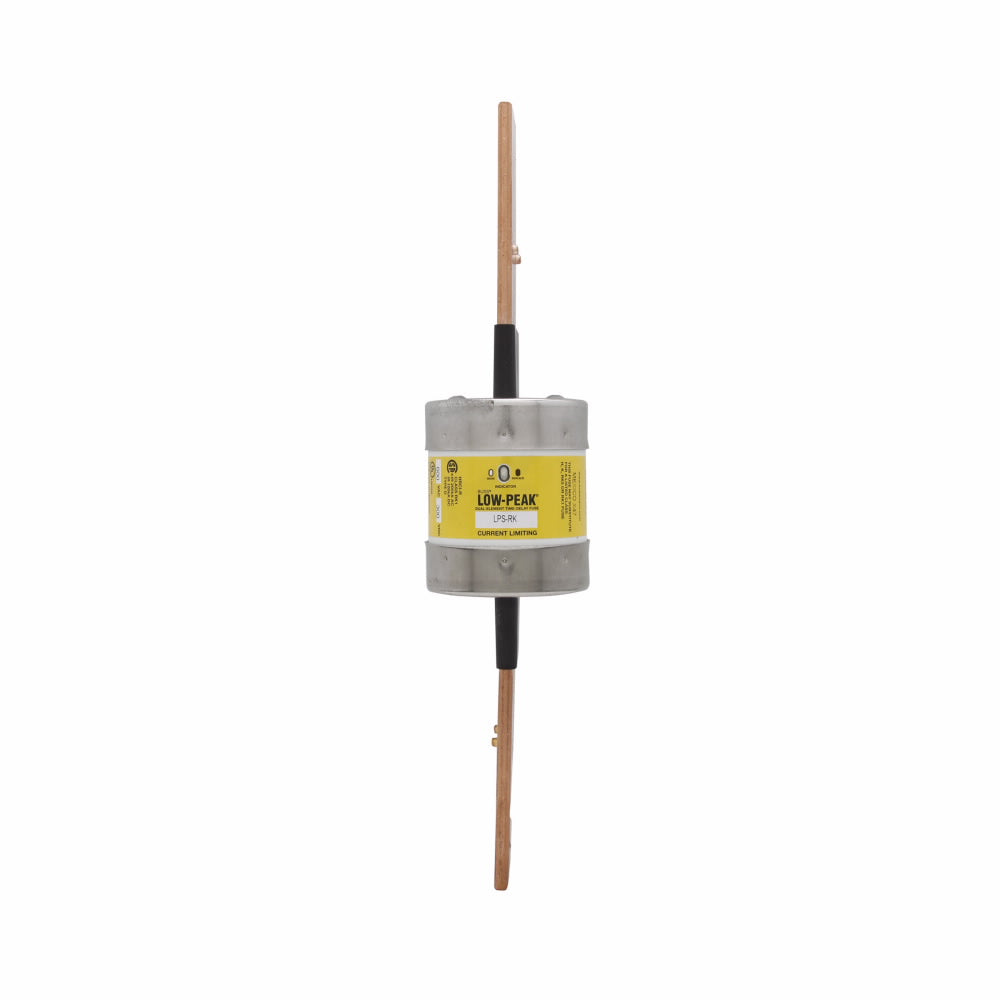

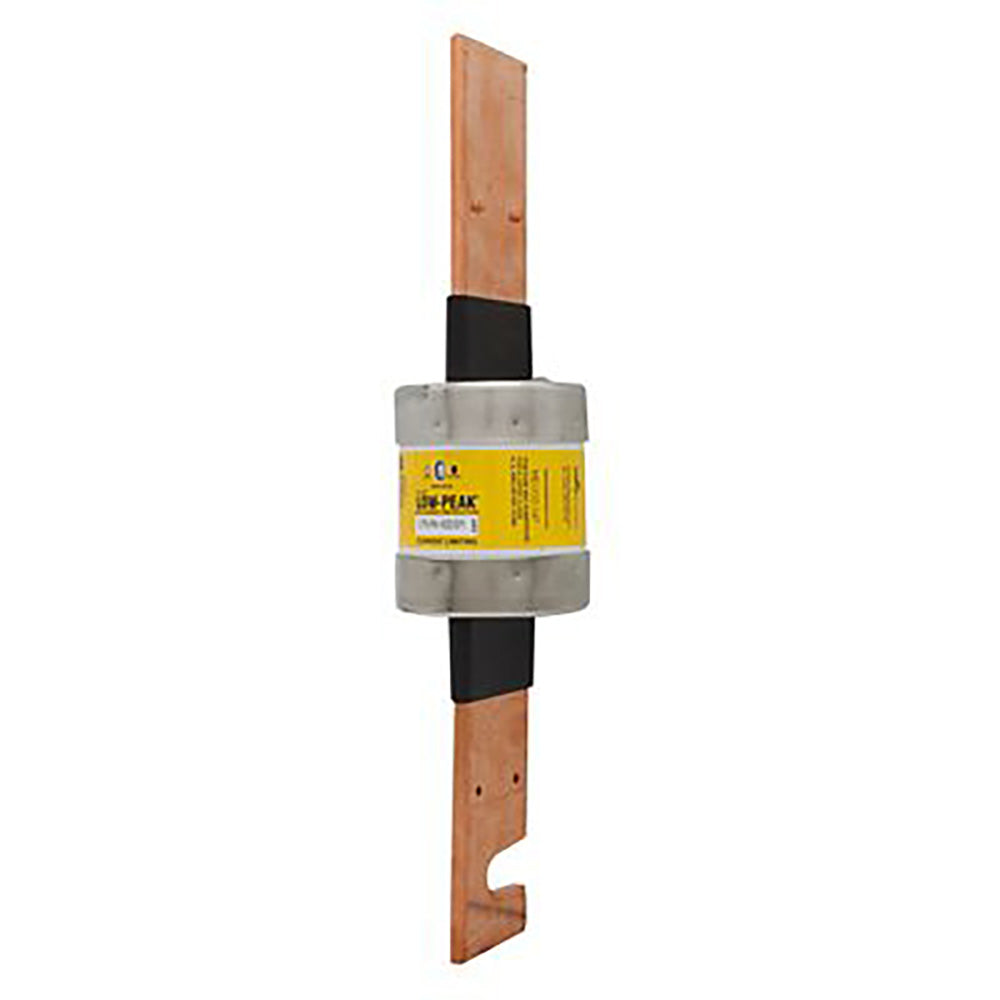

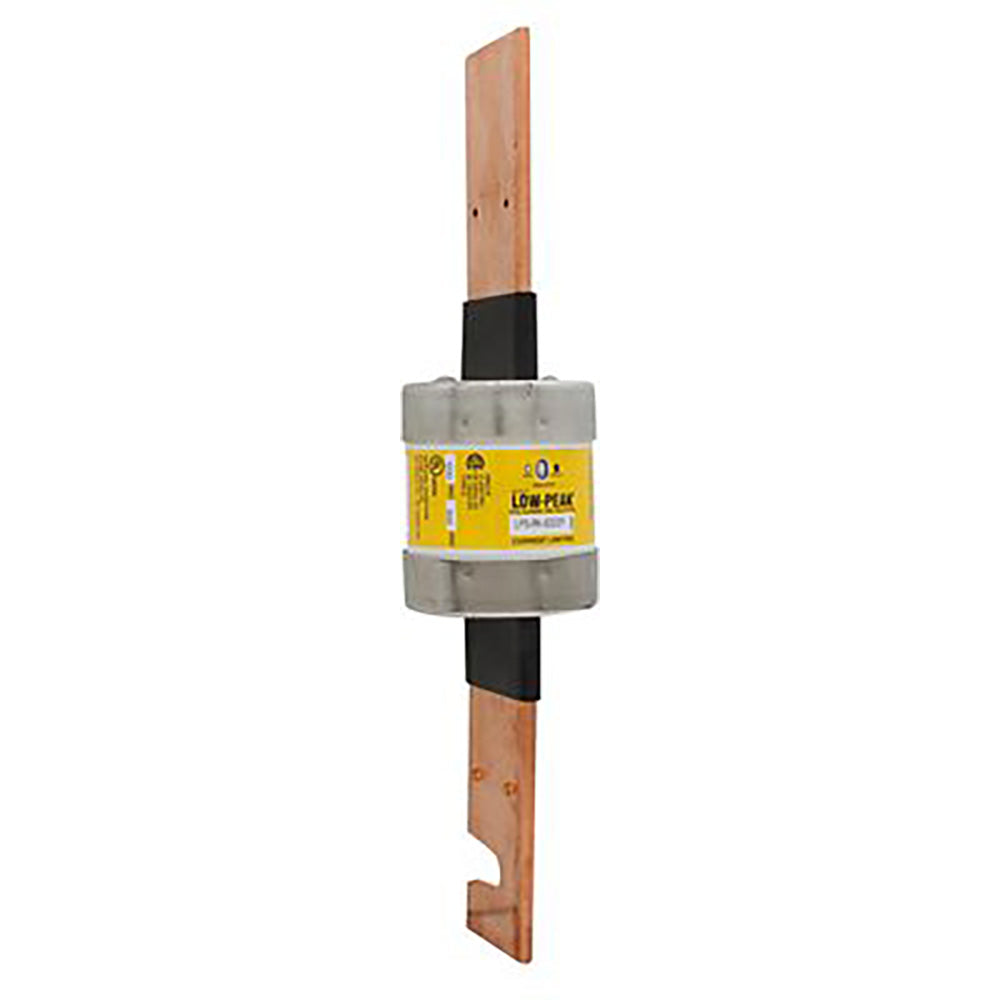

Eaton Bussmann LPS-RK-600SPI - Low-Peak Time-Delay Fuse 600A (300kA AIC @600V)

Eaton Bussmann LPS-RK-600SPI is a Low-Peak time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. This RK1-class fuse features a 600A current rating and 600V voltage rating with a high 300kA interrupting capacity at rated voltage for reliable fault protection. The unit measures 13.38 inches in length with a 2.88-inch diameter cylindrical body and weighs 3 lb, constructed as a single-barrel design for straightforward installation. Certified to UL, CSA, and CE standards, this fuse ensures compliance with international safety requirements for industrial applications including motor control centers, panelboards, and switchgear protection.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, RK1 class, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 13.38" length × 2.88" diameter
• Weight: 3 lb
• Standards: UL, CSA, CE certified
• Applications: Industrial power distribution, motor control centers, panelboards, switchgear
• AIC rating: 300kA @ 600V
• Class Rating: RK1
• Barrels: 1
• Diameter: 2.88 inches
• Certification: UL, CSA, CE

Product Identification

• UPC: 051712627474
• GTIN: 00051712627474
