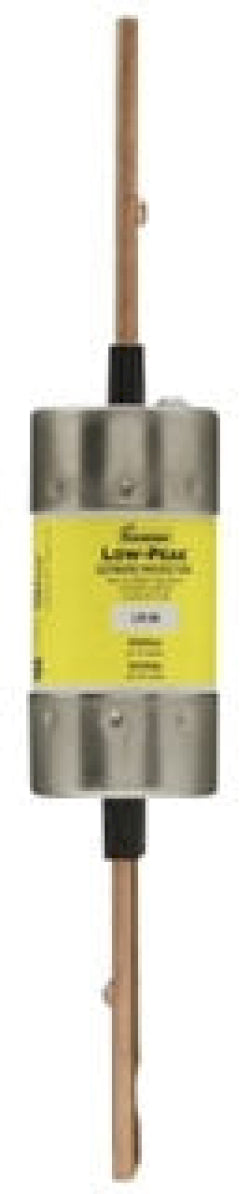

Bussmannn LPS-RK-600SP - Low-Peak Fuse 600A 600V (300kA AIC)

Bussmannn LPS-RK-600SP is a Low-Peak time-delay fuse designed for circuit protection in low-voltage applications. Rated for 600V AC/DC systems with a 600A current capacity, it features a 300kA interrupting rating at 600V for high-fault protection. The fuse has a compact cylindrical design with a 2.88-inch diameter and 13-3/8-inch length, constructed as a single-barrel RK1 class fuse weighing 3 lb. It meets multiple certifications including UL, CSA C22.2 No. 248.12, and CE standards for industrial safety compliance. Typical applications include motor branch circuits, transformer protection, and feeder circuits in commercial/industrial power distribution systems.

Key Features & Specifications

• Type: Time-delay low-voltage fuse (LPS-RK)
• Voltage: 600V AC/DC
• Current: 600A
• Dimensions: 2.88" diameter x 13-3/8" length
• Standards: UL (E4273), CSA (53787), CE
• Applications: Motor circuits, transformers, feeders
• Class Rating: RK1
• AIC rating: 300kA@600V
• Barrels: 1
• Weight: 3 lb
• Certification: UL Special Purpose Guide JFHR/JDDZ, CSA Class 1422-02

Product Identification

• UPC: 051712548588
• GTIN: 00051712548588
