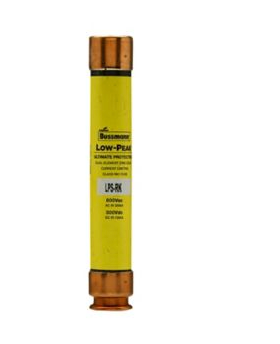

Bussmann LPS-RK-6-1/4SP - Low-Peak Fuse 6A 600V (300kA AIC, RK1 Class)

Bussmann LPS-RK-6-1/4SP is a low-voltage fuse designed for circuit protection in industrial applications, featuring a Low-Peak (LPS) design to minimize energy let-through during fault conditions. Rated for 600V AC/DC systems with a 6A current rating, this RK1-class fuse offers a high interrupting capacity of 300kA at 600V for reliable short-circuit protection. The fuse measures 5 inches in length with a 0.81-inch diameter and features a single-barrel construction weighing 2.6 lb. It complies with multiple safety standards including UL, CSA C22.2 No. 248.12, and CE certifications. Typical applications include motor control centers, panelboards, and industrial power distribution systems requiring time-delay protection.

Key Features & Specifications

• Type: LPS-RK time-delay fuse with Low-Peak current-limiting design
• Voltage Rating: 600V AC/DC
• Current Rating: 6A
• Dimensions: 5 in length x 0.81 in diameter
• Weight: 2.6 lb
• Class Rating: RK1
• AIC Rating: 300kA @ 600V
• Certification: UL (E4273), CSA (53787), CE, CSA C22.2 No. 248.12
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 051712548267
• GTIN: 00051712548267
