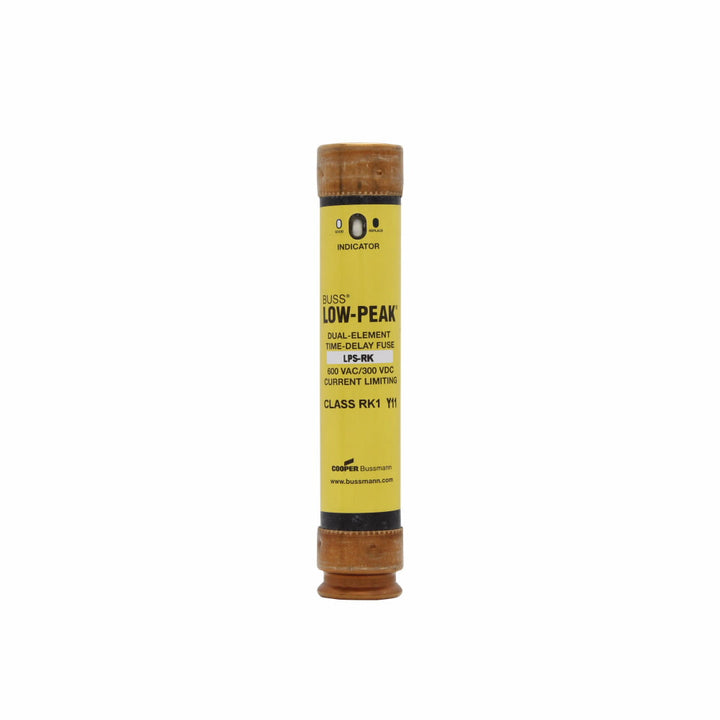

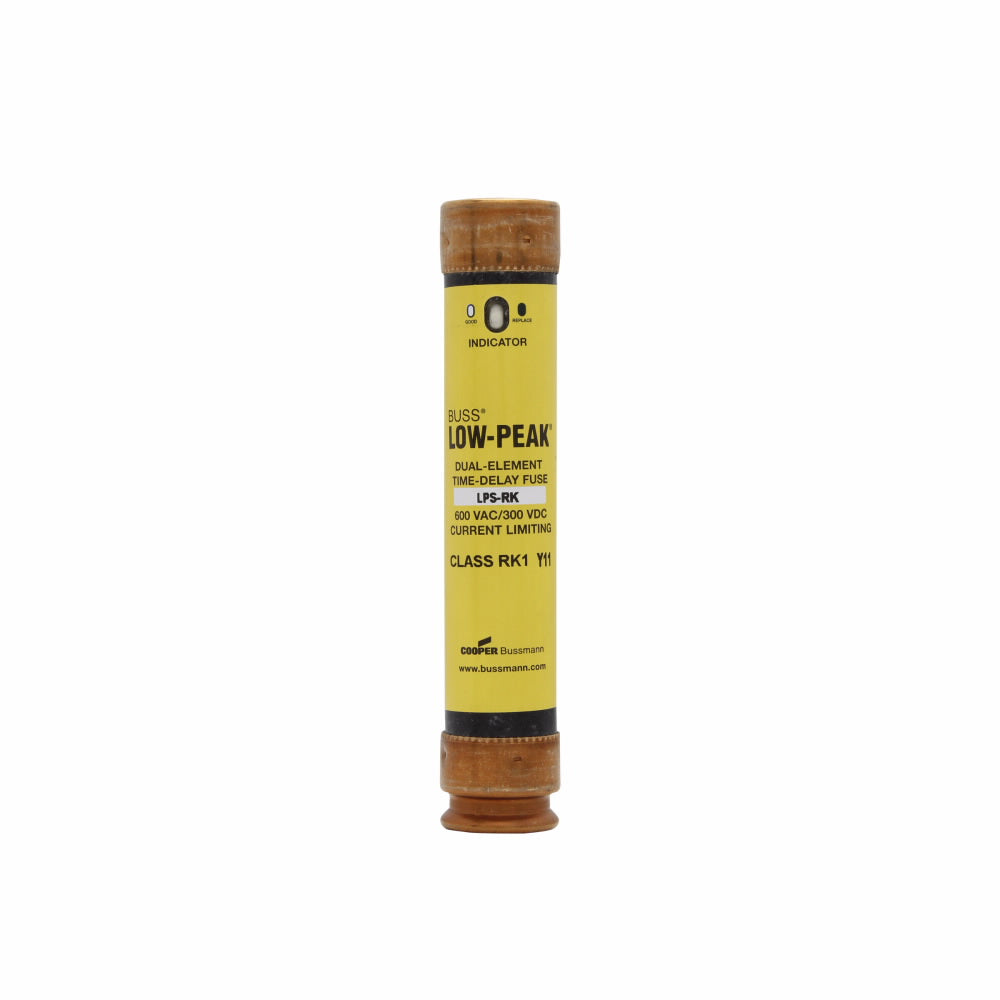

Bussmann LPS-RK-50SPI - Midget Fuse 50A 600V (300kA AIC Rating)

Bussmann LPS-RK-50SPI is a low voltage fuse designed for industrial circuit protection applications. This midget class fuse features a 50A current rating and 600V voltage rating with exceptional 300kA interrupting capacity at 600V. The single-barrel construction measures 5-1/2 inches in length with a 0.41-inch diameter and 1 lb weight, providing compact yet robust protection. It complies with multiple industry standards including UL, CSA, and CE certifications for reliable performance. Typical applications include industrial control circuits, motor branch circuits, and feeder circuits requiring high-interrupting capacity protection.

Key Features & Specifications

• Type: Low voltage current-limiting fuse, midget class, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 50A
• Dimensions: 5-1/2 inches length, 0.41 inches diameter
• Standards: CE, UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12
• Applications: Industrial control circuits, motor branch circuits, feeder circuits
• AIC rating: 300kA@600V
• Class Rating: Midget
• Barrels: 1
• Weight: 1 lb
• Certification: CE, UL, CSA
• Country of Origin: Mexico

Product Identification

• UPC: 05171262629
• GTIN: 00051712626293
