Bussmann LPS-RK-500 - Class RK1 Time-Delay Fuse 500A (300kA AIC @ 600V)
Bussmann LPS-RK-500 - Class RK1 Time-Delay Fuse 500A (300kA AIC @ 600V)
Bussmann LPS-RK-500 - Class RK1 Time-Delay Fuse 500A (300kA AIC @ 600V)
Bussmann LPS-RK-500 - Class RK1 Time-Delay Fuse 500A (300kA AIC @ 600V)
Bussmann LPS-RK-500 - Class RK1 Time-Delay Fuse 500A (300kA AIC @ 600V)
Bussmann LPS-RK-500 - Class RK1 Time-Delay Fuse 500A (300kA AIC @ 600V)

Bussmann LPS-RK-500 - Class RK1 Time-Delay Fuse 500A (300kA AIC @ 600V)

Bussmann
Price
Save $-466.84
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

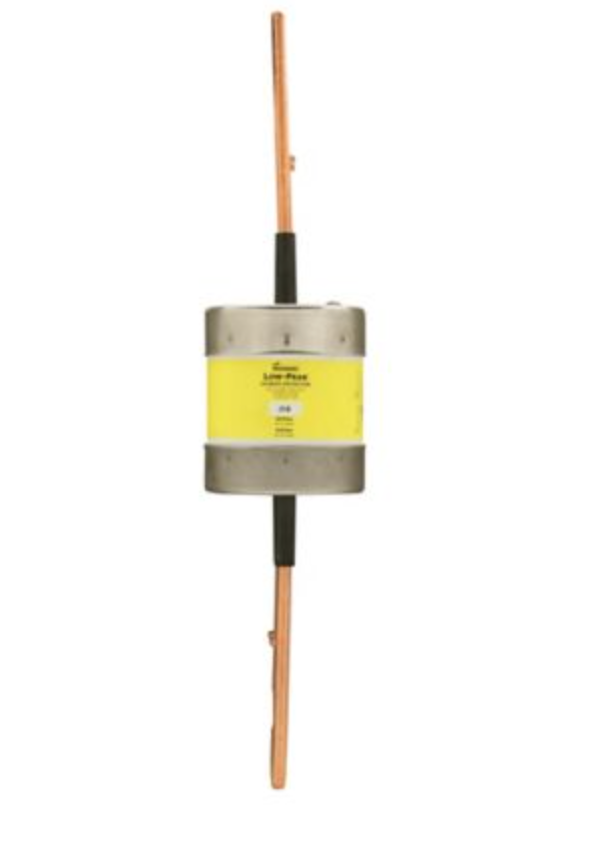

Bussmann LPS-RK-500 is a Class RK1 time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. This 500A rated fuse provides reliable overload and short-circuit protection with a 600V AC voltage rating and exceptional 300kA interrupting capacity at 600V. The single-barrel construction features a 2.88-inch diameter and weighs 4 lb, utilizing current-limiting technology to safely interrupt high fault currents. Manufactured to meet industry standards for Class RK1 fuses, this Low-Peak series component is UL listed and CSA certified for industrial applications. Typical installations include motor branch circuits, feeder circuits, and transformer protection where time-delay characteristics prevent nuisance tripping during motor starting or temporary overload conditions.

Key Features & Specifications
  • Type: Class RK1 time-delay current-limiting fuse, single barrel construction
  • Voltage Rating: 600V AC
  • Current Rating: 500A
  • Dimensions: 2.88-inch diameter
  • Standards: UL listed, CSA certified
  • Applications: Motor branch circuits, feeder circuits, transformer protection
  • AIC rating: 300kA @ 600V
  • Class Rating: RK1
  • Barrels: 1
  • Weight: 4 lb
  • Family: Low-Peak
  • Item Subcategory: Low Voltage


Product Identification
  • GTIN: 051712548571
