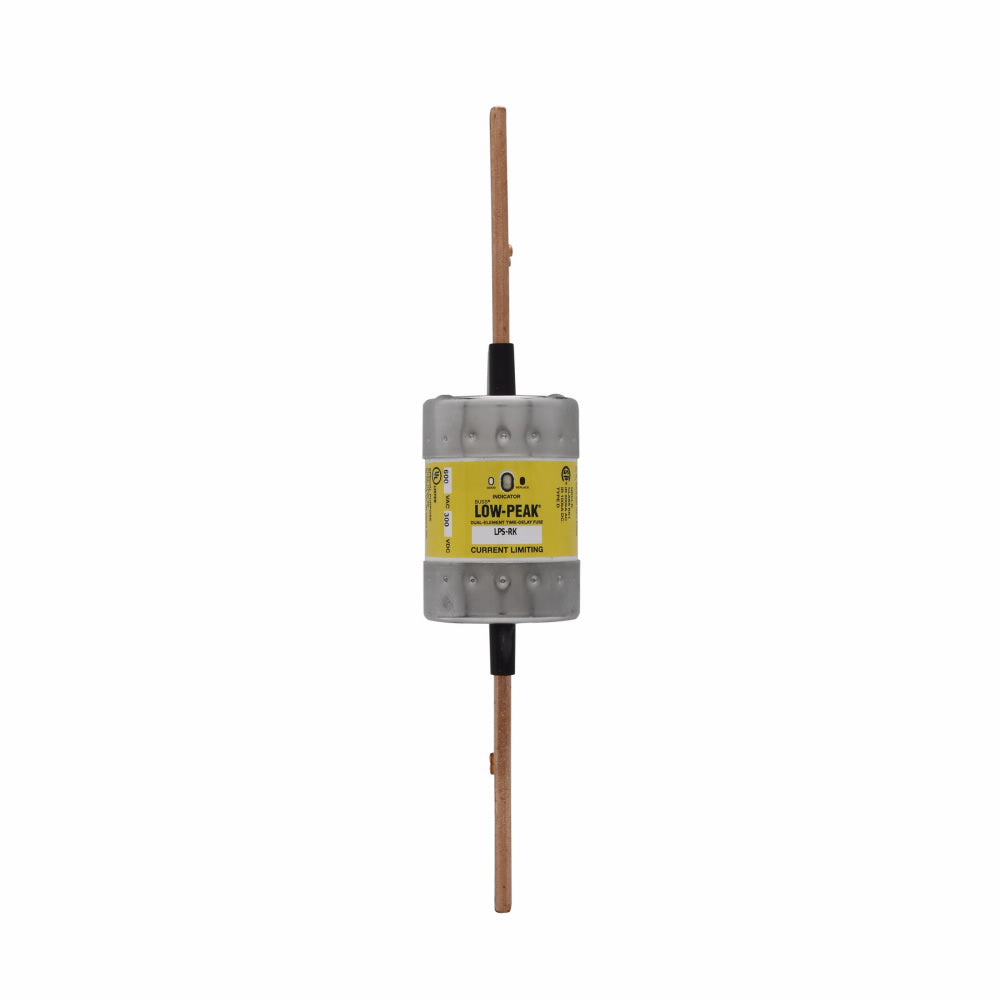

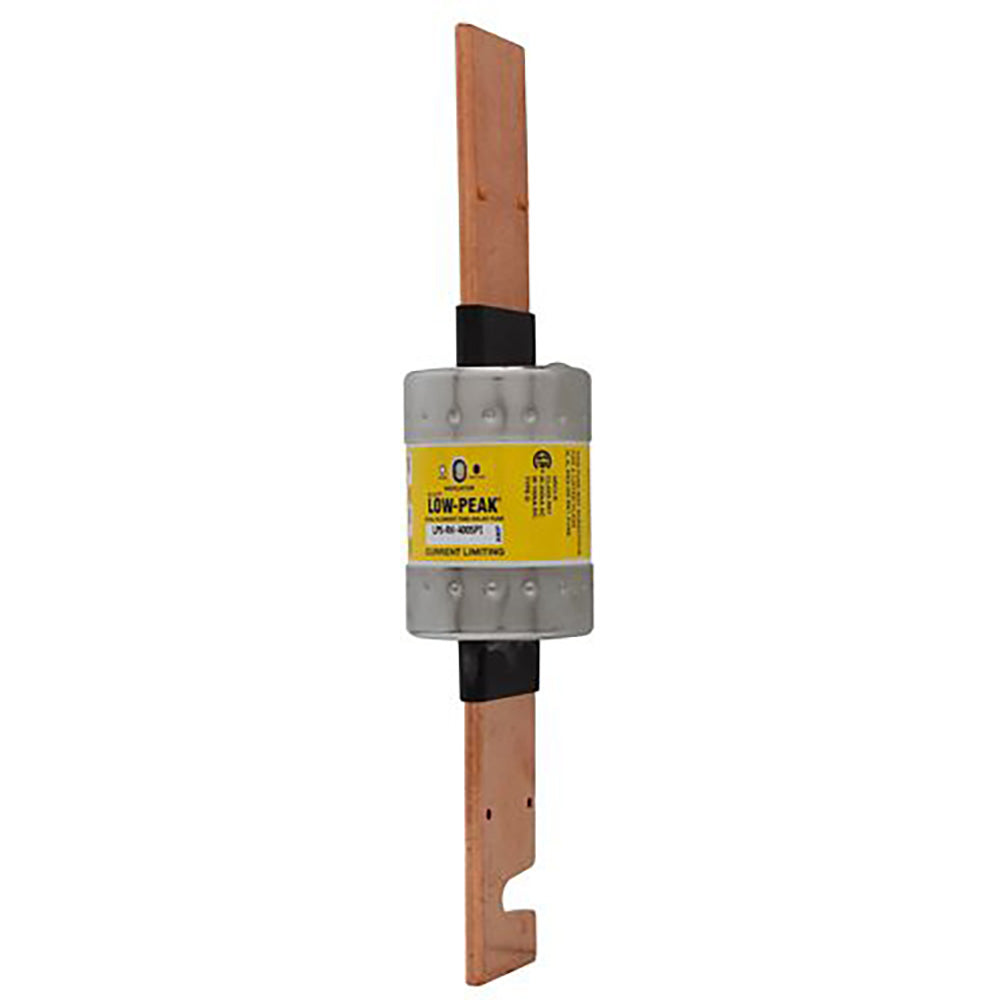

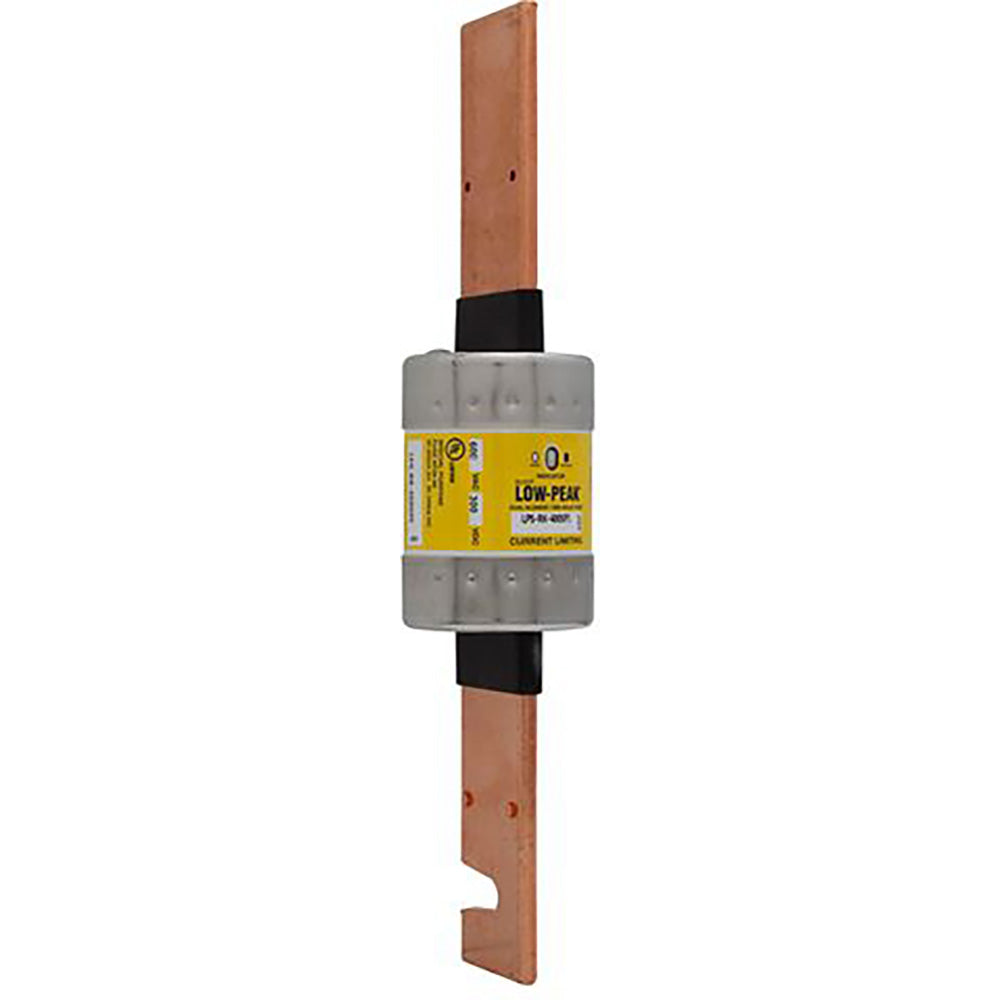

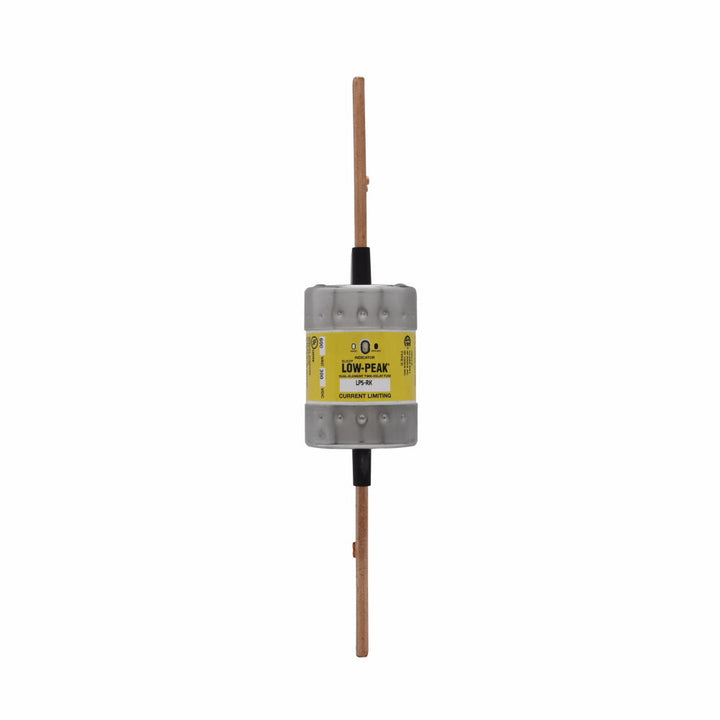

Bussmannn LPS-RK-400SPI - Low-Peak Fuse 400A (300kA@600V Interrupt Rating)

Bussmannn LPS-RK-400SPI is a Low-Peak time-delay fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 400A current capacity with a 300kA interrupting rating at 600V for high-fault protection. The RK1-class fuse measures 11.63" in length with a 2.36" diameter barrel construction, weighing 2 lb for robust physical durability. UL/CSA/CE certified, this fuse meets stringent safety standards for commercial and industrial applications including motor control centers, switchgear, and power distribution equipment.

Key Features & Specifications

• Type: LPS-RK time-delay current-limiting fuse (RK1 class)
• Voltage: 600V AC/DC
• Current: 400A
• Dimensions: 11.63"L x 2.36"W x 2.36"H
• Weight: 2 lb
• Standards: UL 248, CSA C22.2, CE
• Applications: Industrial power distribution, MCCs, switchgear
• AIC rating: 300kA@600V
• Class Rating: RK1
• Barrels: 1
• Diameter: 2.36"

Product Identification

• UPC: 051712627436
• GTIN: 00051712627436
