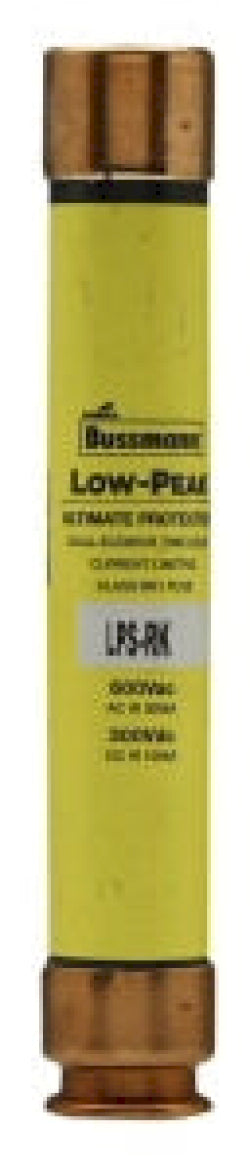

Eaton Bussmann LPS-RK-35SP - Low-Peak Time-Delay Fuse 35A 600V

Bussmann
Price
Save $1,196.33
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price
Eaton Bussmann LPS-RK-35SP is a Low-Peak time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 35A current rating and a 600V AC voltage rating, with a compact physical profile measuring 5.5 inches in length and 1.06 inches in diameter. The fuse is constructed as a single-barrel, RK1 class device with a high interrupting rating of 300kA at 600V, ensuring reliable protection against short-circuits and overloads. It complies with key industry standards including UL and CSA certifications. Typical applications include the protection of motors, transformers, and conductors where a time-delay characteristic is required to handle harmless transient overloads.

Key Features & Specifications
  • Type: Low-Peak (LPS-RK), time-delay, current-limiting fuse, single barrel
  • Voltage Rating: 600V AC
  • Current Rating: 35A
  • Dimensions: 5.5 in L x 1.06 in H x 1.06 in W (139.7 mm x 26.9 mm x 26.9 mm)
  • Diameter: 1.06 in (26.9 mm)
  • Weight: 2.6 lb (1.18 kg)
  • Class Rating: RK1
  • AIC Rating: 300,000 Amps @ 600V
  • Standards: CE, UL (Guide JFHR, JDDZ, File E4273), CSA (Class 1422-02, File 53787, C22.2 No. 248.12)
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712548373
  • GTIN: 00051712548373
