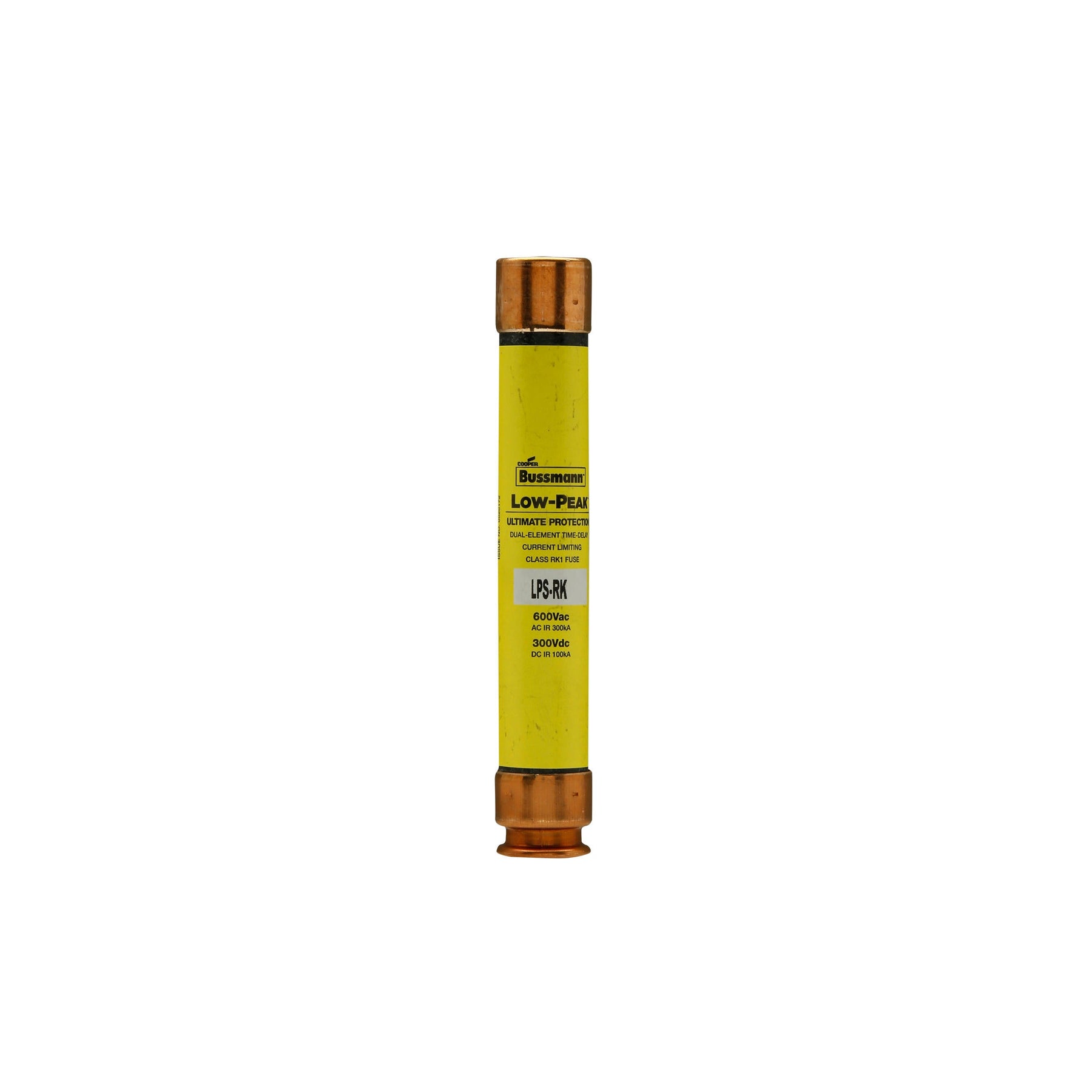

Bussmann LPS-RK-30SP - Low-Peak Time-Delay Fuse 30A (300kA AIC @600V RK1 Class)

Bussmann LPS-RK-30SP is a Low-Peak time-delay fuse designed for comprehensive circuit protection in industrial electrical systems. It features a 600V AC voltage rating with a 30A current rating, providing reliable overload and short-circuit protection. The fuse construction includes a single-barrel design with 0.81-inch diameter and 5-inch length, weighing 1 lb, engineered for durable performance. It meets UL, CSA, and CE standards including UL File E4273 and CSA Class 1422-02. Typical applications include motor branch circuits, transformers, and industrial control panels where current-limiting protection is required.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 30A
• Dimensions: 5 inches length, 0.81 inches diameter
• Standards: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12, CE
• Applications: Motor circuits, transformers, industrial control panels
• AIC rating: 300kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712548366
• GTIN: 00051712548366
