Eaton Bussmann LPS-RK-3-2/10SP - Low-Peak Time-Delay Fuse 3A 600V
Eaton Bussmann LPS-RK-3-2/10SP - Low-Peak Time-Delay Fuse 3A 600V
Eaton Bussmann LPS-RK-3-2/10SP - Low-Peak Time-Delay Fuse 3A 600V
Eaton Bussmann LPS-RK-3-2/10SP - Low-Peak Time-Delay Fuse 3A 600V

Eaton Bussmann LPS-RK-3-2/10SP - Low-Peak Time-Delay Fuse 3A 600V

Bussmann
Price
Save $1,120.69
/
Title
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price

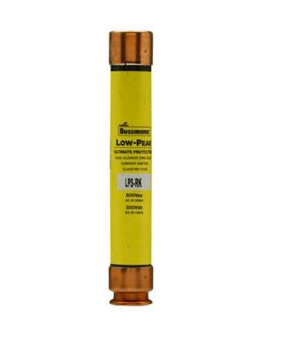

Eaton Bussmann LPS-RK-3-2/10SP is a Low-Peak time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 600V AC rating and a 3A current rating, providing a high 300kA interrupting capacity at its rated voltage. The fuse is constructed as a single-barrel, RK1 class device with a compact form factor measuring 5 inches in length and 0.81 inches in diameter, weighing 0.17 lb. It complies with major industry standards including UL and CSA, certified under UL Guide JFHR/JDDZ and CSA C22.2 No. 248.12. This fuse is typically applied in motor control centers, panelboards, and switchboards to protect against short-circuits and overloads.

Key Features & Specifications
  • Type: Low-Peak time-delay, single-barrel fuse, RK1 class
  • Voltage Rating: 600V AC
  • Current Rating: 3A
  • Dimensions: 5 in L x 0.81 in H x 0.81 in W (Diameter: 0.81 in)
  • Weight: 0.17 lb
  • Standards: CE, UL (File E4273, Guide JFHR/JDDZ), CSA (File 53787, Class 1422-02, C22.2 No. 248.12)
  • AIC Rating: 300,000 Amps @ 600V
  • Family: Low-Peak
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712548199
  • GTIN: 00051712548199
