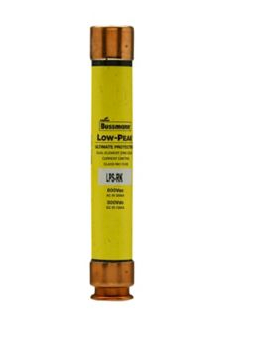

Eaton Bussmann LPS-RK-3-1/2SP - Low-Peak Time-Delay Fuse 3A 600V (Class RK1, 300kA AIC)

Eaton Bussmann LPS-RK-3-1/2SP is a Low-Peak time-delay fuse designed for comprehensive circuit protection in industrial electrical systems. This Class RK1 fuse features a 600V AC voltage rating with a 3A current rating and provides exceptional 300kA interrupting capacity at rated voltage. The single-barrel construction measures 5 inches in length with a 0.81-inch diameter and 1.17 lb weight, engineered for reliable performance in demanding environments. It complies with UL, CSA, and CE standards including UL File E4273 and CSA Class 1422-02, ensuring adherence to industry safety requirements. Typical applications include motor circuit protection, transformer protection, and industrial control panel applications where time-delay characteristics and high interrupting ratings are essential.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, Class RK1, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 3A
• Dimensions: 5 inches length, 0.81 inches diameter
• Standards: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12, CE
• Applications: Motor circuit protection, transformer protection, industrial control panels
• AIC rating: 300kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 1.17 lb
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712548205
• GTIN: 00051712548205
