Bussmannn LPS-RK-2SP - Low-Peak Fuse 2A 600V (300kA AIC)

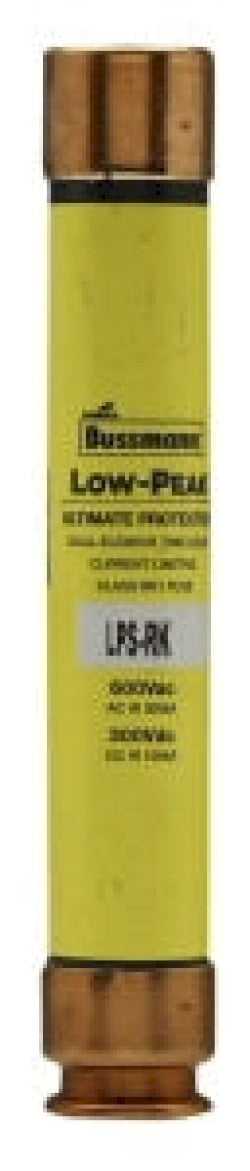

Bussmannn LPS-RK-2SP is a Low-Peak time-delay fuse designed for circuit protection in low-voltage applications. It features a 600V AC/DC voltage rating and 2A current rating with a 300kA interrupting capacity at 600V, housed in a compact 5-inch body with a 0.81-inch diameter and 1 lb weight. Constructed as a single-barrel RK1 class fuse, it meets CE, UL (E4273), and CSA (C22.2 No. 248.12) standards for industrial safety. This fuse is commonly used in motor control centers, transformers, and feeder circuits requiring high fault current protection with time-delay characteristics.

Key Features & Specifications

• Type: Time-delay fuse with Low-Peak current-limiting design
• Voltage Rating: 600V AC/DC
• Current Rating: 2A
• Dimensions: 5 in length, 0.81 in diameter
• Standards: CE, UL (E4273, JFHR/JDDZ), CSA (1422-02, 53787, C22.2 No. 248.12)
• Applications: Motor controls, transformers, feeder circuits
• Class Rating: RK1
• AIC rating: 300kA@600V
• Barrels: 1
• Weight: 1 lb

Product Identification

• UPC: 051712548144
• GTIN: 00051712548144
