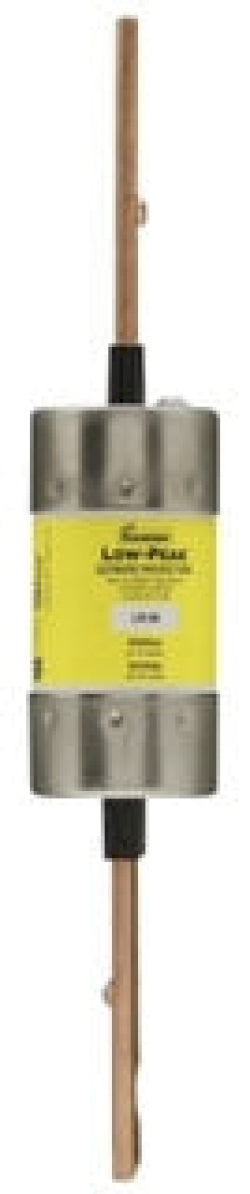

Eaton Bussmann LPS-RK-225SP - Low-Peak Fuse 225A 600V (RK1, 300kA AIC)

Bussmann
Price
Save $1,078.73
/
Title
  • Low stock - 3 items left
  • Backordered, shipping soon
Call for Price
Eaton Bussmann LPS-RK-225SP is a Low-Peak time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 600V AC rating and a 225A current rating, providing a high 300kA interrupting capacity at 600V for reliable short-circuit protection. The fuse is constructed as a single-barrel, RK1 class device with a 2.36-inch diameter and an overall length of 11.63 inches, weighing 4.6 lb. It complies with key industry standards including UL and CSA, specifically meeting UL Special Purpose Guide JFHR/JDDZ and CSA C22.2 No. 248.12. Typical applications include protecting motor circuits, transformers, and distribution panels where current-limiting and time-delay characteristics are required.

Key Features & Specifications
  • Type: Low-Peak (LPS-RK), time-delay, current-limiting, medium voltage fuse, single barrel
  • Voltage Rating: 600V AC
  • Current Rating: 225A
  • Dimensions: 11.63 in L x 2.36 in H x 2.36 in W (295.4 mm x 59.9 mm x 59.9 mm)
  • Weight: 4.6 lb (2.09 kg)
  • Diameter: 2.36 in (59.9 mm)
  • Class Rating: RK1
  • AIC Rating: 300,000A @ 600V
  • Barrels: 1
  • Certification: CE, UL (File E4273, Guide JFHR/JDDZ), CSA (File 53787, Class 1422-02, C22.2 No. 248.12)
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712548519
  • GTIN: 00051712548519
