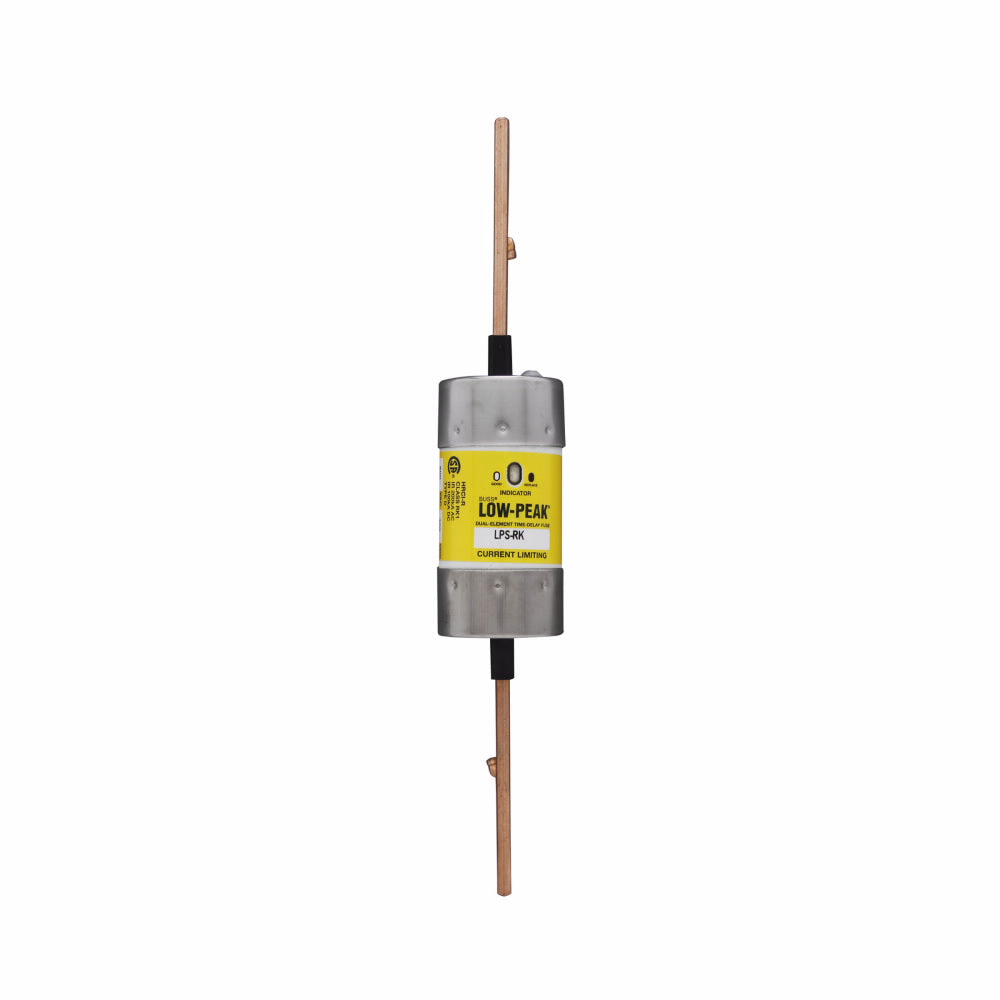

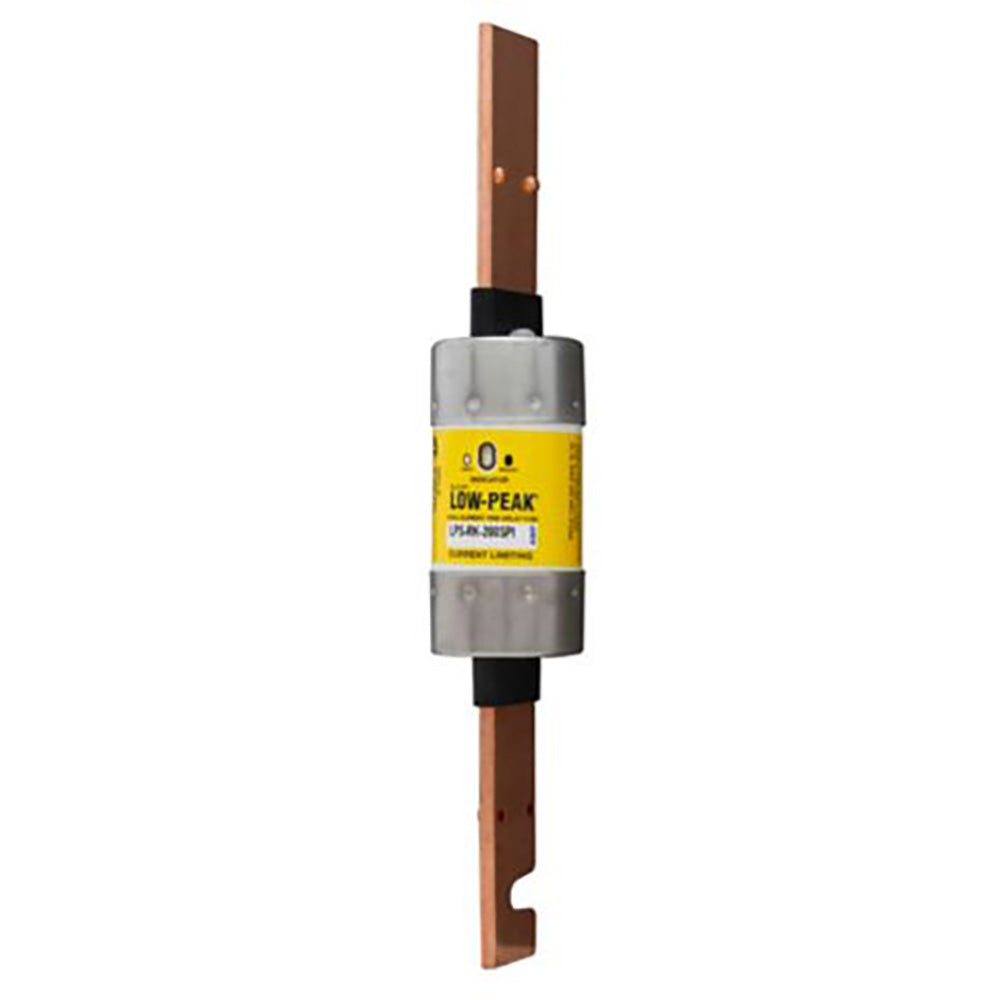

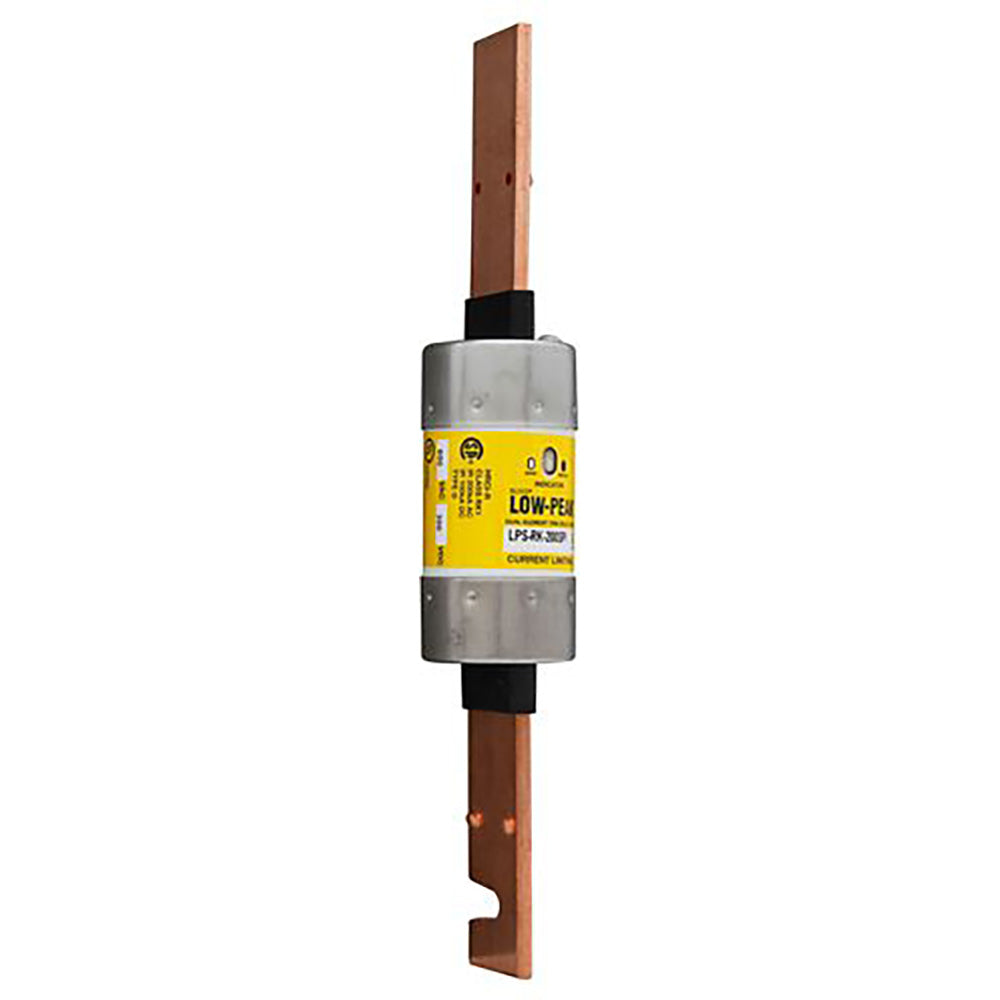

Eaton Bussmann LPS-RK-200SPI - Low-Peak Time-Delay Fuse 200A (300kA AIC @600V)

Eaton Bussmann LPS-RK-200SPI is a Low-Peak time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. This Class RK1 fuse provides 200A current protection with a 600V AC voltage rating and features exceptional 300kA interrupting capacity for high-fault current environments. The single-barrel construction measures 9-5/8 inches in length with a 1.61-inch diameter and 1 lb weight, utilizing current-limiting technology to protect against short-circuits and overload conditions. Certified to UL, CSA, and CE standards including UL File E4273 and CSA File 53787, this fuse meets rigorous safety requirements for industrial applications. Typical installations include motor branch circuits, feeder circuits, and transformer protection where selective coordination and time-delay characteristics are essential.

Key Features & Specifications

• Type: Low-Peak time-delay current-limiting fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 200A
• Dimensions: 9-5/8 inches length, 1.61 inches diameter
• Weight: 1 lb
• Standards: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12, CE
• Applications: Motor branch circuits, feeder circuits, transformer protection
• Class Rating: RK1
• AIC rating: 300kA@600V
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 051712626965
• GTIN: 00051712626965
