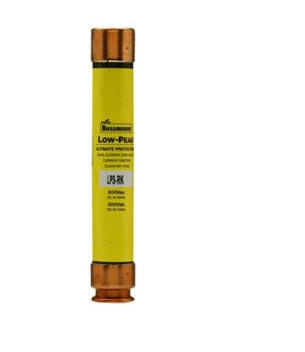

Eaton Bussmann LPS-RK-2-8/10SP - Low-Peak Time-Delay Fuse (2A, 600V, 300kA AIC)
Eaton Bussmann LPS-RK-2-8/10SP - Low-Peak Time-Delay Fuse (2A, 600V, 300kA AIC)
Eaton Bussmann LPS-RK-2-8/10SP - Low-Peak Time-Delay Fuse (2A, 600V, 300kA AIC)
Eaton Bussmann LPS-RK-2-8/10SP - Low-Peak Time-Delay Fuse (2A, 600V, 300kA AIC)

Eaton Bussmann LPS-RK-2-8/10SP - Low-Peak Time-Delay Fuse (2A, 600V, 300kA AIC)

Bussmann
Price
Save $50.98
/
Title
  • Low stock - 10 items left
  • Backordered, shipping soon
Call for Price
Eaton Bussmann LPS-RK-2-8/10SP is a Low-Peak time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 600V AC rating and a 2A current rating, providing a high 300kA interrupting capacity at its rated voltage for reliable fault protection. The fuse is constructed as a single-barrel, RK1 class device with a compact form factor measuring 5 inches in length and 0.81 inches in diameter, weighing 0.17 lb. It complies with key industry standards including UL and CSA, specifically meeting UL Guide JFHR/JDDZ and CSA C22.2 No. 248.12. This fuse is typically applied in motor control centers, panelboards, and switchboards where its time-delay characteristic helps prevent nuisance tripping from inrush currents.

Key Features & Specifications
  • Type: Low-Peak time-delay fuse, single barrel, RK1 class
  • Voltage Rating: 600V AC
  • Current Rating: 2A
  • Dimensions: 5 in L x 0.81 in H x 0.81 in W (Diameter: 0.81 in)
  • Weight: 0.17 lb
  • Standards: CE, UL (Guide JFHR, JDDZ, File E4273), CSA (Class 1422-02, File 53787, C22.2 No. 248.12)
  • AIC Rating: 300kA @ 600V
  • Class Rating: RK1
  • Barrels: 1
  • Country of Origin: Mexico


Product Identification
  • UPC: 05171254817
  • GTIN: 00051712548175
