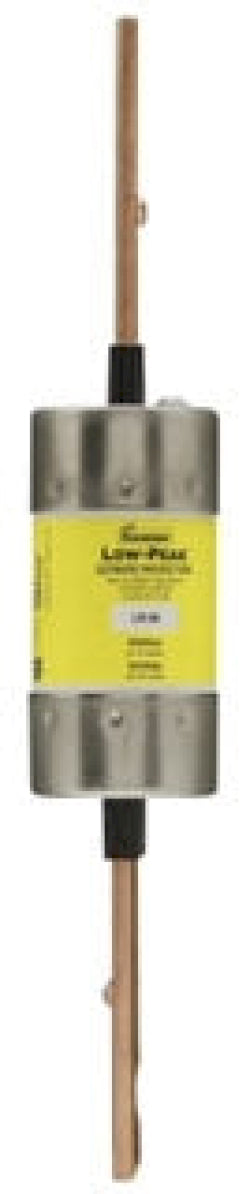

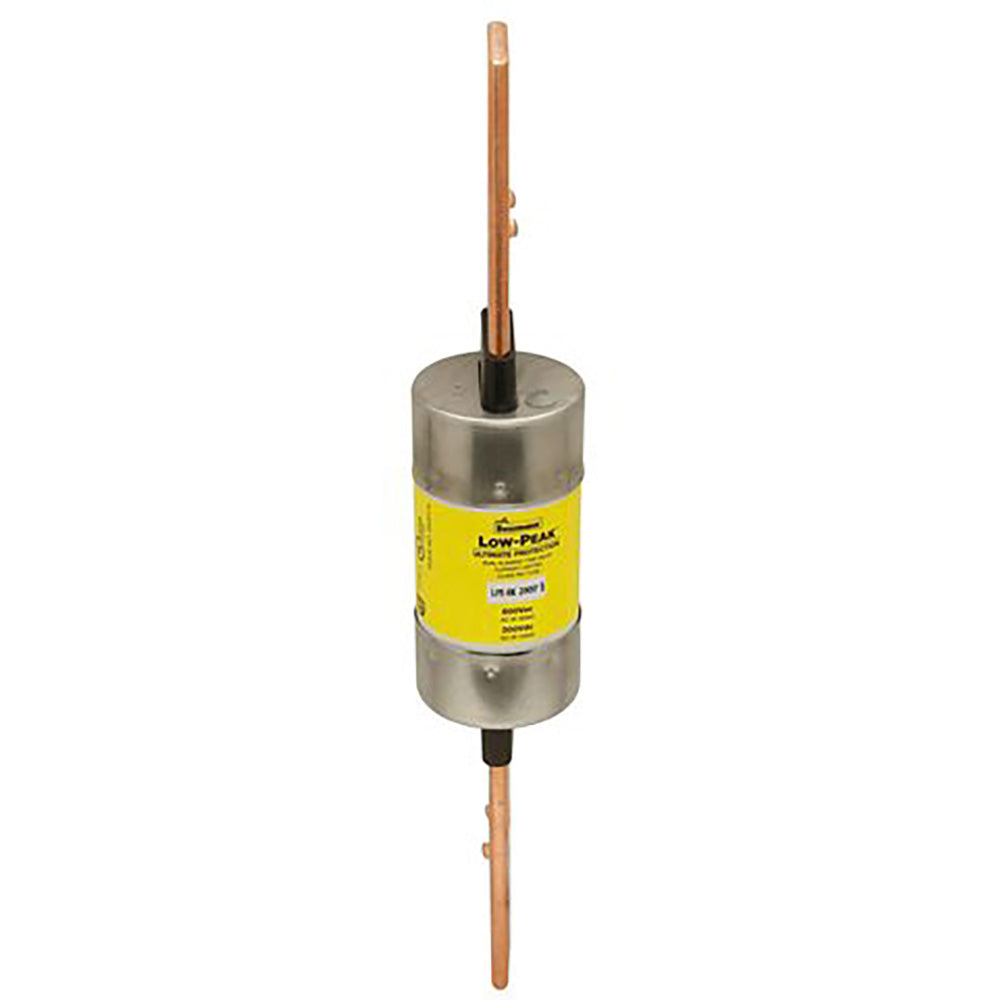

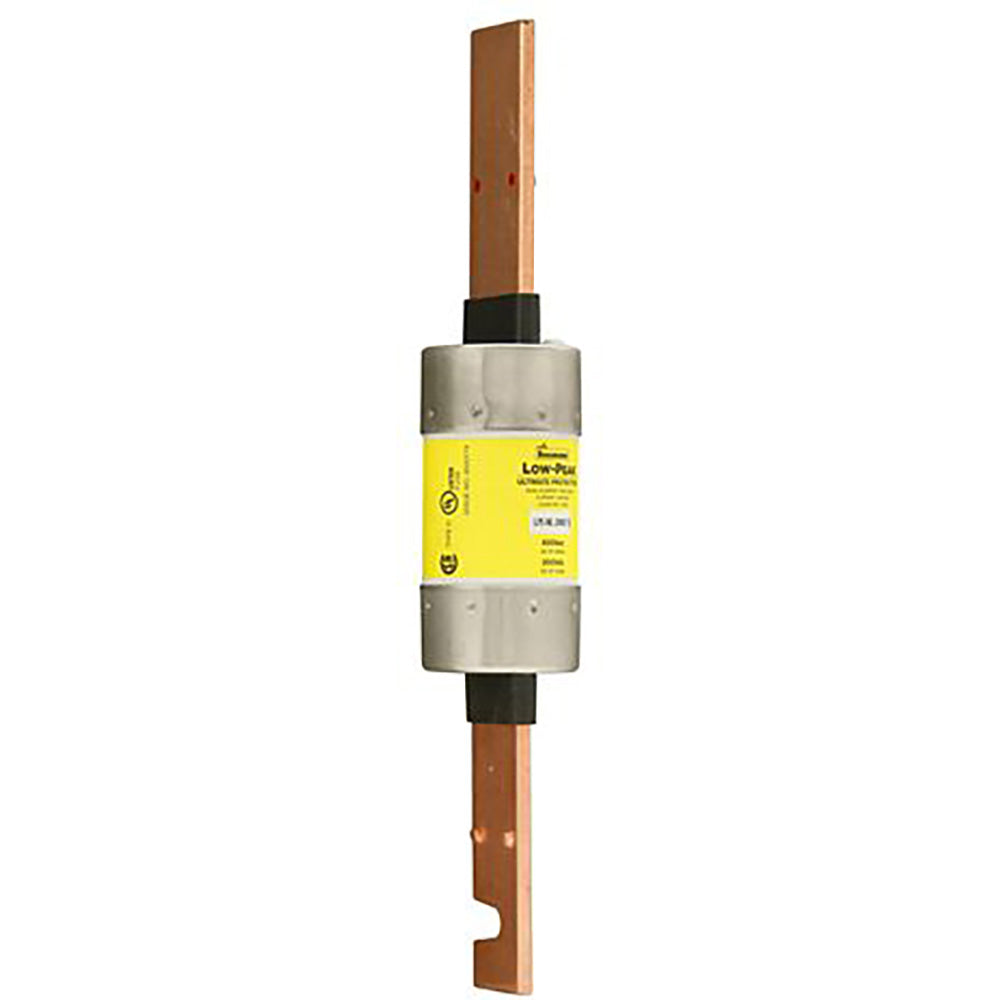

Bussmannn LPS-RK-175SP - Low-Peak Time-Delay Fuse 175A@600V (300kA AIC)

Bussmannn LPS-RK-175SP is a Low-Peak time-delay fuse designed for circuit protection in low-voltage industrial applications. It features a 600V AC/DC voltage rating and 175A current rating with a 300kA interrupting capacity at 600V, housed in a compact 1.61-inch diameter, 9-5/8-inch long RK1-class barrel construction. The fuse meets UL, CSA, and CE standards (File E4273, CSA 1422-02) with time-delay characteristics for motor circuit protection. Typical applications include industrial control panels, HVAC systems, and power distribution equipment requiring selective coordination.

Key Features & Specifications

• Type: LPS-RK time-delay fuse, single barrel
• Voltage Rating: 600V AC/DC
• Current Rating: 175A
• Dimensions: 9-5/8 in length, 1.61 in diameter
• Standards: UL (Guide JFHR/JDDZ), CSA C22.2 No. 248.12, CE
• Applications: Motor circuits, transformers, industrial controls
• Class Rating: RK1
• AIC rating: 300kA@600V
• Weight: 1 lb
• Certification: File E4273, CSA 1422-02, File 53787

Product Identification

• UPC: 051712548496
• GTIN: 00051712548496
