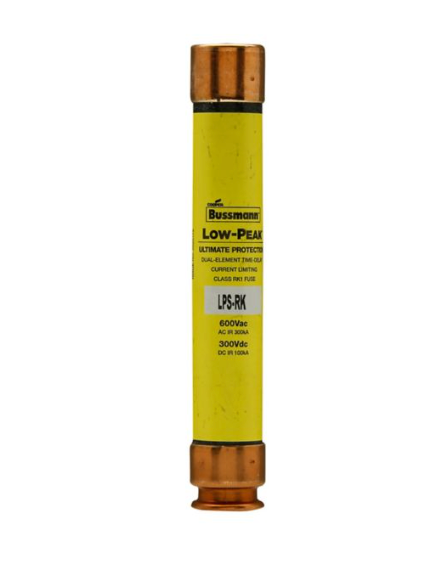

Eaton Bussmann LPS-RK-17-1/2SP - Low-Peak RK1 Fuse 17A 600V (300kA AIC Rating)

Eaton Bussmann LPS-RK-17-1/2SP is a low voltage fuse designed for providing reliable circuit protection in industrial electrical systems with its 17A current rating and 600V voltage rating. This Class RK1 fuse features a time-delay characteristic and low peak design to handle temporary overloads while providing superior short-circuit protection with a 300kA interrupting rating at 600V. Constructed with a single barrel design, the fuse measures 5 inches in length with a 0.81-inch diameter and weighs 1 lb, featuring robust construction for demanding environments. The fuse complies with multiple industry standards including UL, CSA C22.2 No. 248.12, and CE certifications for safety and performance. Typical applications include motor branch circuit protection, transformer protection, and industrial control panel circuits where coordinated protection is essential.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, Class RK1, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 17A
• Dimensions: 5 inches length, 0.81 inches diameter
• Weight: 1 lb
• Standards: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12, CE
• Applications: Motor branch circuits, transformer protection, industrial control panels
• AIC rating: 300kA at 600V
• Class Rating: RK1
• Barrels: 1
• Country of Origin: Mexico

Product Identification

• UPC: 051712548335
• GTIN: 00051712548335
