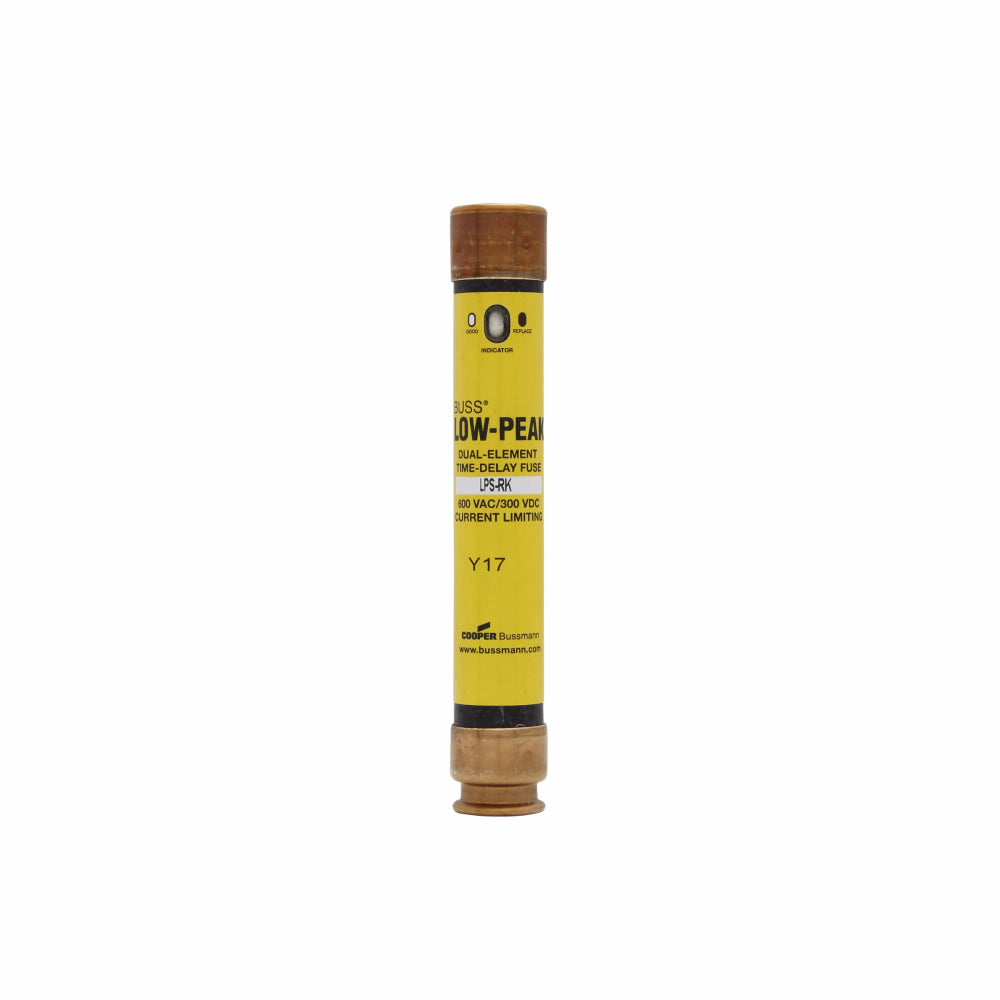

Bussmannn LPS-RK-15SPI - Low-Peak Fuse 15A 600V (300kA AIC, RK1 Class)

Bussmannn LPS-RK-15SPI is a Low-Peak time-delay fuse designed for circuit protection in industrial electrical systems. It features a 600V AC/DC voltage rating and 15A current rating with a 300kA interrupting capacity at 600V, housed in a compact 5-inch body with a 0.81-inch diameter and RK1 class rating. The fuse is constructed with a single-barrel design and meets multiple certifications including UL, CSA, and CE standards for safety and performance. Its time-delay characteristics make it suitable for motor circuits, transformers, and other inductive loads requiring inrush current tolerance.

Key Features & Specifications

• Type: LPS-RK time-delay fuse with single-barrel construction
• Voltage Rating: 600V AC/DC
• Current Rating: 15A
• Dimensions: 5 in length, 0.81 in diameter
• Standards: UL (E4273), CSA (53787, C22.2 No. 248.12), CE
• Applications: Motor circuits, transformers, industrial control panels
• Class Rating: RK1
• AIC rating: 300kA@600V
• Weight: 1 lb
• Country of Origin: Mexico

Product Identification

• UPC: 051712618472
• GTIN: 00051712618472
