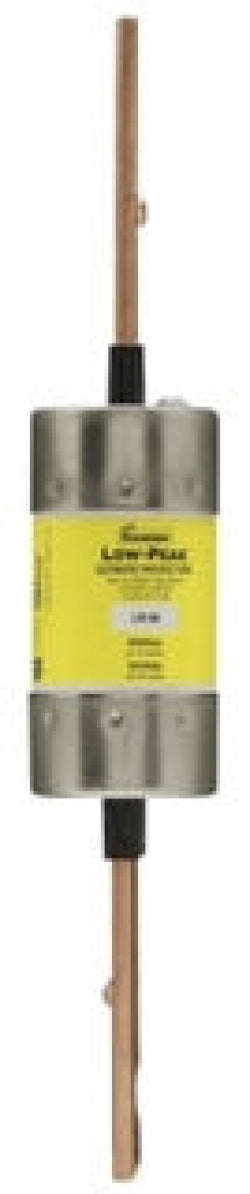

Bussmann LPS-RK-150SP - Class RK1 Fuse 150A 600V (300kA AIC Rating)

The Bussmann LPS-RK-150SP is a Class RK1 low-voltage current-limiting fuse designed for circuit protection in industrial electrical systems. It features a 600V AC voltage rating with a 150A current rating, providing reliable overcurrent protection with a high 300kA interrupting capacity at 600V. The fuse construction includes a single-barrel design measuring 1.61 inches in diameter with a 9-5/8 inch length and weighs 1 lb, utilizing current-limiting technology for enhanced safety. This fuse complies with multiple industry standards including UL, CSA, and CE certifications, meeting requirements for special purpose applications. Typical applications include motor branch circuit protection, feeder circuit protection, and industrial control panel applications where high interrupting capacity and current limitation are required.

Key Features & Specifications

• Type: Low-Peak Class RK1 current-limiting fuse, single barrel design
• Voltage Rating: 600V AC
• Current Rating: 150A
• Dimensions: 1.61" diameter x 9-5/8" length
• Weight: 1 lb
• Standards: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12, CE
• Applications: Motor branch circuit protection, feeder circuits, industrial control panels
• AIC rating: 300kA@600V
• Class Rating: RK1
• Barrels: 1
• Country of Origin: Mexico
• Family: Low-Peak

Product Identification

• UPC: 051712548489
• GTIN: 00051712548489
