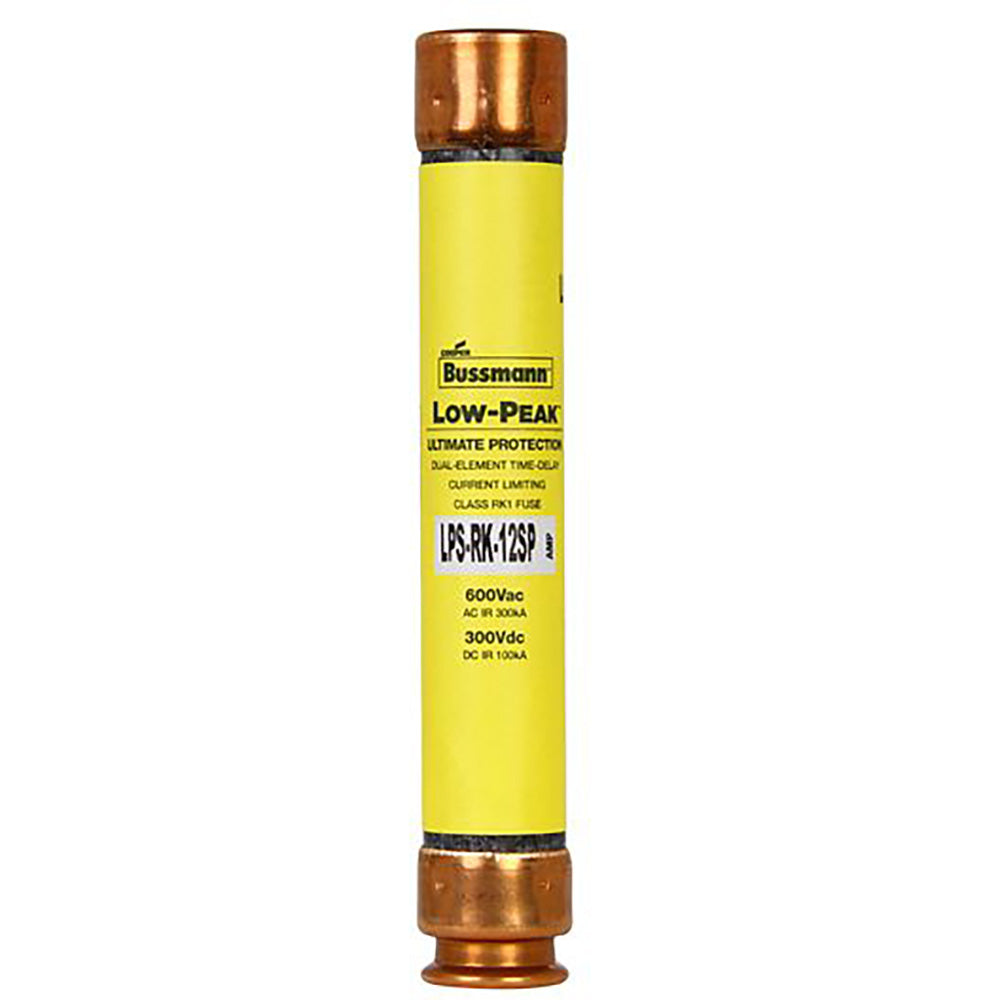

Eaton Bussmann LPS-RK-12SP - Low-Peak Time-Delay Fuse 12A 600V (RK1 Class, 300kA AIC)

The Bussmann LPS-RK-12SP is a Low-Peak time-delay fuse designed for reliable circuit protection in industrial electrical systems. It features a 12A current rating and 600V voltage rating with a high 300kA interrupting capacity at 600VAC. The fuse construction includes a single-barrel design with 0.81-inch diameter and 5-inch length, weighing 1 lb, meeting RK1 class requirements for time-delay characteristics. It complies with UL, CSA, and CE standards including UL File E4273 and CSA File 53787. This fuse is typically applied in motor branch circuits, transformers, and other equipment requiring time-delay protection against overloads and short circuits.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 12A
• Dimensions: 5 inches length, 0.81 inches diameter
• Standards: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12, CE
• Applications: Motor circuits, transformer protection, industrial control systems
• AIC rating: 300kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 1 lb
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712548311
• GTIN: 00051712548311
