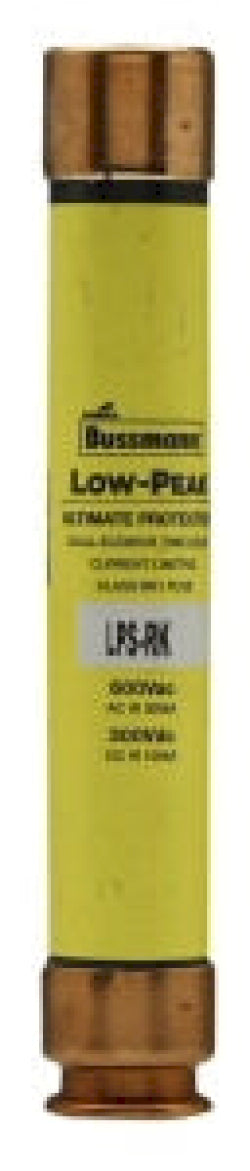

Bussmann LPS-RK-10SP - Low-Peak Time-Delay Fuse 10A (300kA AIC @600V RK1 Class)

Bussmann LPS-RK-10SP is a Low-Peak time-delay fuse designed for circuit protection in industrial electrical systems requiring high interrupting capacity and motor starting capability. It features a 600V AC voltage rating with a 10A current rating and provides 300kA interrupting capacity at rated voltage for reliable fault protection. The fuse construction utilizes a single-barrel design with 0.81-inch diameter and 5-inch length, manufactured to RK1 class specifications for current-limiting performance. It meets multiple industry standards including UL, CSA, and CE certifications for safety and reliability. Typical applications include motor branch circuits, transformer protection, and industrial control panels where time-delay characteristics prevent nuisance openings during temporary overload conditions.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, RK1 class, current-limiting
• Voltage Rating: 600V AC
• Current Rating: 10A
• Dimensions: 5 inches length, 0.81 inches diameter
• Standards: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12, CE
• Applications: Motor branch circuits, transformer protection, industrial control panels
• AIC rating: 300kA@600V
• Class Rating: RK1
• Barrels: 1
• Weight: 1 lb

Product Identification

• UPC: 051712548304
• GTIN: 00051712548304
