Cooper Bussmann LPN-RK-9SP Low Voltage Low-Peak 250V 9A Fuse - Essential Electric Supply
Cooper Bussmann LPN-RK-9SP Low Voltage Low-Peak 250V 9A Fuse - Essential Electric Supply

Eaton Bussmann LPN-RK-9SP - Class RK1 Fuse 9A 250V (300kA AIC)

Bussmann
Price
Save $18.92
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

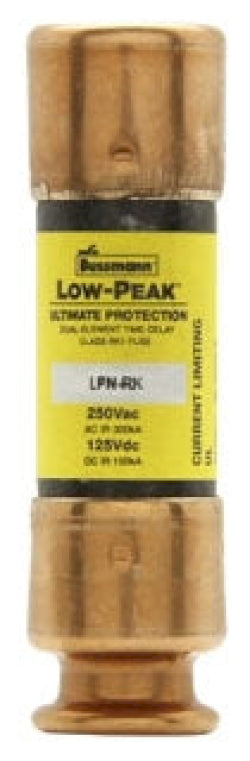

Eaton Bussmann LPN-RK-9SP is a Low-Peak time-delay, Class RK1 fuse designed for branch circuit protection in industrial and commercial electrical systems. It features a 9A current rating and a 250V AC voltage rating, providing a high 300kA interrupting capacity at its rated voltage for reliable fault protection. The fuse is constructed as a single-barrel device with a 0.56-inch diameter and a 2-inch length, weighing 0.5 lb, and is compliant with key industry standards including UL and CSA. This fuse is typically applied to protect motor circuits, transformers, and feeders where a time-delay characteristic is required to handle inrush currents without nuisance opening.

Key Features & Specifications
  • Type: Low-Peak time-delay fuse, Class RK1, single barrel
  • Voltage Rating: 250V AC
  • Current Rating: 9A
  • Dimensions: 2 in L x 0.56 in H x 0.56 in W (50.8mm x 14.2mm x 14.2mm)
  • Weight: 0.5 lb
  • Diameter: 0.56 in (14.2mm)
  • Class Rating: RK1
  • AIC Rating: 300kA @ 250V
  • Barrels: 1
  • Certification: CE, UL (Guide JFHR, JDDZ, File E4273), CSA (Class 1422-02, File 53787, C22.2 No. 248.12)
  • Family: Low-Peak
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712538299
  • GTIN: 00051712538299
