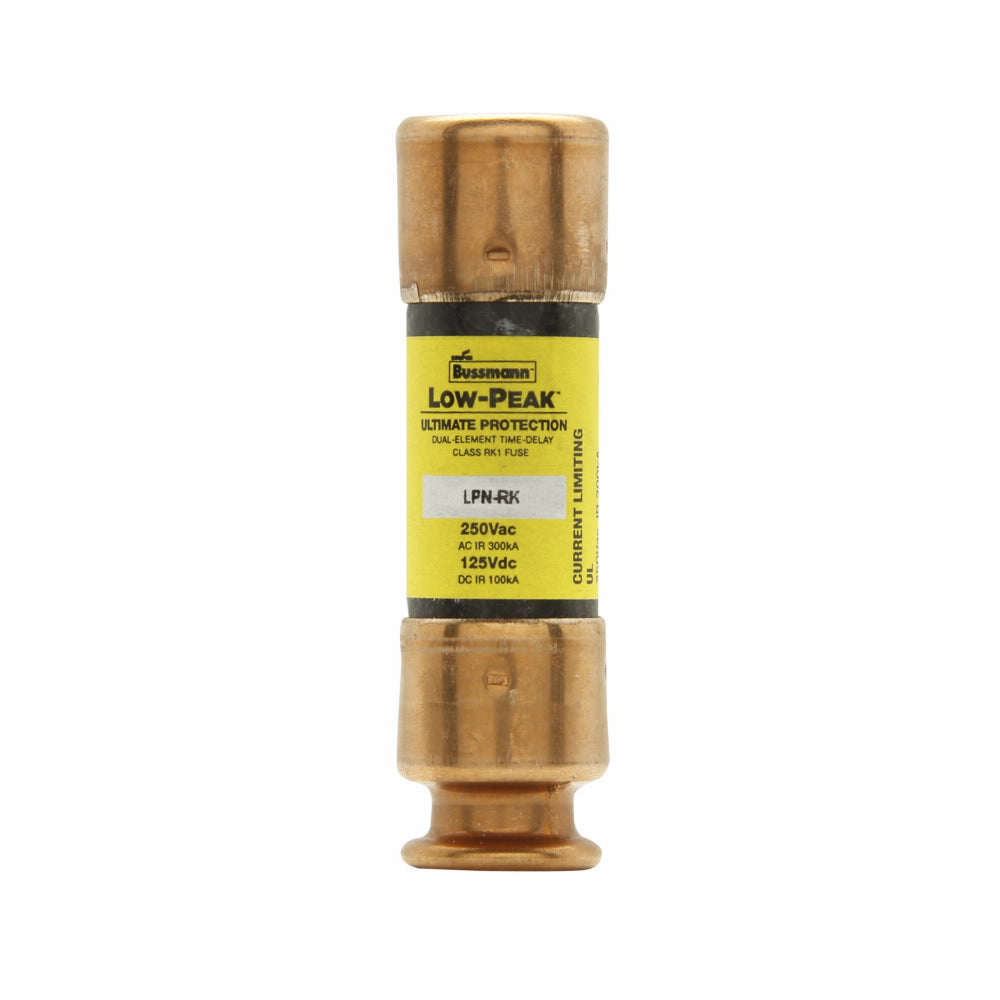

Bussmann LPN-RK-6SP - Low-Peak Time-Delay Fuse 6A 250V

Bussmann
Price
Save $655.39
/
Title
  • Low stock - 2 items left
  • Backordered, shipping soon
Call for Price
The Bussmann LPN-RK-6SP is a Low-Peak time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 6A current rating and a 250V AC voltage rating, providing a high 300kA interrupting capacity at its rated voltage. The fuse is constructed as a single-barrel, RK1 class device with compact dimensions of 2 inches in length and a 0.56-inch diameter, weighing 0.5 lb. It is certified to UL and CSA standards, including CSA C22.2 No. 248.12, and is commonly applied in motor control centers, panelboards, and switchboards to protect against short-circuits and overloads.

Key Features & Specifications
  • Type: Low-Peak (LPN-RK), time-delay, single barrel, current-limiting fuse
  • Voltage Rating: 250V AC
  • Current Rating: 6A
  • Dimensions: 2 in L x 0.56 in H x 0.56 in W (Diameter: 0.56 in)
  • Weight: 0.5 lb
  • Standards: CE, UL (Guide JFHR, JDDZ, File E4273), CSA (Class 1422-02, File 53787, C22.2 No. 248.12)
  • Applications: Branch circuit and feeder protection in industrial panelboards, switchboards, and motor control centers
  • Class Rating: RK1
  • AIC rating: 300kA @ 250V
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712538251
  • GTIN: 00051712538251
