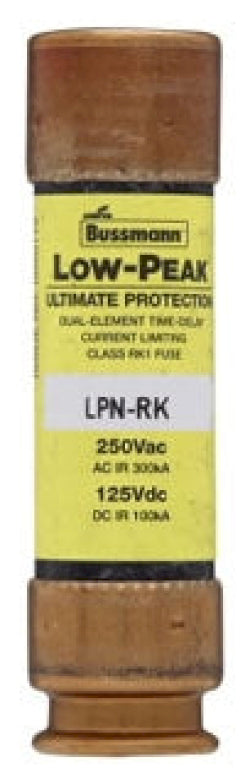

Bussmann LPN-RK-60SP - Low-Peak Time-Delay Fuse 60A (300kA AIC @250V)

Bussmann LPN-RK-60SP is a Low-Peak time-delay fuse designed for circuit protection in industrial electrical systems. It features a 60A current rating and 250V voltage rating with a high 300kA interrupting capacity for reliable fault protection. The fuse has a compact 3-inch length and 0.81-inch diameter construction with single-barrel design weighing 1 lb. It meets UL, CSA, and CE standards including UL File E4273 and CSA Class 1422-02 certifications. This RK1 class fuse is typically used in motor circuits, transformers, and industrial control panels where time-delay characteristics prevent nuisance tripping during temporary overloads.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, single barrel construction
• Voltage Rating: 250V AC
• Current Rating: 60A
• Dimensions: 3 inches length, 0.81 inches diameter
• Standards: UL Special Purpose Guide JFHR, Guide JDDZ, File E4273, CSA Class 1422-02, File 53787, CSA C22.2 No. 248.12, CE
• Applications: Motor circuits, transformers, industrial control panels
• AIC rating: 300kA@250V
• Class Rating: RK1
• Barrels: 1
• Weight: 1 lb
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712538411
• GTIN: 00051712538411
