Bussmann LPN-RK-200SP - RK1 Time-Delay Fuse 200A 250V

Bussmann
Price
Save $272.97
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

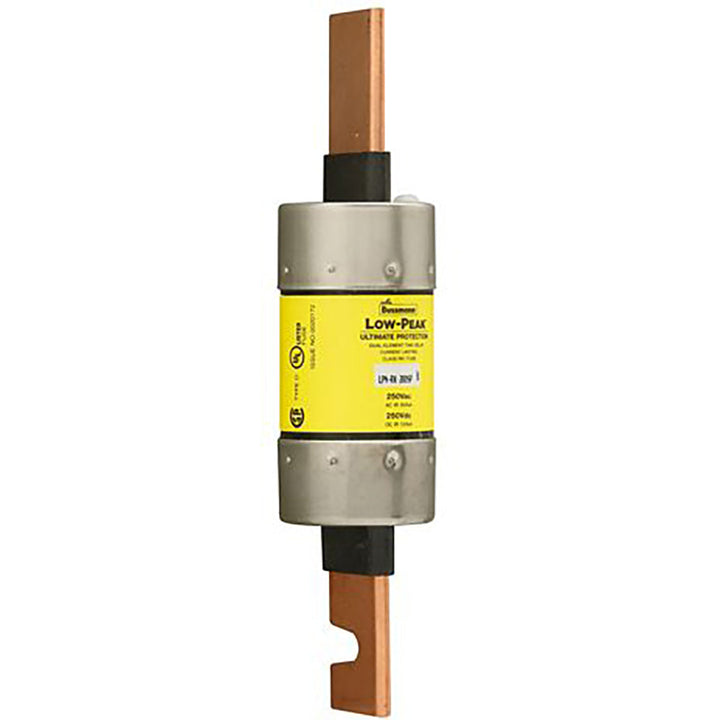

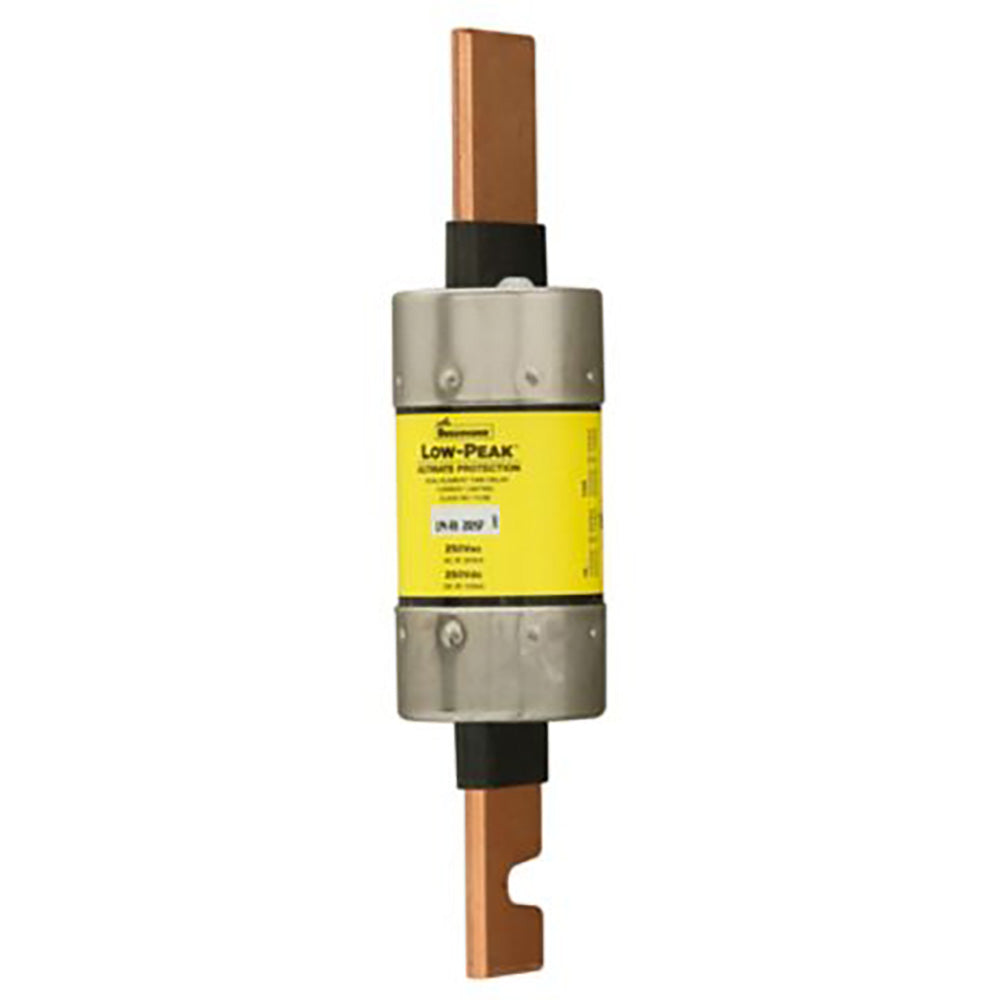

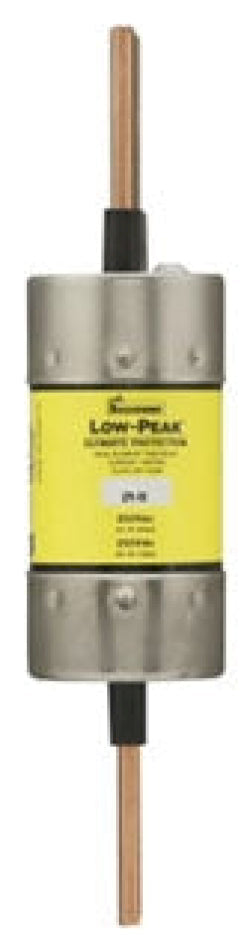

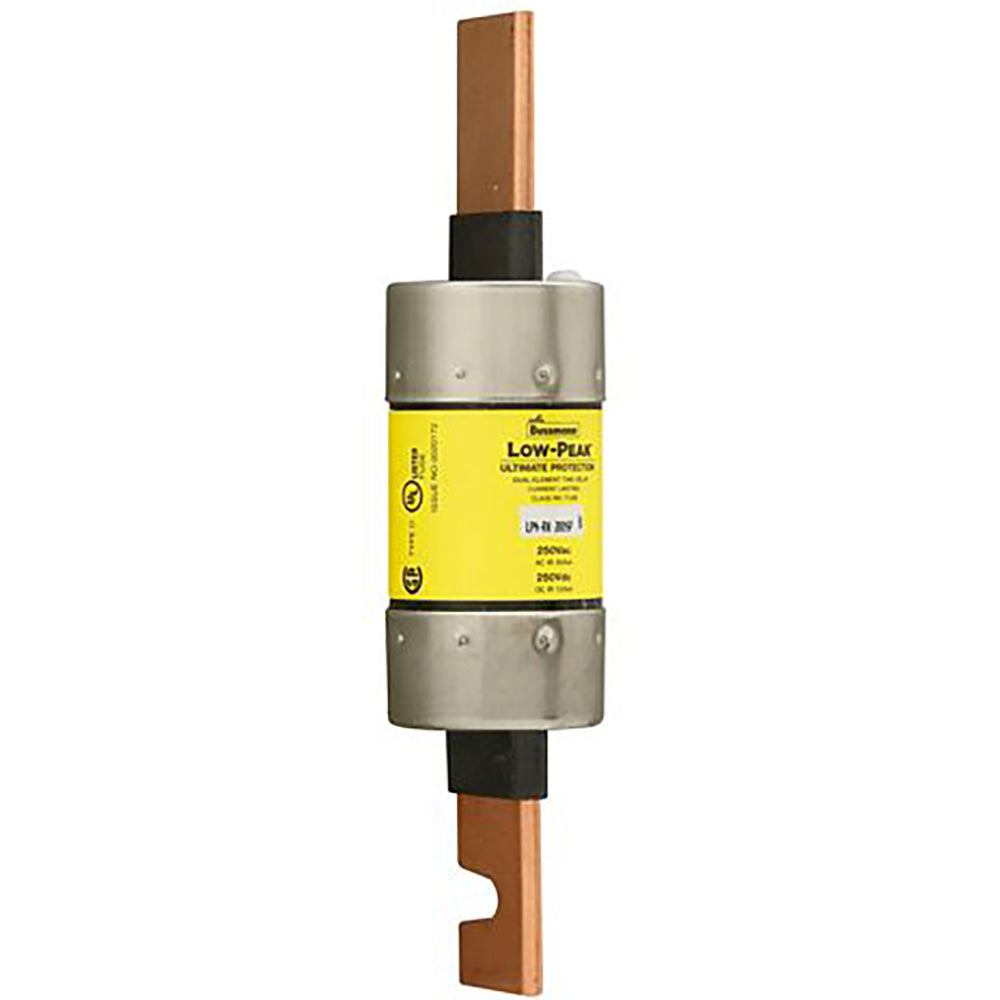

Bussmann LPN-RK-200SP is a Low-Peak time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 200A current rating and a 250V AC voltage rating, with a high 300kA interrupting capacity at rated voltage for reliable fault protection. The fuse is constructed as a single-barrel, RK1 class device with a diameter of 1.61 inches and a length of 7.13 inches, weighing 0.69 lb. It complies with key industry standards including UL and CSA, specifically meeting UL Special Purpose Guide JFHR and CSA C22.2 No. 248.12. Typical applications include protecting motor circuits, transformers, and other equipment where high withstand ratings and time-delay characteristics are required to handle inrush currents.

Key Features & Specifications
  • Type: Low-Peak (LPN-RK), time-delay, current-limiting fuse, single barrel
  • Voltage Rating: 250V AC
  • Current Rating: 200A
  • Dimensions: 7.13 in L x 1.61 in H x 1.61 in W
  • Standards: CE, UL (Guide JFHR, JDDZ, File E4273), CSA (Class 1422-02, File 53787, C22.2 No. 248.12)
  • Applications: Industrial branch circuit and feeder protection for motors, transformers, and conductors
  • Class Rating: RK1
  • AIC rating: 300kA @ 250V
  • Diameter: 1.61 in
  • Weight: 0.69 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712538503
  • GTIN: 00051712538503
