Eaton Bussmann LPJ-7SP - Class J Time-Delay Fuse 7A 600V

Bussmann
Price
Save $1,299.01
/
Title
  • In stock, ready to ship
  • Backordered, shipping soon
Call for Price

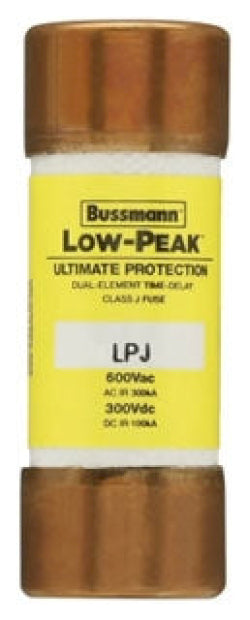

Eaton Bussmann LPJ-7SP is a low-voltage, time-delay fuse designed for branch circuit and feeder protection in industrial electrical systems. It features a 7A current rating and a 600V AC voltage rating, providing a high 300kA interrupting capacity at rated voltage for reliable short-circuit protection. The fuse is constructed as a single-barrel, Class J device with a compact form factor measuring 2.25 inches in length and 0.81 inches in diameter, weighing 0.19 lb. It complies with CE, UL (Special Purpose Guide JFHR), and CSA Class 1422-02 standards, ensuring suitability for protecting motors, transformers, and other inductive loads where withstanding inrush currents is critical.

Key Features & Specifications
  • Type: Low-Peak (LPJ) time-delay, current-limiting fuse
  • Voltage Rating: 600V AC
  • Current Rating: 7A
  • Dimensions: 2.25 in L x 0.81 in H x 0.81 in W
  • Standards: CE / UL-Special Purpose Guide JFHR / CSA Class 1422-02
  • Applications: Branch circuit and feeder protection for motors, transformers, and inductive loads
  • Class Rating: J
  • AIC rating: 300kA @ 600V
  • Barrels: 1
  • Diameter: 0.81 in
  • Weight: 0.19 lb
  • Country of Origin: Mexico


Product Identification
  • UPC: 051712523462
  • GTIN: 00051712523462
