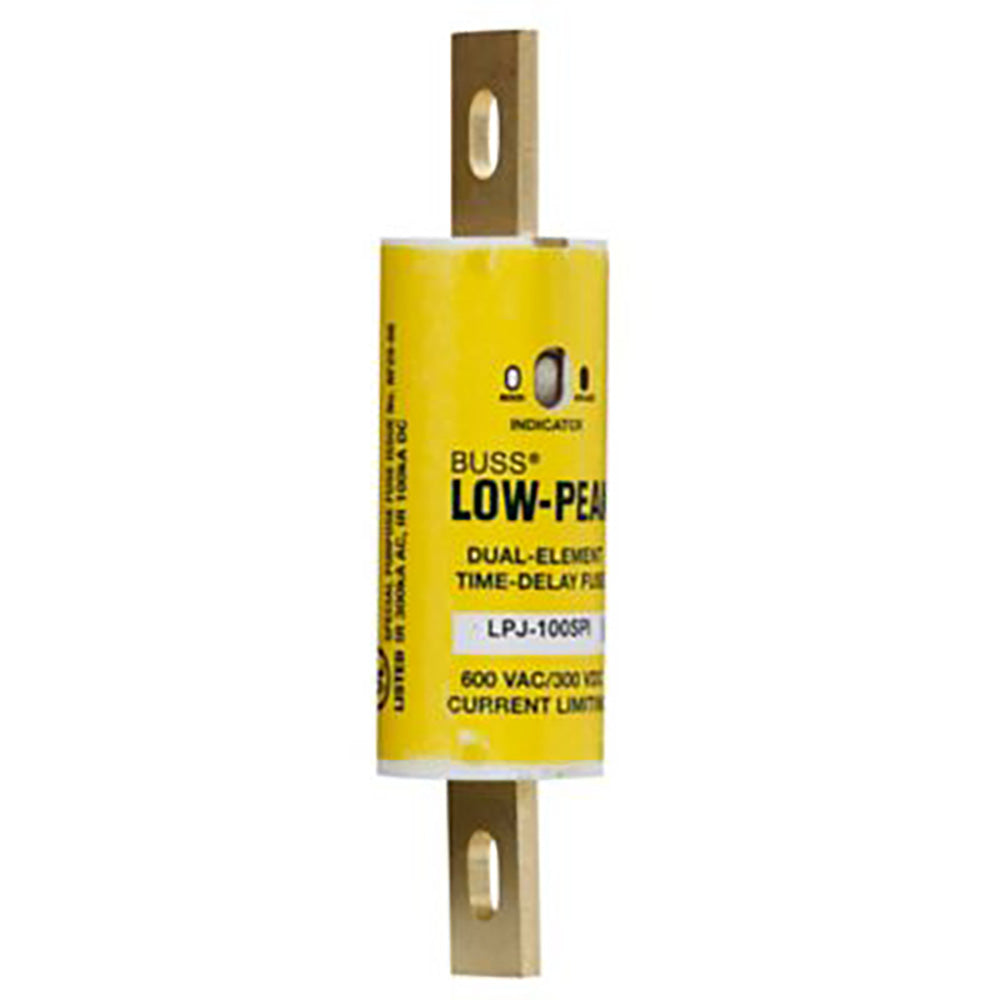

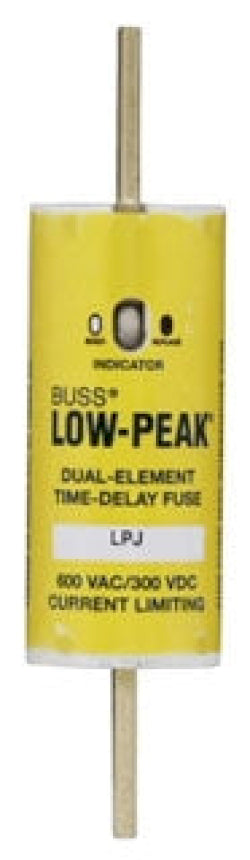

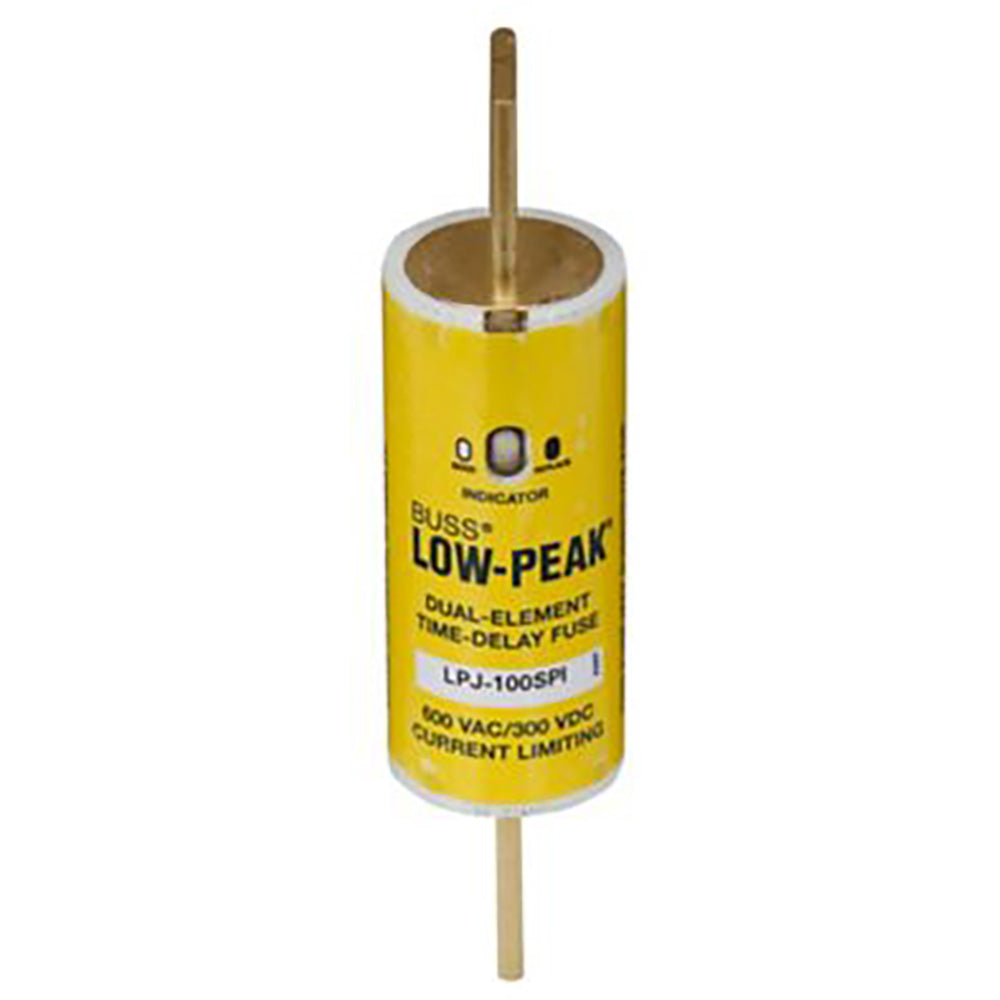

Bussmann LPJ-70SPI - Class J Fuse 70A (300kA AIC @600V)

Bussmann LPJ-70SPI is a Class J low-voltage fuse designed for circuit protection in industrial electrical systems. It features a 600V AC rating with a 70A current capacity and a 300kA interrupting rating at 600V for reliable short-circuit protection. The fuse measures 4-5/8 inches in length with a 1.13-inch diameter and is constructed with a single-barrel design weighing 1.29 lb. It meets CE/UL-Special Purpose Guide JFHR and CSA Class 1422-02 standards, making it suitable for motor branch circuits, transformers, and feeder protection in commercial and industrial applications.

Key Features & Specifications

• Type: LPJ Class J time-delay fuse with low-peak characteristics
• Voltage Rating: 600V AC
• Current Rating: 70A
• Dimensions: 4-5/8 in length x 1.13 in diameter
• Weight: 1.29 lb
• Standards: CE/UL-Special Purpose Guide JFHR, CSA Class 1422-02
• Applications: Motor circuits, transformers, industrial feeders
• Class Rating: J
• Barrels: 1
• AIC rating: 300kA@600V
• Country of Origin: Mexico

Product Identification

• UPC: 051712621199
• GTIN: 00051712621199
