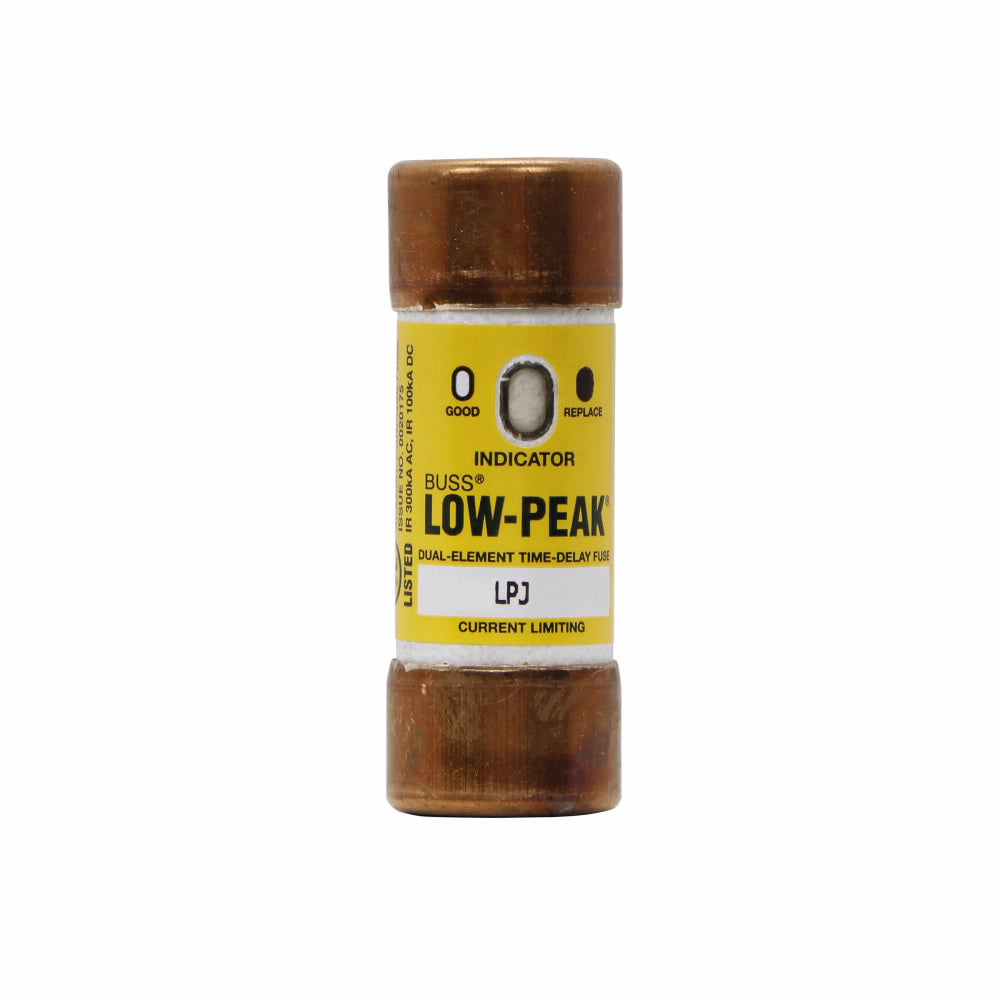

Bussmann LPJ-6SPI - Class J Time-Delay Fuse 6A 600V (300kA AIC Rating)

The Bussmann LPJ-6SPI is a Class J time-delay fuse designed to provide superior short-circuit and overload protection for industrial electrical systems. It features a 600V AC voltage rating with a 6A current rating, offering reliable circuit protection under demanding conditions. The fuse is constructed with a single-barrel design measuring 2-1/4 inches in length and 0.81 inches in diameter, weighing 1.18 lb for robust industrial use. It complies with CE, UL Special Purpose Guide JFHR, and CSA Class 1422-02 standards, ensuring adherence to rigorous safety requirements. This fuse is typically applied in motor branch circuits, transformers, and feeder circuits where high interrupting capacity and time-delay characteristics are essential for system protection.

Key Features & Specifications

• Type: Class J time-delay fuse, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 6A
• Dimensions: 2-1/4 inch length, 0.81 inch diameter
• Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• Applications: Motor branch circuits, transformers, feeder circuits
• AIC rating: 300kA@600V
• Class Rating: J
• Barrels: 1
• Weight: 1.18 lb
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712627481
• GTIN: 00051712627481
