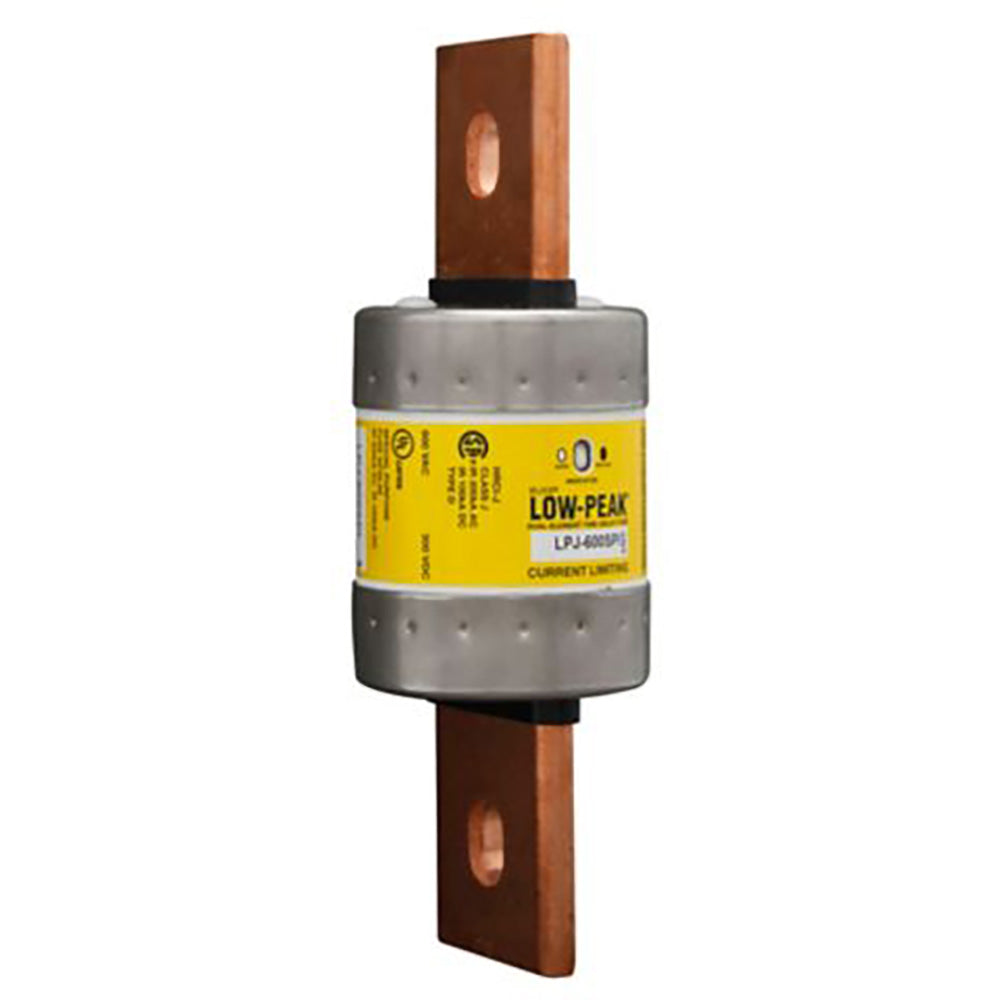

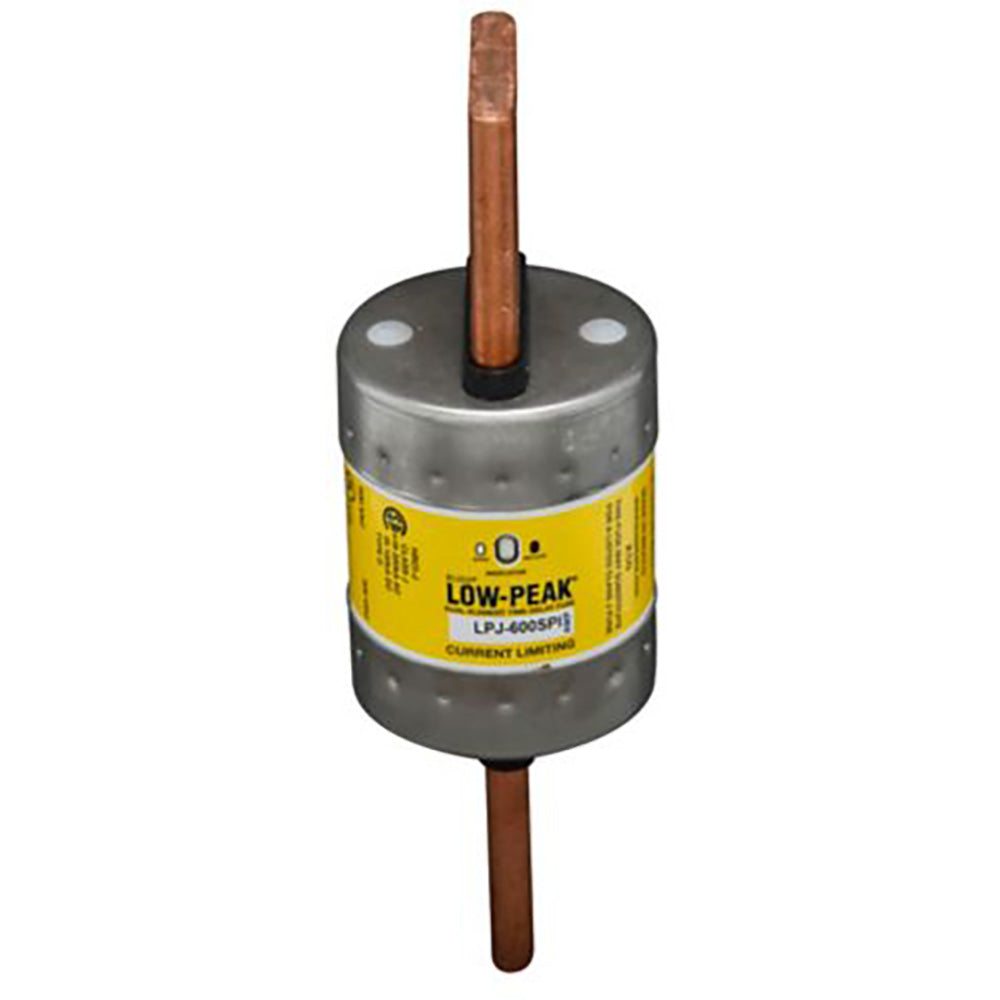

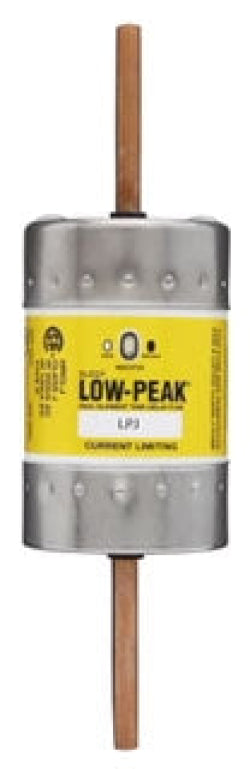

Eaton Bussmann LPJ-600SPI - Class J Time-Delay Fuse 600A (300kA AIC @600V)

Eaton Bussmann LPJ-600SPI is a Low-Peak time-delay fuse designed for comprehensive circuit protection in industrial power distribution systems. It features a 600A current rating and 600V voltage rating with a high 300kA interrupting capacity at 600VAC for reliable fault protection. The fuse construction includes a single-barrel design measuring 8 inches in length with a 2.6-inch diameter and 3 lb weight, utilizing Class J characteristics for time-delay performance. It meets CE/UL-Special Purpose Guide JFHR and CSA Class 1422-02 standards for safety and performance compliance. Typical applications include motor branch circuits, feeder circuits, and industrial control panels requiring coordinated protection schemes.

Key Features & Specifications

• Type: Low-Peak time-delay fuse, Class J, single barrel construction
• Voltage Rating: 600V AC
• Current Rating: 600A
• Dimensions: 8 inches length, 2.6 inches diameter
• Standards: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• Applications: Industrial power distribution, motor circuits, feeder protection
• AIC rating: 300kA@600V
• Class Rating: J
• Barrels: 1
• Weight: 3 lb
• Family: Low-Peak
• Country of Origin: Mexico

Product Identification

• UPC: 051712626484
• GTIN: 00051712626484
