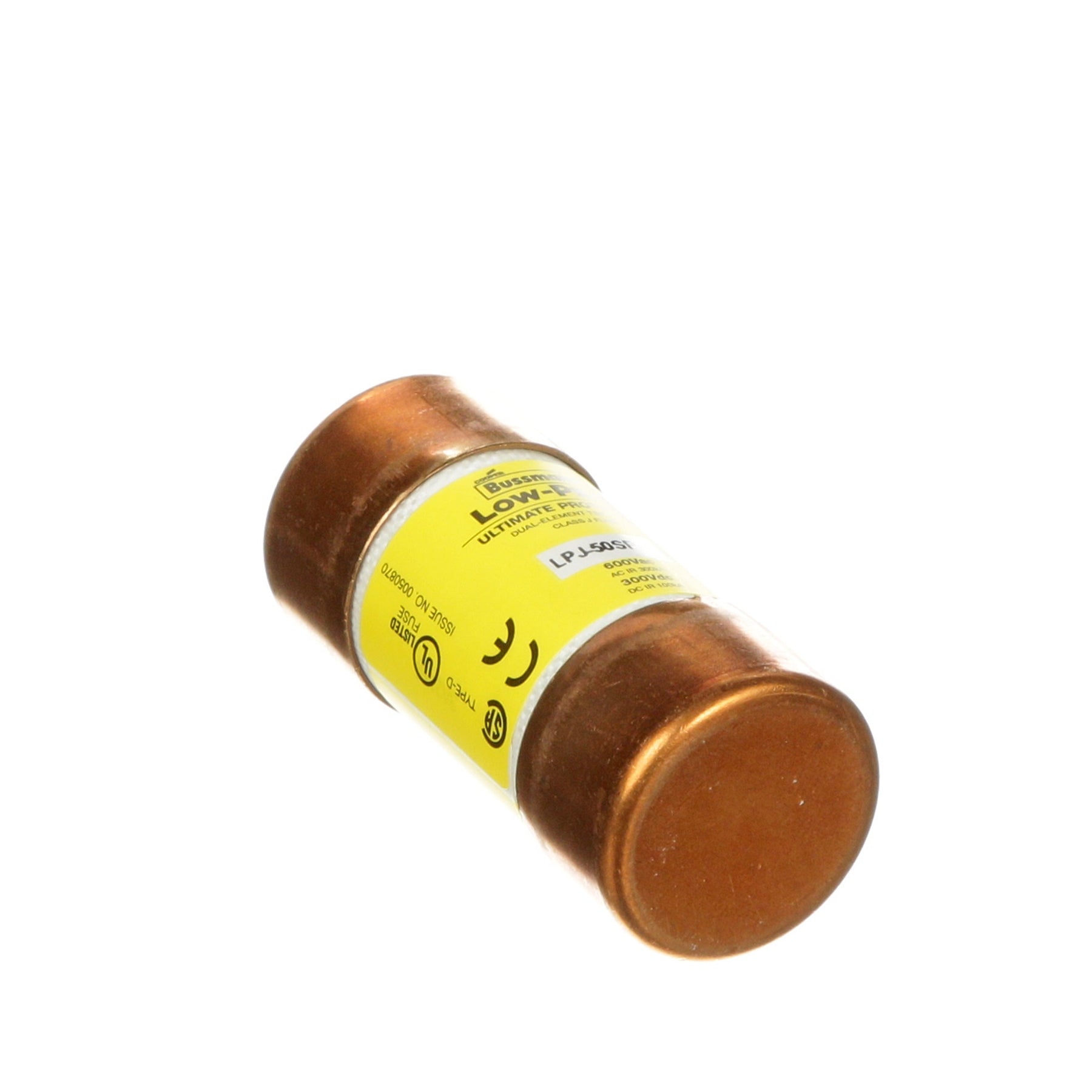

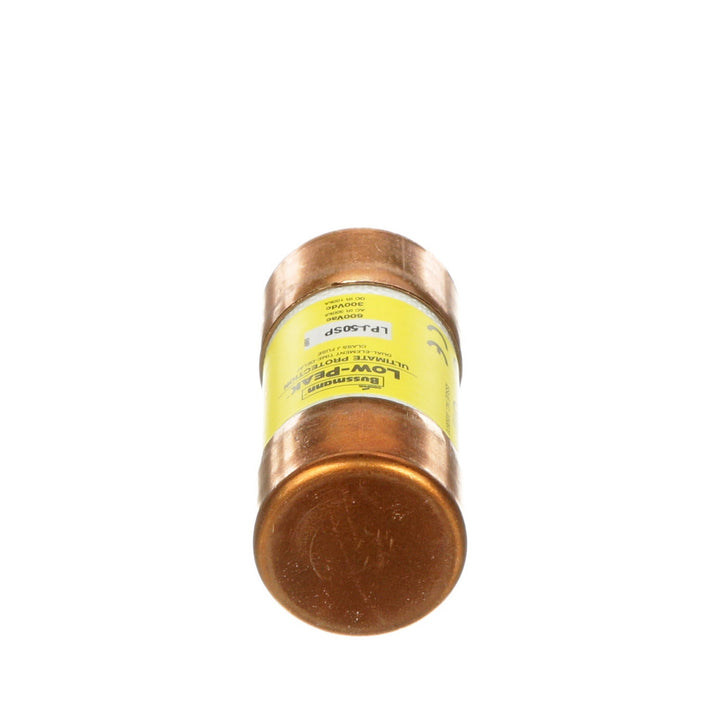

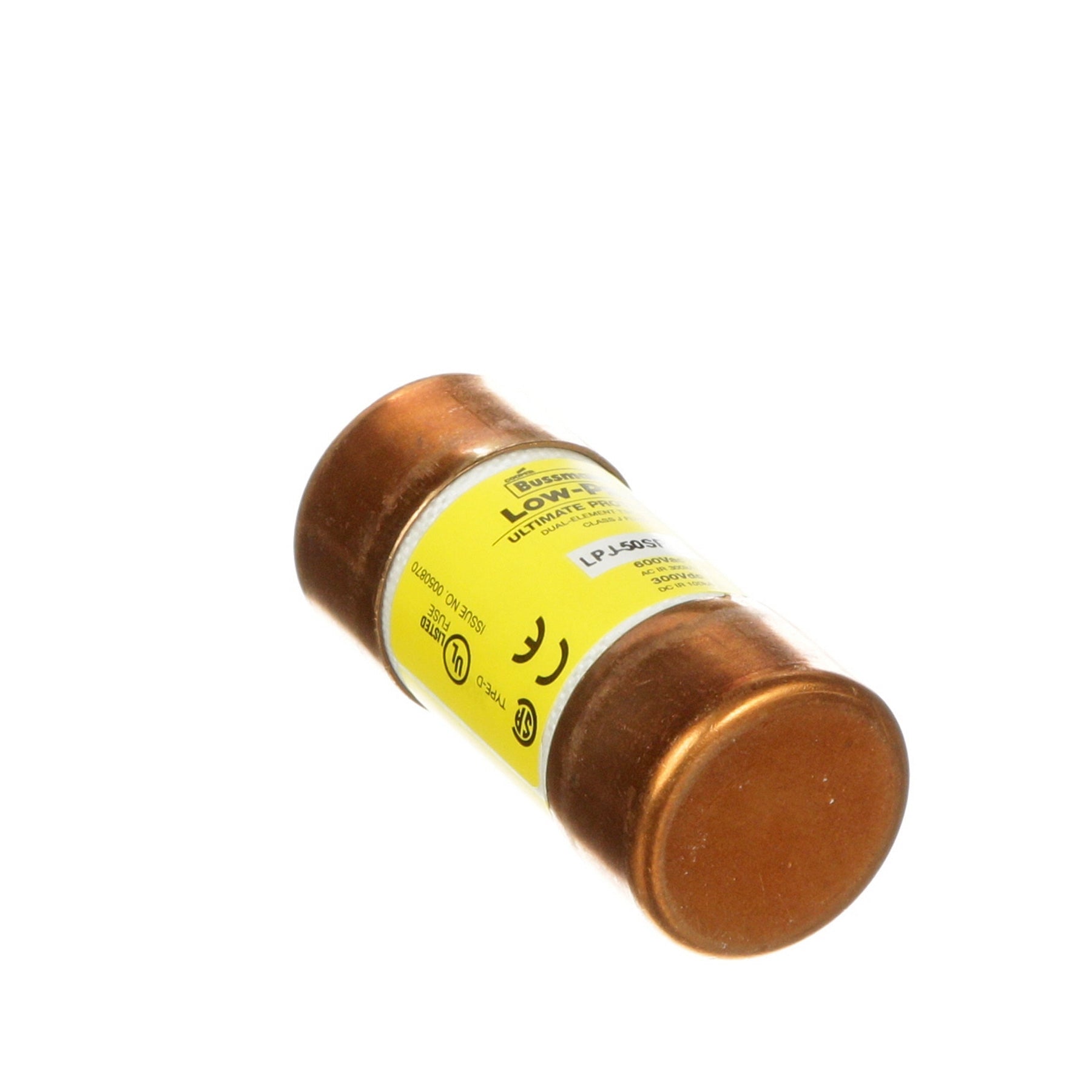

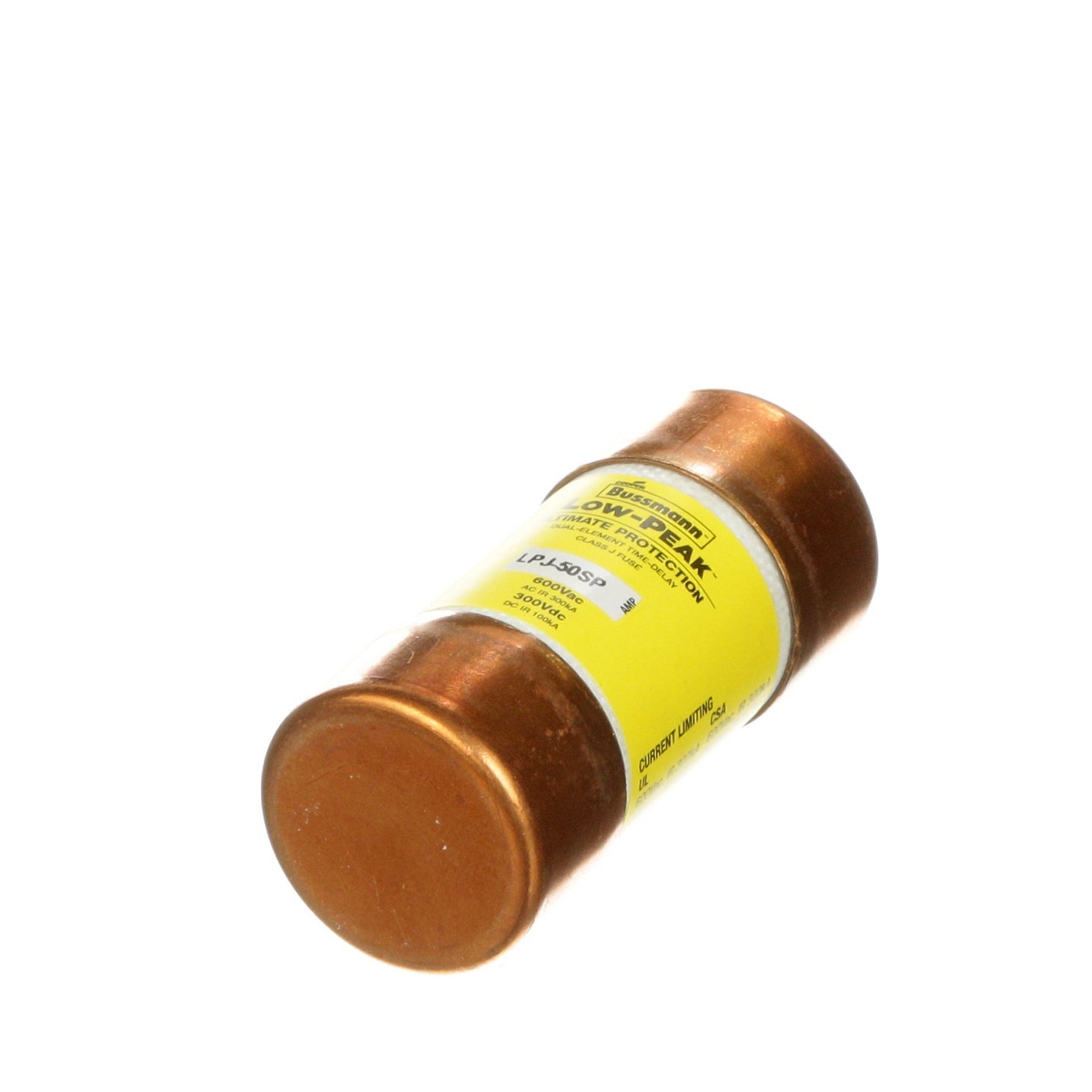

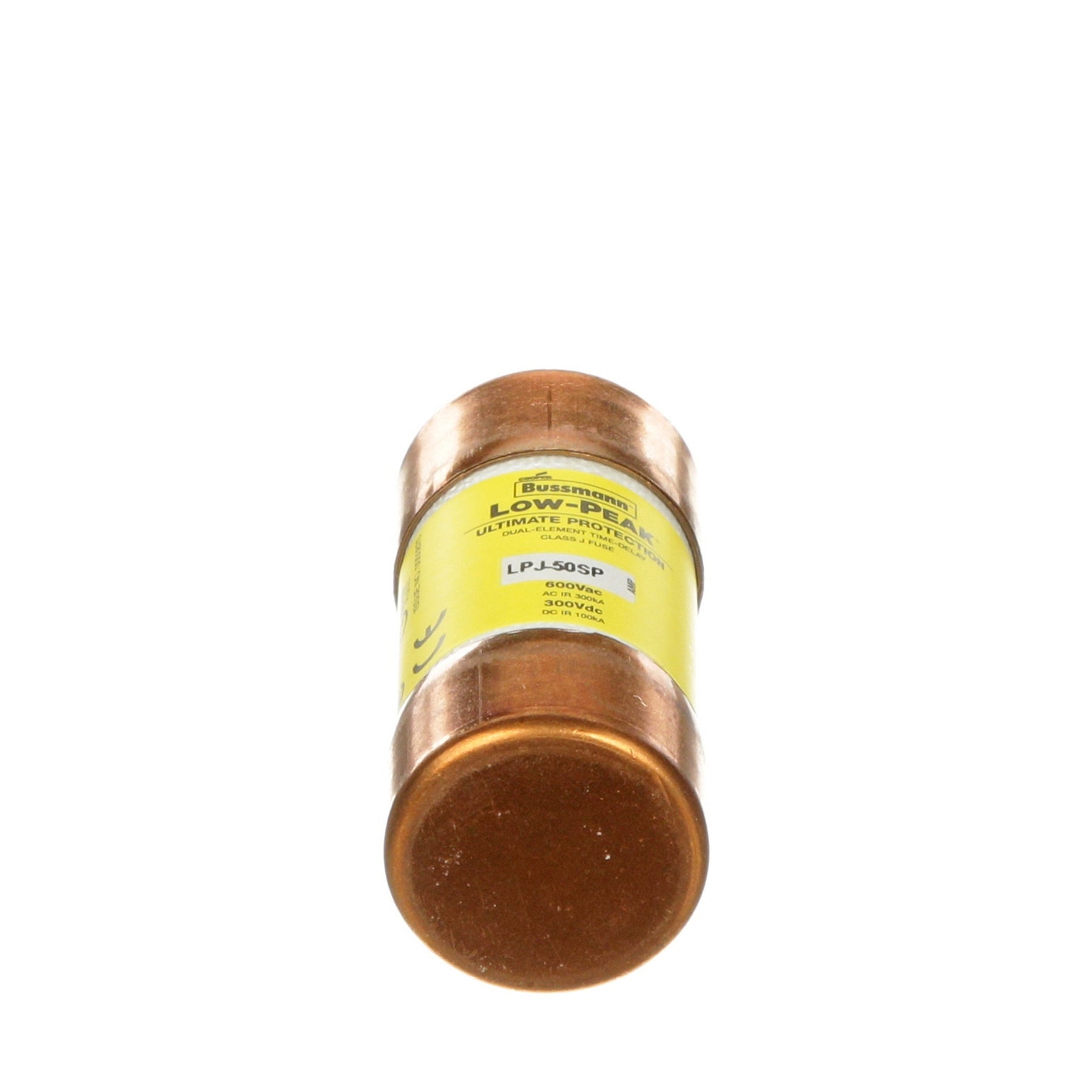

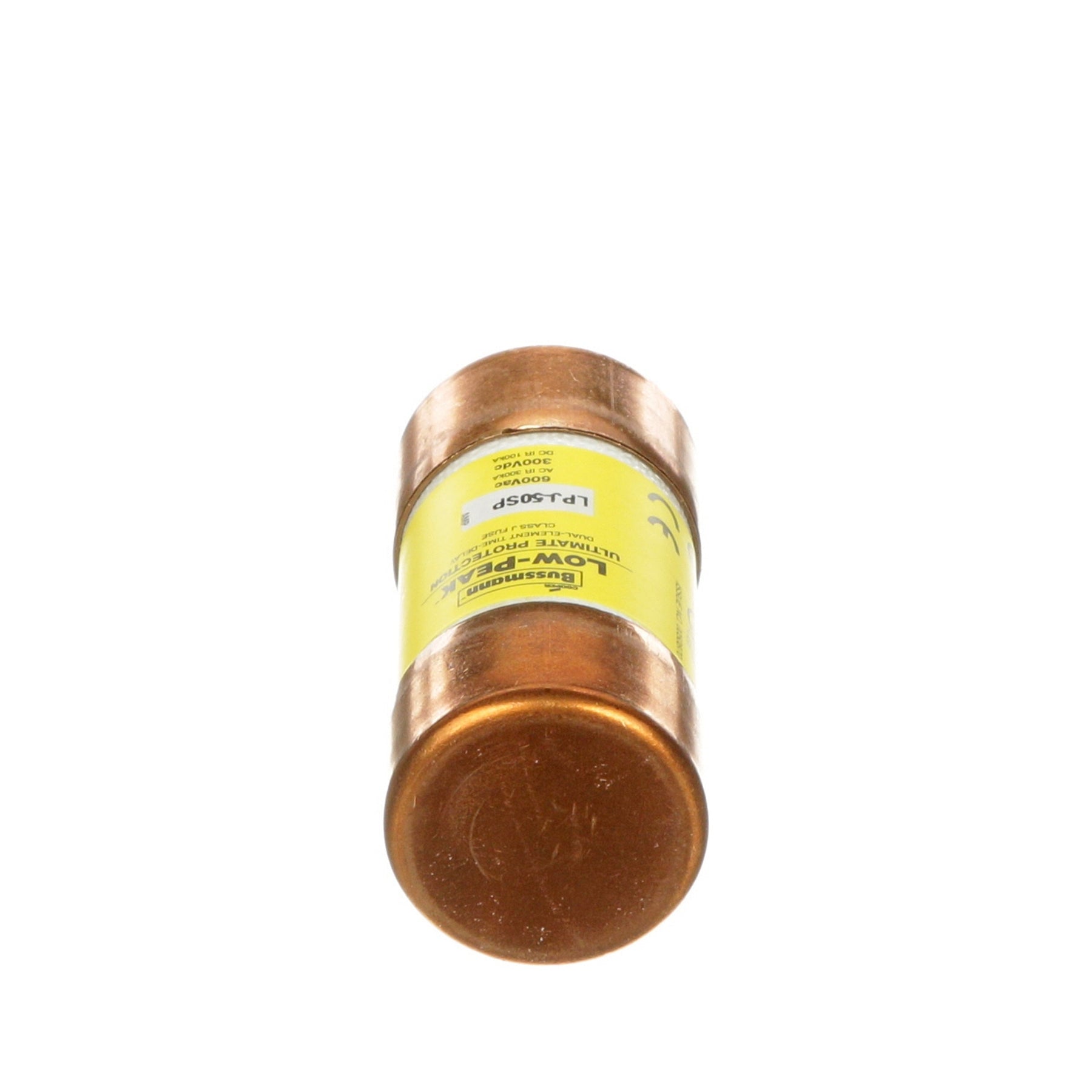

Bussmannn LPJ-50SP - Class J Time-Delay Fuse 50A 600V (300kA AIC)

Bussmannn LPJ-50SP is a Class J low-peak time-delay fuse designed for circuit protection in industrial electrical systems. Rated for 600V AC with a 50A current capacity, it features a 300kA interrupting rating at 600V for high-fault protection. The fuse measures 2-3/8" in length with a 1.06" diameter and utilizes a single-barrel construction with time-delay characteristics for motor circuit protection. UL/CSA-certified (Standard 1422-02) and CE-marked, it meets international safety requirements for special-purpose applications. Typical uses include protecting motors, transformers, and feeders where selective coordination is required.

Key Features & Specifications

• Type: Class J time-delay fuse with low-peak characteristics
• Voltage Rating: 600V AC
• Current Rating: 50A
• Dimensions: 2-3/8" length x 1.06" diameter
• Weight: 1 lb
• Standards: UL 248-8, CSA C22.2 No. 248.8
• Applications: Motor circuits, transformers, feeders
• Class Rating: J
• Barrels: 1
• Certification: CE/UL-Special Purpose Guide JFHR/CSA Class 1422-02
• AIC rating: 300kA@600V
• Country of Origin: Mexico

Product Identification

• UPC: 051712523356
• GTIN: 00051712523356
